INSTALLATION AND MAINTENANCE INSTRUCTIONS
SPECIFICATIONS
Normal Operating Voltage:
Stand-By Current:
Alarm Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Wire Gauge:
Maximum IDC Wiring Resistance:
Maximum IDC Voltage:
Maximum IDC Current:
BEFORE INSTALLING
If the modules will be installed in an existing operational system,
inform the operator and local authority that the system will be
temporarily out of service. Disconnect the power to the control
panel before installing the modules. This system contains static
sensitive components. Always ground yourself with a proper
wrist strap before handling any circuits so that static charges are
removed from the body. The housing cabinet should be metallic
and suitably grounded.
NOTICE: This manual should be left with the owner/user of
this equipment.
GENERAL DESCRIPTION
The XP10-M Ten Input Monitor Module is intended for use in an
intelligent alarm system. Each monitor module is intended to inter-
face between a control panel and normally open contact devices,
such as pull stations. A common SLC input is used for all modules,
and the initiating device loops share a common supervisory supply
and ground. Otherwise, each monitor operates independently from
the others. Each module has its own unique address.
A pair of rotary code switches is used to set the address of the
first module from 01 to 150. The remaining modules are auto-
matically assigned to the next nine higher addresses. Provisions
are included for disabling a maximum of two unused modules to
release the addresses to be used elsewhere. Each module also has
panel controlled green LED indicators. The panel can cause the
LEDs to blink, latch on, or latch off.
Included:
(6) 1 x 4 Terminal Blocks (2) 1
(4) Machine Screws (3) Shunts
(2) Nuts
N500-77-00
XP10-M Ten Input Monitor Module
15-32 VDC
3.5 mA
55 mA (assumes all ten LEDs solid on)
32°F to 120°F (0°C to 49°C)
10 to 93% Non-condensing
6.8˝H x 5.8˝W x 1.25˝D
CHS-6 Chassis; BB-25 Cabinet; BB-XP Cabinet; CAB-3 Series Cabinet; CAB-4 Series Cabinet
12-18 AWG
1500 Ohms
10.2 VDC
240µA (per device)
1 "
/ (32mm) Stand offs
4
(10) 47k Ohm
End of Line Resistors
C0202-00
Shipped on Board:
(1) Shunt in Class A/B position
(Shipped in Class B position, remove shunt for Class A)
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a
compatible Notifier system control panel.
COMPONENTS
Following are descriptions of the XP10-M mounting frameworks.
There are two mounting options for XP10-M modules:
• Up to six XP10-M modules can be installed on a CHS-6 in
a CAB-3 Series cabinet, CAB-4 Series cabinet or BB-25 cabinet.
• One or two XP10-M modules can be installed in a BB-XP cabi-
net.
Chassis
The CHS-6 chassis is used to mount XP10-M modules in a BB-25,
CAB-3 or CAB-4 Series cabinet. It accommodates up to six XP10-
M modules in a single cabinet row three modules wide and two
modules deep.

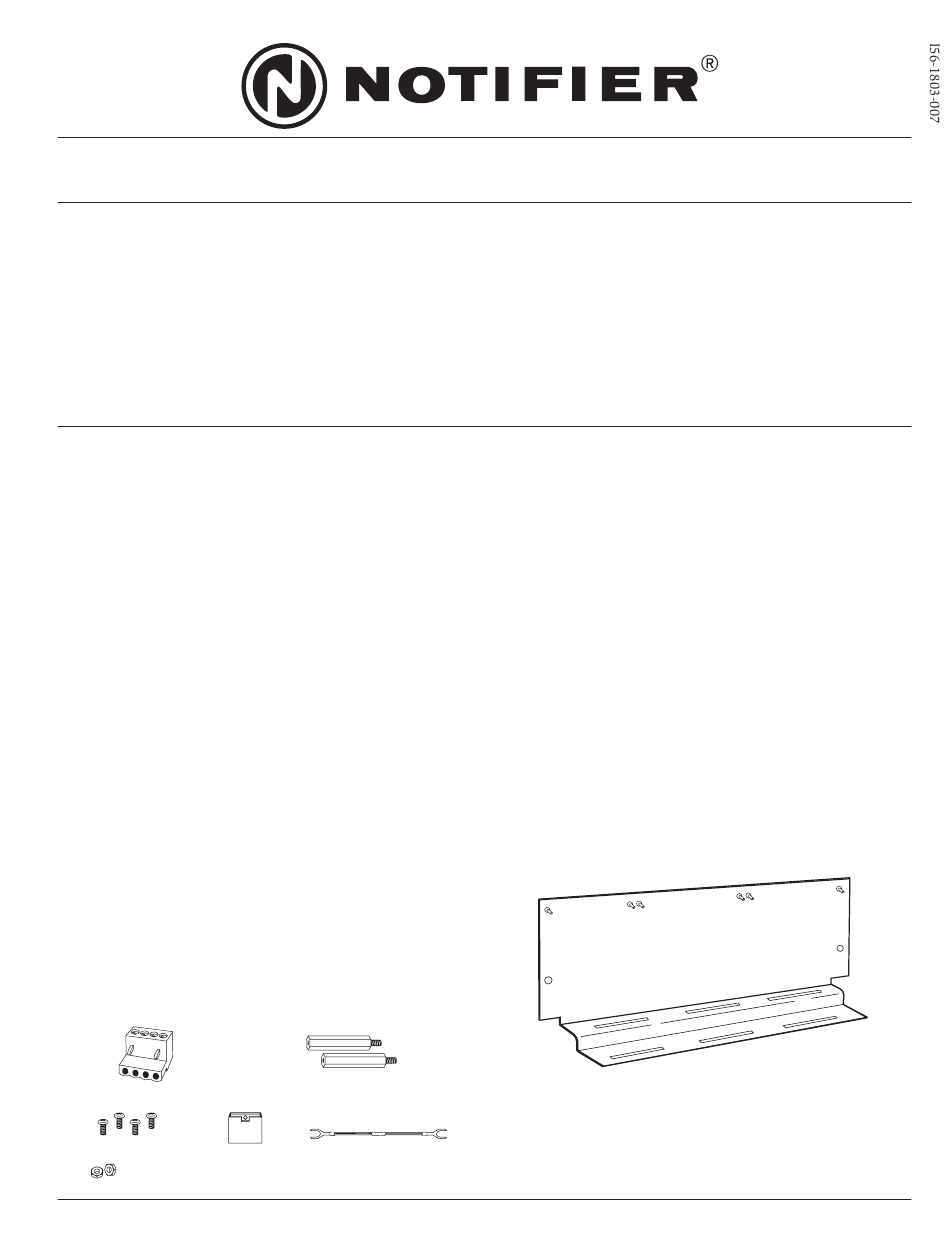

Figure 1. CHS-6 Chassis:

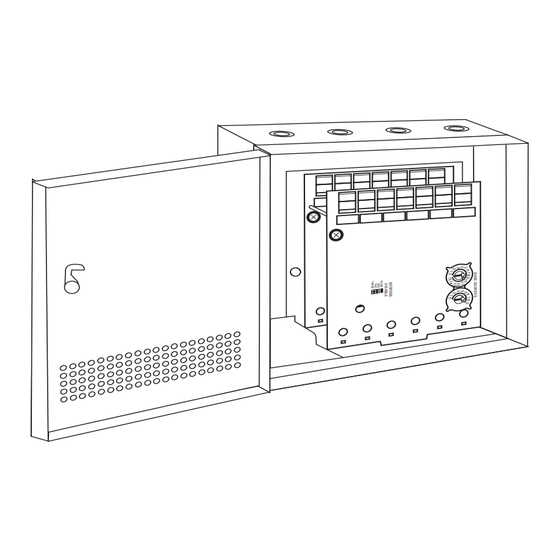

The BB-XP cabinet has a built-in chassis that will accommodate
one or two XP10-M modules.
1
