Notifier XP6-R Installation And Maintenance Instructions

Installation And Maintenance Instructions
SPECIFICATIONS
Normal Operating Voltage:
Stand-By Current:
Alarm Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Wire Gauge:
Relay Current:
CURRENT RATING
3 A
2 A
.9 A
.9 A
.5 A
1 A
.3 A
1.5 A
.7 A
2 A
All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed) state during
shipping. To ensure that the switch contacts are in their correct state, modules must be made to communicate with the panel before
connecting circuits controlled by the module.
BEFORE INSTALLING
If the modules will be installed in an existing operational system,
inform the operator and local authority that the system will be
temporarily out of service. Disconnect the power to the control
panel before installing the modules. This system contains static
sensitive components. Always ground yourself with a proper
wrist strap before handling any circuits so that static charges are
removed from the body. The housing cabinet should be metallic
and suitably grounded.
NOTICE: This manual should be left with the owner/user of
this equipment.
GENERAL DESCRIPTION
The XP6-R Six Relay Control Module is intended for use in an
intelligent alarm system. Each module is intended for Form-C
switching applications, which do not require wiring supervision
for the load circuit. A single isolated set of dry relay contacts is
provided for each module, which is capable of being wired for
either normally open or normally closed for each operation. Each
module has its own address. A pair of rotary code switches is
used to set the address of the first module from 01 to 154. The
remaining modules are automatically assigned to the next five
higher addresses. Provisions are included for disabling a maxi-
mum of three unused modules to release the addresses to be used
N500-78-00
XP6-R Six Relay Control Module
15-32VDC
1.45 mA
32 mA (assumes all six relays have been switched once and all six LEDs solid on)
32°F to 120°F (0°C to 49°C)
10 to 93% Non-condensing
6.8˝H × 5.8˝W × 1.0˝D
CHS-6 Chassis; BB-25 Cabinet; BB-XP Cabinet; CAB-3 Series Cabinets; CAB-4 Series Cabinets
12-18 AWG
30 mA/Relay Pulse (15.6 mS pulse duration) pulse under panel control
MAXIMUM VOLTAGE
30 VDC
30 VDC
110 VDC
125 VDC
30 VDC
30 VDC
125 VAC
25 VAC
70.7 VAC
25 VAC
WARNING
LOAD DESCRIPTION
Resistive
Resistive
Resistive
Resistive
Inductive (L/R=5ms)
Inductive (L/R=2ms)
Inductive (PF=.35)
Inductive (PF = .35)
Inductive (PF=.35)
Inductive (PF=.35)
elsewhere. Each XP6-R module also has panel controlled green
LED indicators. The panel can cause the LEDs to blink, latch on,
or latch off.
Contents include:
(6) 1 × 3 Terminal Blocks
(1) 1 × 4 Terminal Blocks
(2) 1 1 / ˝ (32mm) Stand offs
4
(4) Machine Screws
(2) Nuts
(1) S hunt (NOTE: For the disable position, not more than one
shunt shall be installed at the same time)
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a
compatible Notifier system control panel.
COMPONENTS

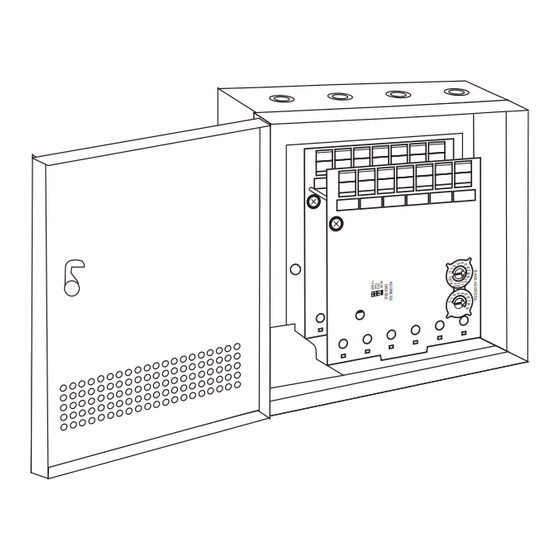

Following are descriptions of the XP6-R mounting frameworks.
There are two mounting options for XP6-R modules:
• U p to six XP6-R modules can be installed on a CHS-6 in a
CAB-3, CAB-4 or BB-25 cabinet
• One or two XP6-R modules can be installed in a BB-XP cabinet
1
12 Clintonville Road; Northford, CT 06472-1653; 203/484-7161
APPLICATION
Non-coded
Coded
Non-coded
Non-coded
Coded
Coded
Non-coded
Non-coded
Non-coded
Non-coded
I56-1804-008
