  • Page 1 Network Adaptor Module NAM-232 Document 50038 12/29/99 Revision: PN 50038:F ECN 99-521 www.PDF-Zoo.com...
  • Page 2 While a fire alarm system may lower insurance Fire Alarm System Limitations rates, it is not a substitute for fire insurance! An automatic fire alarm system–typically made up of smoke Heat detectors do not sense particles of combustion and detectors, heat detectors, manual pull stations, audible warn- alarm only when heat on their sensors increases at a prede- ing devices, and a fire alarm control with remote notification termined rate or reaches a predetermined level.
  • Page 3 Installation Precautions Adherence to the following will aid in problem-free installation with long-term reliability: WARNING - Several different sources of power can be con- Like all solid state electronic devices, this system may nected to the fire alarm control panel. Disconnect all sources operate erratically or can be damaged when subjected to light- of power before servicing.
  • Page 4: Table Of Contents

    2.6 Installing the NAM-232 in a CHS-4 Chassis ..................20 Figure 2.6 Mounting the NAM-232 in the CHS-4 Chassis ............20 2.7 Powering the NAM-232 From the MPS-24A or MPS-24AE Main Power Supply ......20 Table 2.1 Powering From the MPS-24A or MPS-24AE ..............20 2.8 NAM-232 Connections ........................21...
  • Page 5 Table of Contents 2.11 Connecting an AM2020/AFP1010 Through TPI-232 Modems to a NAM-232 ......27 Section 3 AFP-200 Programming Requirements ..............28 3.1 NOTI•FIRE•NET™ Channel Threshold Programming..............28 3.2 Node Address Programming ......................28 3.3 CCBE Zone Programming ........................29 3.4 CCBE Drill Programming .........................29 3.5 Additional Programming Requirements....................30...
  • Page 6: Section 1 General

    Related Documentation Section 1 General The Network Adaptor Module NAM-232 functions as an interface between the AFP-200, AFP- 300/AFP-400, or the AM2020/AFP1010 Fire Alarm Control Panels (FACPs) and the NOTIFIER fire alarm local area network, NOTI•FIRE•NET™. The NAM-232 is compatible with the following AFP-200, AFP-300/AFP-400 or AM2020/AFP1010 part numbers: •...
  • Page 7: Product Features

    Product Features General 1.2 Product Features The NAM-232 is available in either a wire or a fiber version. The following features are included with the NAM-232W: • Connects AFP-200, AFP-300/AFP-400 or AM2020/AFP1010 Fire Alarm Panels to NOTI•FIRE•NET™ • Supports two channels of twisted pair wire medium •...
  • Page 8: Product Description

    1.4 Product Description The following features are supported by the NAM-232: Acknowledge —The NAM-232 automatically acknowledges events at the local panel and transmits signals to the INA/NCS for network operator acknowledgment. This function is inoperative if an INA/NCS is not connected, or if the network is fragmented so that the INA/ NCS is disconnected from the NAM-232.
  • Page 9 NAM-232 will erase all CCBE information when connected to an AFP-200 that has a different node address. Use care to ensure that the NAM-232 is not separated from the matching AFP-200 panel during service and maintenance operations.
  • Page 10: Trouble Conditions/Ccbe Messages For Afp-300/Afp-400

    Receive connection from NOTI•FIRE•NET™ (both Port A and Port B) to the NAM-232F. • One of these messages (only when the NAM-232 has been configured for NFPA Style 7 operation or dual port monitoring): TROUBL IN SYSTEM NETWORK FAIL PORT A...
  • Page 11: Limitations Of The Am2020/Afp1010 With A (Nam-232)

    • Receive connection from NOTI•FIRE•NET™ (both Port A and Port B) to the NAM-232F. • These messages (only when the NAM-232 has been configured for NFPA Style 7 operation or dual port monitoring): TROUBL NETWORK COMMUNICATION LINK FAI PORT A...
  • Page 12: Diagnostic Indicators

    General Diagnostic Indicators 1.9 Diagnostic Indicators The NAM-232 has diagnostic indicators which aid in troubleshooting and assist the installer in connecting the system. Refer to Table 1.2 for a list of diagnostic indicators and their descriptions. Indicator Color Description RECON...
  • Page 13: Configuration Switches

    Configuration Switches General 1.10 Configuration Switches The NAM-232 must be configured using the switches detailed in Table 1.3 (refer to Figure 1.5 and Figure 1.6). SWITCH FUNCTION NETWORK DRILL OFF: pressing and holding the drill button on the local AFP-200/AFP-300/ AFP-400 only activates outputs on that specific AFP-200/AFP-300/ AFP-400.
  • Page 14: Figure 1.5 Network Adaptor Module-Wire (Nam-232W)

    General Configuration Switches When wired in a bus configuration, the terminating resistors (R69, Channel A) and (R70, Channel B) must be cut except for the first and last MIB/NAM-232/RPT. See the NOTI•FIRE•NET™ manual for network configuration information. Channel B ENABLE...

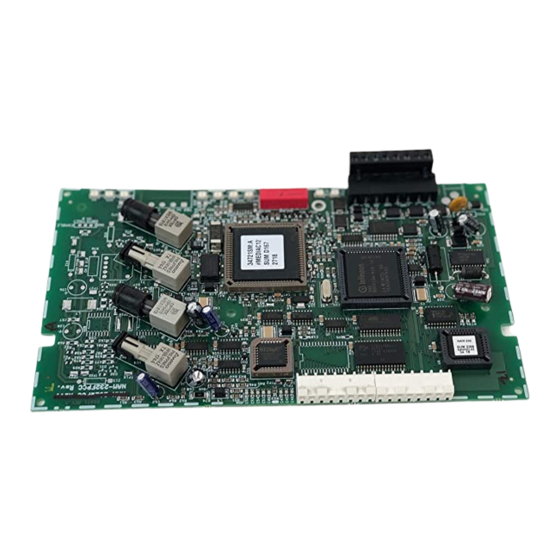

  • Page 15: Figure 1.6 Network Adaptor Module-Fiber (Nam-232F)

    Receive Channel B RCVDB Transmit Channel B RCVDA STATA PULSE TROUBLE DIP Switch SW1 ICA-4/4L Earth Connector EIA-232 Transmit EIA-232 Receive Common Ground Ground +24 VDC +24 VDC T B 1 Figure 1.6 Network Adaptor Module-Fiber (NAM-232F) NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 16: Section 2 Installing The Nam-232

    The AFP-200 motherboard must first be removed and set aside while the NAM-232 is mounted in the rear of the cabinet. The NAM-232 is mounted to the four PEM studs in the cabinet using the holes indicated in Figure 2.1. The AFP-200 motherboard may then be replaced and fastened using the four mounting screws.
  • Page 17: Powering The Nam-232 From The Afp-200

    AFP-200 cabinet to mount the NAM-232. The AFP-200 Motherboard must first be removed and set aside while the NAM-232 is mounted on the four standoffs in the cabinet using the holes and screw indicated in Figure 2.2. The AFP-200 Motherboard may then be replaced and fastened using the four mounting screws.
  • Page 18: Installing The Nam-232 In The Afp-300/Afp-400

    2.4 Powering the NAM-232 From the MPS-400 Power Supply When the NAM-232 is mounted in an AFP-300/AFP-400 cabinet, power must be wired from the MPS-400 to the NAM-232 (refer to Table 2.2). Refer to Figure 2.4 for a wiring diagram which details this connection.
  • Page 19: Installing The Nam-232 In An Ica-4/4L Chassis

    AFP-400/AM2020/AFP1010 to the NAM-232. The NAM-232 mounts in a similar manner as the LIB, CPU, and SIB (refer to Figure 1). Align the cutouts in the NAM-232 board with the tabs of the ICA-4/4L chassis and slide the NAM-232 into position until the male pins of the interconnect chassis board are engaged.
  • Page 20: Installing The Nam-232 In A Chs-4 Chassis

    This EIA-232 serial communications loop is used to connect the AFP-200/ AFP-300/AFP-400/AM2020/AFP1010 to the NAM-232. The NAM-232 may be mounted in either the left or right-hand position of a CHS-4. The NAM-232 is mounted by using four PEM studs on the CHS-4 chassis. The necessary mounting hardware is included with the NAM-232.
  • Page 21: Nam-232 Connections

    NAM-232 Connections Installing the NAM-232 2.8 NAM-232 Connections Figure 2.6 through Figure 2.15 depict the point-to-point connections between NAM-232s in combination with other NAM-232s, MIBs and RPTs. When using twisted-pair wiring, polarity need not be observed. NAM-232W NAM-232W Figure 2.6 NAM-232W to NAM-232W...
  • Page 22 Installing the NAM-232 NAM-232 Connections RPT-WF NAM-232W Figure 2.8 NAM-232W to RPT-WF Connections NAM-232W MIB-W Figure 2.9 NAM-232W to MIB-W NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 23 NAM-232 Connections Installing the NAM-232 NAM-232W MIB-WF Figure 2.10 NAM-232W to MIB-WF Connections NAM-232F NAM-232F Figure 2.11 NAM-232F to NAM-232F Connections NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 24 Installing the NAM-232 NAM-232 Connections RPT-F NAM-232F Figure 2.12 NAM-232F to RPT-F NAM-232F RPT-WF Figure 2.13 NAM-232F to RPT-WF Connections NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 25 NAM-232 Connections Installing the NAM-232 MIB-F NAM-232F Figure 2.14 NAM-232F to MIB-F MIB-WF NAM-232F Figure 2.15 NAM-232F to MIB-WF Connections NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 26: Connecting The Nam-232 To An Afp-200

    Note: When the EIA-232 connection exceeds 50 feet (15.24 m), TPI-232 modems must be used. Refer to the Telephone/ Panel Interface (TPI-232) manual. The use of a printer or CRT in the AFP-200 is not permitted when the NAM-232 is present. AFP-200...
  • Page 27: Connecting An Am2020/Afp1010 Through Tpi-232 Modems To A Nam-232

    NAM-232 Refer to the Telephone/Panel Interface (TPI-232) manual for information on connecting the AM2020/AFP1010 through TPI-232 modems to a NAM-232. The use of a CRT in the AM2020/ AFP1010 is not permitted when the NAM-232 is present. NAM-232 50038:F 12/29/99...
  • Page 28: Section 3 Afp-200 Programming Requirements

    The current node address will be given by ‘NNN’. Enter a non-zero node address between the specified range, and press <ENTER> when complete. If a NAM-232 on a system is replaced, the node address for that panel must be reprogrammed.
  • Page 29: Ccbe Zone Programming

    OR N***Z*** To delete network node and zone numbers, an asterisk must be entered instead of the number. If a NAM-232 on a system is replaced, the CCBE for that panel must be reprogrammed. 3.4 CCBE Drill Programming The Drill function on an AFP-200 can be programmed to activate when a zone on another NOTI•FIRE•NET™...
  • Page 30: Additional Programming Requirements

    OR N***Z*** To delete network node and zone numbers, an asterisk must be entered instead of the number. If a NAM-232 on a system is replaced, the CCBE for that panel must be reprogrammed. 3.5 Additional Programming Requirements Program the AFP-200 for LocT mode in system function programming. Do not use an AFP-200 CMX device type “blank”...
  • Page 31: Section 4 Afp-300/Afp-400 Programming Requirements

    AFP-300/AFP-400 Programming Requirements Section 4 AFP-300/AFP-400 Programming Requirements When adding an AFP-300/AFP-400 with a NAM-232 to NOTI•FIRE•NET™, certain programming must be performed in the AFP-300/AFP-400. The AFP-300/AFP-400 must be programmed with network channel thresholds, node address, LocT (Local Terminal), and (if desired) CCBE.
  • Page 32: Node Address Programming

    Note: Refer to the NOTI•FIRE•NET™ manual prior to selecting channel thresholds. 4.3 Node Address Programming The AFP-300/AFP-400 must be programmed with a node address before the NAM-232 will connect to NOTI•FIRE•NET™. Navigate the cursor to the second line and the default Node:000 will be highlighted.
  • Page 33: Ccbe Drill Programming

    When the drill function is activated on an AFP-300/AFP-400, signals can be silenced only through a reset or signal silence. In the example shown in Figure 4.3, the Drill function of the AFP-300/AFP-400 will activate when Zone 17 in Node 150 is activated. NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 34: Additional Programming Requirements

    If a non-fire input is activated while a 300/400 is in programming mode, or just after leaving programming mode, its activation will be reported over NOTI•FIRE•NET. • When changing an AFP-400’s panel label, the panel must be powered down to transfer this information to the NAM-232. NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 35: Section 5 Programming

    ALL SYSTEMS NORMAL 11:00A 09/9/00 Node Address In addition, the NAM-232 must be enabled by selecting it in the Additional Parameters options in Systems Programming. The devices with the following Software Type I.D.s will not report on NOTI•FIRE•NET™. • SACM: MMX Monitor Module used to monitor a security device.
  • Page 36: Section 6 Afp-200, Afp-300/Afp-400 Message Translations

    INA/NCS as devices on Loop 3 (which does not physically exist). For a complete list of message translations and specific information on AFP-200 and AFP-300/ AFP-400 addressable device types, refer to the AFP-200, AFP-300/AFP-400, INA, and NCS manuals. NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 37 AM2020/AFP1010 Programming Requirements AFP-200, AFP-300/AFP-400 Message Translations NOTES NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 38 AFP-200, AFP-300/AFP-400 Message Translations AM2020/AFP1010 Programming Requirements NOTES NAM-232 50038:F 12/29/99 www.PDF-Zoo.com...
  • Page 39 ® and service. For products not under NOTIFIER manufacturing date-stamp control, the warranty is eighteen (18) months from date of original purchase by NOTIFIER ® distributor unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply. This warranty is void if the product is altered, repaired or serviced by anyone other than NOTIFIER ®...
  • Page 40 World Headquarters One Fire-Lite Place, Northford, CT 06472-1653 USA 203-484-7161 • Fax 203-484-7118 www.notifier.com www.PDF-Zoo.com...
