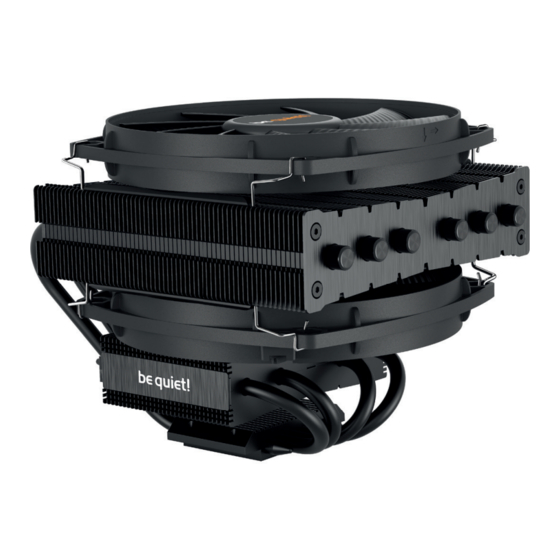

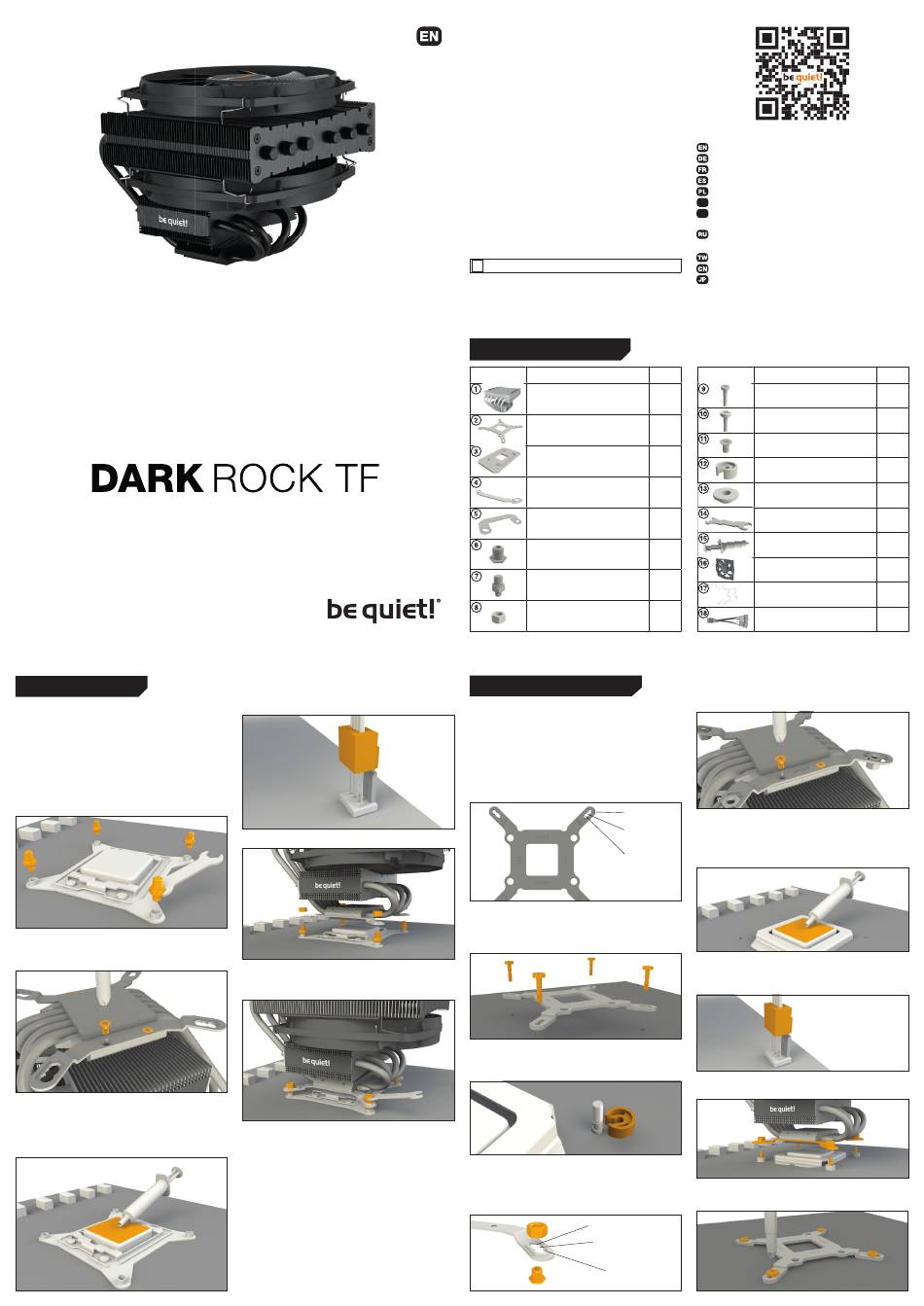

BE QUIET! DARK ROCK TF Manual

Intel: LGA 2011 (-3) square ILM / LGA 2066

General

We recommend mounting the cooler outside the PC case.
The following parts are needed for this:
1x be quiet! Dark Rock TF CPU cooler (1), 2x Intel mounting
brackets (4), 4x spacer nuts (7), 4x hexagonal nuts (8), 4x
M3x3 screws (11), 1x hexagonal wrench (14), 1x thermal paste
(15), fans (16), fan clips (17), Y cable (18)
First screw the spacer nuts (7) onto the threads of the socket
frame. Use the hexagonal wrench (14) for this.
Installation of the mounting brackets
Attach the two Intel mounting brackets (4) to the underside of
the CPU cooler using the M3x3 screws (11).
Mounting the CPU cooler
First remove the protective foil from the underside of the
cooler. Spread the thermal paste (15) on the surface of the
CPU. The amount supplied is suffi cient for one or two
applications.
Use the fan clips (17) to mount the fans (16) with the logo
facing upwards on the rubber inserts and connect them
with the Y cable (18) to the CPU fan connector on the
motherboard.
Position the cooler over the CPU.
Place the hexagonal nuts (8) over the spacer nuts (7) and
progressively tighten these in a crosswise manner until fi rm
using the hexagonal wrench (14).
Introduction: Thank you for deciding to purchase a be quiet!
product. The following instructions will guide you through the
installation process. If you do encounter installation problems,
please don't hesitate to contact our customer services by
mailing service@bequiet.com. Please note that be quiet!
cannot accept liability for damage caused by compatibility
problems.
Warranty:
• 3 years manufacturer guarantee for consumers (original
purchase from authorized be quiet! dealers only)
• Guarantee work can only be processed with an included
copy of the purchase receipt from an authorized be quiet!
dealer
• Manipulation and structural changes of any kind as well
as damages through external mechanical forces lead to a
complete voiding of the guarantee
• Our General Warranty Conditions apply, which can be
viewed on bequiet.com
Listan GmbH . Wilhelm-Bergner-Straße 11c . 21509 Glinde
Germany
For further information contact us via e-mail:
service@bequiet.com
!
We recommend removal of the cooler prior to transportation.

SCOPE OF DELIVERY

Part name
be quiet! Dark Rock TF cooler
Intel backplate
AMD backplate
Intel mounting brackets
Short AMD mounting brackets
Hexagonal nuts with sleeve
Spacer nuts
Spacer nuts
Intel: LGA 1200 / 775 / 1150 / 1151 / 1155 / 1156 / 1366
General
With preassembled motherboards we recommend installing
the cooler inside the PC case over the motherboard cutout.
The following parts are needed for this:
1x be quiet! Dark Rock TF CPU cooler (1), 1x Intel backplate (2),
2x Intel mounting brackets (4), 4x hexagonal nuts with sleeve (6),
4x hexagonal nuts (8), 4x M3x16 screws (9), 4x M3x3 screws (11),
4x C-profi le spacers (12), 1x hexagonal wrench (14), 1x thermal
paste (15), fans (16), fan clips (17), Y cable (18)
1366
1200, 1150, 1151,
1155, 1156
775
(Bottom view)
Affi xing the backplate
Position the Intel backplate (2) on the rear side of the
motherboard. Then insert the M3x16 screws (9) through the
drill holes situated on the rear side of the backplate.
Fasten the backplate on the front side of the motherboard
using the C-profi le spacers (12) by pressing these onto the
notches in the M3x16 screws (9) until they click in.
Assembly Of The Mounting Brackets
Insert the hexagonal nut with sleeve (6) from below through
each Intel mounting bracket (4) and screw together from
above with the hexagonal nuts (8). Use the hexagonal wrench
(14) for this.
775
1200, 1150, 1151,
1155, 1156
1366
www.bequiet.com/bk020
» Product information for this CPU cooler
» Produktinformationen zu diesem CPU-Kühler
» Informations produit pour ce système de refroidissement
» Información del producto para este refrigerador de CPU
» Informacje produktowe dla tego coolera CPU
» Engelstalige productinformatie voor deze processorkoeler
NL
» Produktinformation för den här processorkylaren, på
SE
engelska
» Подробная информация о данном кулере для
процессора
» 此CPU散熱器的產品資訊
» 此CPU散热器的产品信息
» 製品情報 （クーラー）
09/2020
Quantity Part name
M3x16 screws
1
AMD M3x15 screws
1
M3x3 screws
1
C-profi le spacers
2
AMD washers
Hexagonal wrench
2
Thermal paste
4
Fans
4
Fan clips
4
Y cable

Installing of the mounting brackets

Attach the two Intel mounting brackets (4) to the underside of
the CPU cooler using the M3x3 screws (11).
Mounting the CPU cooler
First remove the protective foil from the underside of the
cooler. Spread the thermal paste (15) on the surface of the
CPU. The amount supplied is suffi cient for one or two
applications.
Use the fan clips (17) to mount the fans (16) with the logo
facing upwards on the rubber inserts and connect them
with the Y cable (18) to the CPU fan connector on the
motherboard.
Position the cooler so that it is possible to attach the cooler by
screwing together the M3x16 screws (9)
on the rear side of the motherboard into the hexagonal nuts
with sleeve (6) attached to the cooler.
Quantity
4
4
4
4
4
1
1
2
4
1
