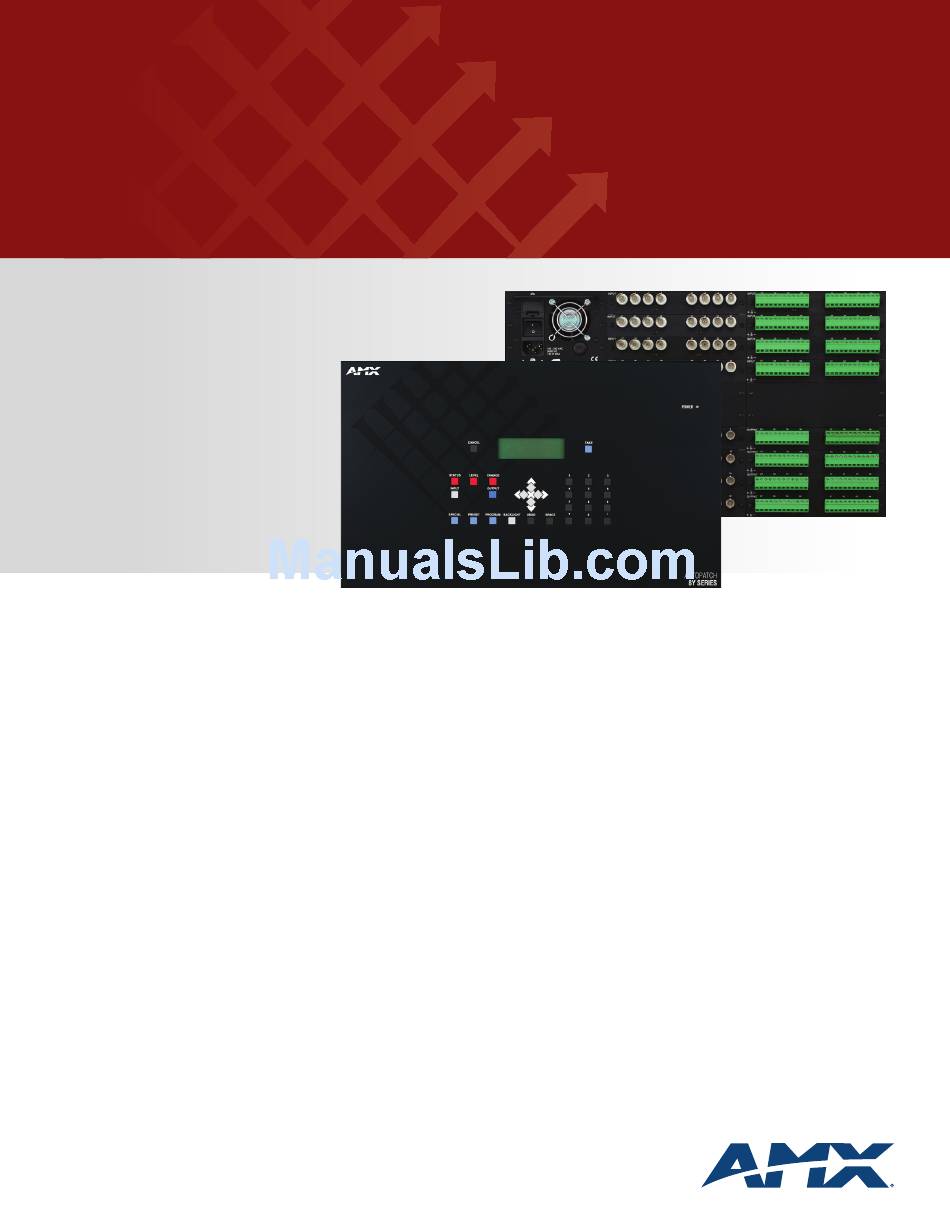

AMX AutoPatch 8Y-3000 Specifications

AutoPatch Matrix Switchers
8Y-3000
Modular
analog matrix switcher
The 8Y-3000 is a dependable, high-performance audio video routing solution for large
signal routing applications. It is a trusted cornerstone in many sports facilities, entertain-
ment venues and mission critical command-control centers.
ULTRA-FLAT RESPONSE
The video frequency response in the 8Y-3000 is a tight +/- 3dB, unlike other manufacturers who specify
only -3 dB to allow for the use of excessive peaking, damaging the signal, to record a wider bandwidth.
This ensures that the video quality of the source signal is maintained throuhout the facility; even in a fully-
loaded worst case scenario.
ROBUST CONTROL OPTIONS AND FEATURES
All models maintain AutoPatch's superior performance specifciations, multiple control options and pro-
fessional features.
• Ultra-Flat Resonse
• RS-232 / 422 control port; simple BCS serial control protocol
• Choice of front panel control or blank front panel
• Optional TCP/IP control via APWeb
• Virtual Matrix technology allows endless possible breakaway and "signal follow signal" user de`
fined routing scenarios
• Groupings, macros, and global and local presets
• Optional SYNC input for vertical interval switching
• Linking enclosures allow for a full 64x64 configuration of each available signal type in the
same system
8 Y- 3 0 0 0
I/O RANGE
8x8 through 64x64 in increments of 8 inputs and/
or outputs
AVAILABLE SIGNAL TYPES
Composite, S-video, Y/c
HDTV, Y/Pb/Pr, YUV
RGB, RGsB, RGBS, RGBHV
Mono audio, Stereo audio
S/PDIF, AES 75 Ω*
*S/PDIF and AES 75 Ω digital audio can be routed
via composite video boards with bnc connections
D ATA S H E E T
