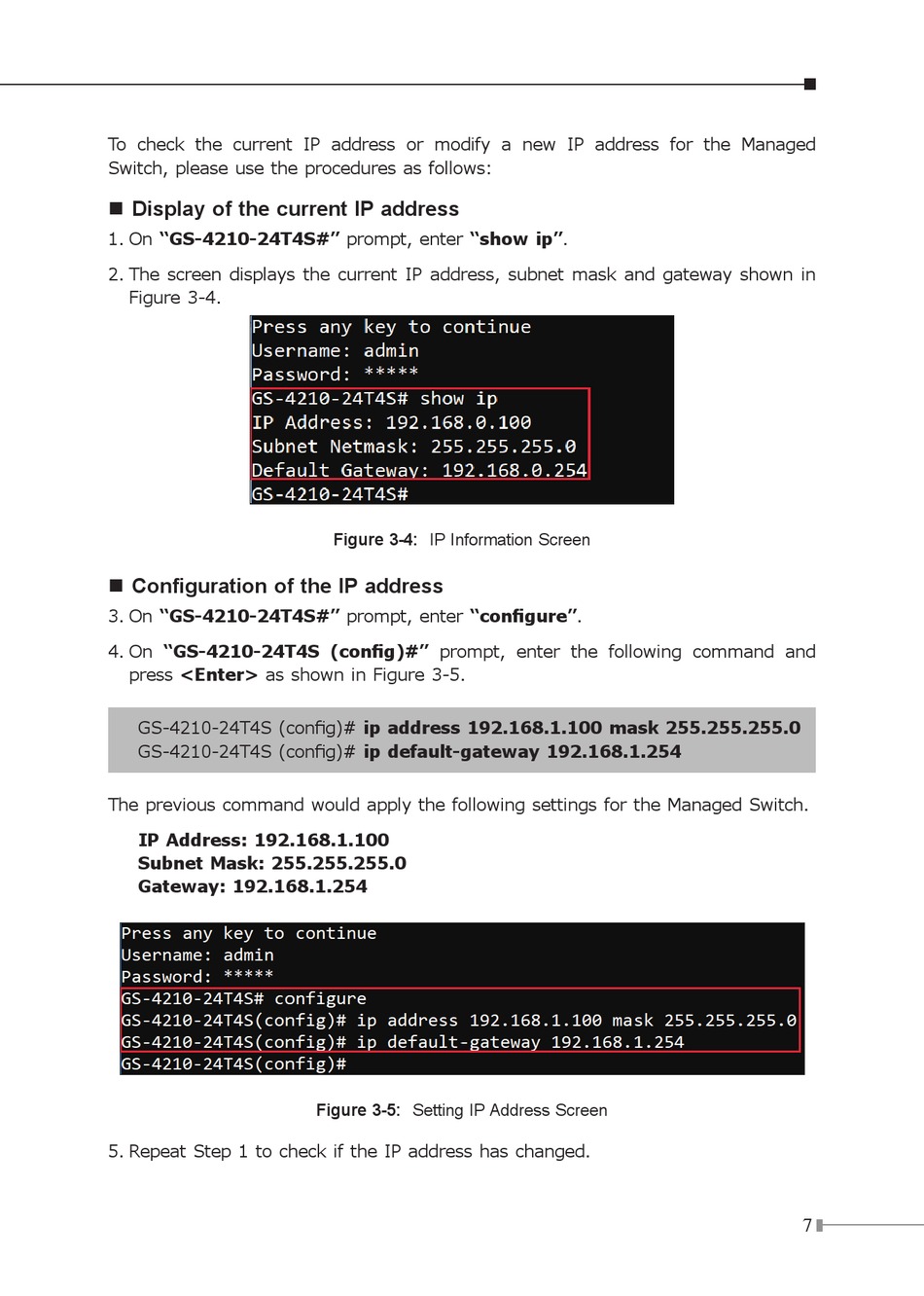

Planet Networking & Communication GS-4210-16T2S Quick Installation Manual page 7

To check the current IP address or modify a new IP address for the Managed
Switch, please use the procedures as follows:
 Display of the current IP address
1. On "GS-4210-24T4S#" prompt, enter "show ip".
2. The screen displays the current IP address, subnet mask and gateway shown in
Figure 3-4.
 Configuration of the IP address
3. On "GS-4210-24T4S#" prompt, enter "configure".
4. On "GS-4210-24T4S (config)#" prompt, enter the following command and
press <Enter> as shown in Figure 3-5.
GS-4210-24T4S (config)# ip address 192.168.1.100 mask 255.255.255.0
GS-4210-24T4S (config)# ip default-gateway 192.168.1.254
The previous command would apply the following settings for the Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
5. Repeat Step 1 to check if the IP address has changed.
Figure 3-4: IP Information Screen
Figure 3-5: Setting IP Address Screen
