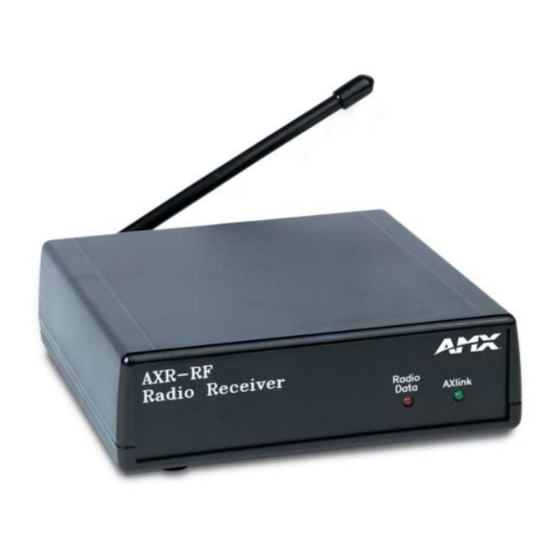

AMX Viewpoint AXR-RF Instruction Manual

Rf receiver
Hide thumbs Also See for Viewpoint AXR-RF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
instruction manual
AXR-RF
RF Receiver
C on t ro l Pa n el A c c e s s o rie s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viewpoint AXR-RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX Viewpoint AXR-RF

Summary of Contents for AMX Viewpoint AXR-RF

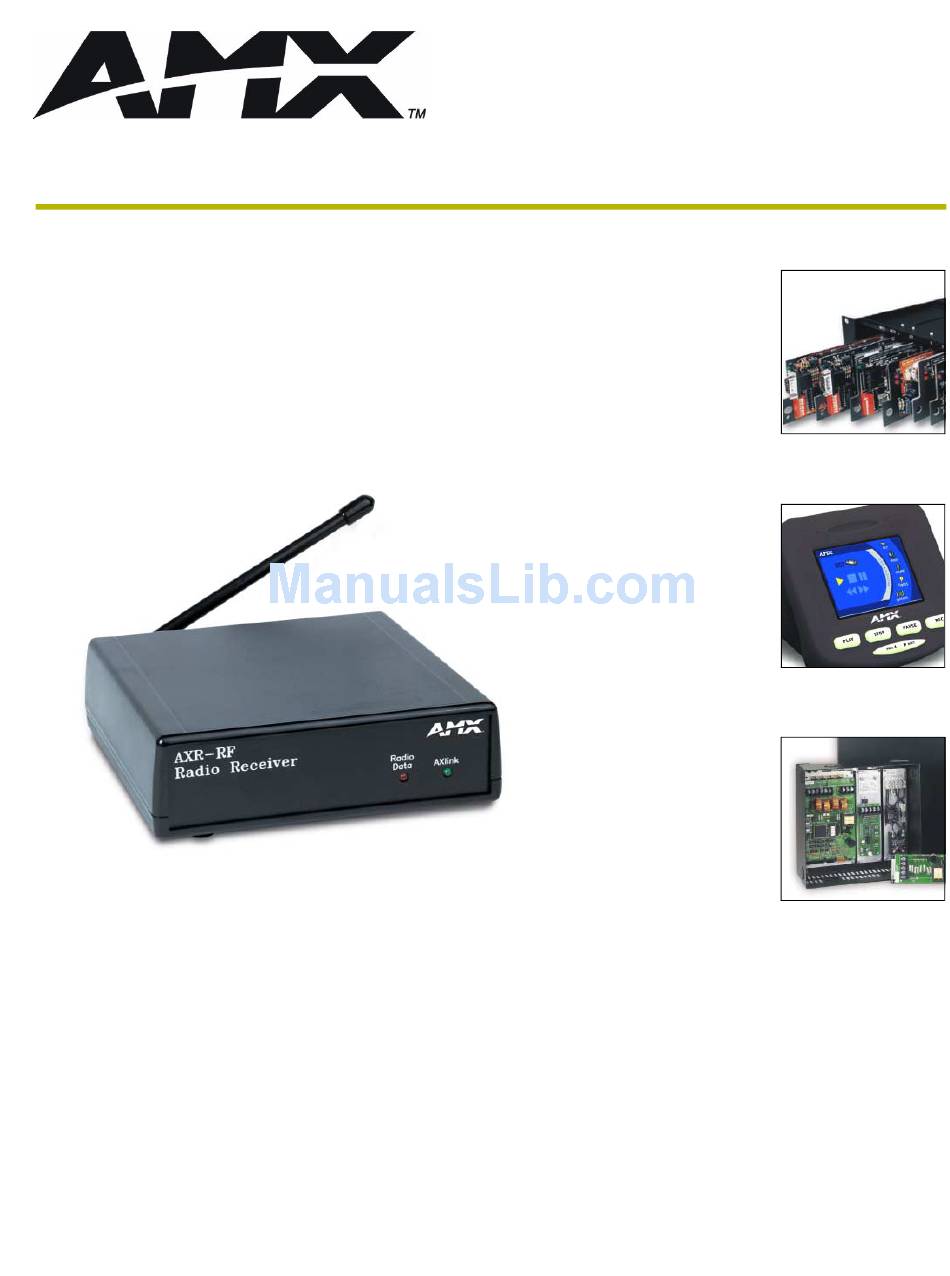

  • Page 1 instruction manual AXR-RF RF Receiver C on t ro l Pa n el A c c e s s o rie s...
  • Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.

  • Page 3: Table Of Contents

    Table of Contents Introduction ...1 Installation ...3 Configuring the AXR-RF... 3 Setting the DIP Switch... 3 Setting the RF Validation Level ... 3 Wiring Guidelines ... 4 Wiring the AXR-RF... 4 Using the AXlink 4-pin connector for data and power ... 4 Using the AXlink 4-pin connector with an external ±12 VDC power supply ...
  • Page 4 Table of Contents AXR-RF RF Receiver...

  • Page 5: Product Information

    1.5" x 5.09" x 5.27" (3.81 cm x 12.93 cm x 13.39 cm) 10.56 oz. (299.37 g) Red LED lights to indicate the AXR-RF has received an RF signal from an AMX transmitter. Green LED that lights to indicate AXlink power/data status as follows: •...
  • Page 6 Product Information AXR-RF RF Receiver...

  • Page 7: Installation

    AXlink bus. Every device on the bus must have a unique device code. The device number must match the device assignment in the Axcess program. AMX assigns device numbers in three groups: Axcess Control Cards: 1 - 95...

  • Page 8: Wiring Guidelines

    Installation Wiring Guidelines The AXR-RF requires regulated ±12 VDC power to operate properly. The Central Controller supplies power via the AXlink cable. The maximum wiring distance between the Central Controller and AXR-RF is determined by power consumption, supplied voltage, and the wire gauge used for the cable.

  • Page 9: Installing The Axr-Rf

    Connect only the GND (-) wire on the AXlink connector when using an auxiliary ±12 VDC power supply. Do not connect the PWR (+) wire to the AXlink connector's PWR (+) terminal on the Central Controller side of the connector. Installing the AXR-RF 1.
  • Page 10 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...
