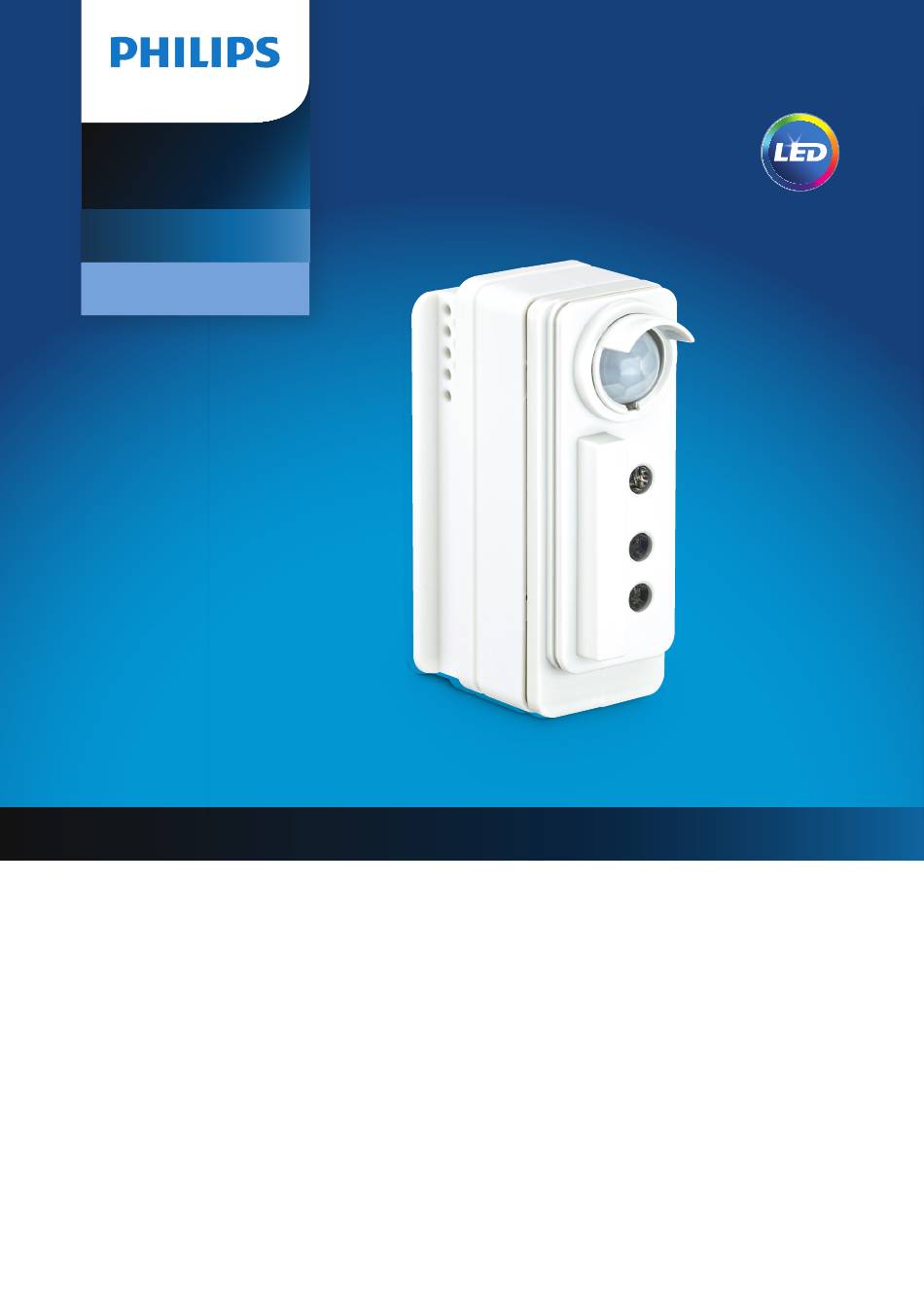

- Page 1 Sensors Sensors EasyAir EasySense SNS210 SNS210 MC Design-in Guide Single, compact, cost-effective luminaire control Philips EasySense SNS210 MC July 2020...
-
Page 2: Table Of Contents
Luminaire-to-luminaire distance Recommendations to design-in around EasySense SNS210 MC with good RF signal Recommendations to design-in a luminaire around EasySense SNS210 MC with good RF signal Mounting to a luminaire Mounting in a bracket (SMB-50) Installing EasySense SNS210 MC with ceiling... -
Page 3: Introduction To This Guide
Introduction to this guide Thank you for choosing Philips EasySense SNS210 MC. In this guide luminaire manufacturers will find the information required to design this product into a luminaire and configure it to suit specific applications. This design-in guide covers sensor functionality, mechanical mounting, wiring details, configuration and commissioning (grouping) method, application notes and frequently asked questions. -
Page 4: Warnings And Instructions
Warnings and instructions • EasySense SNS210 MC must be used with Philips Xitanium SR LED drivers. • Do not apply mains power directly to the sensor. • Do not cover the sensor during operation or mount the sensor internal to the luminaire. -
Page 5: Introduction Of Easysense Sns210 Mc
Introduction to EasySense SNS210 MC The Philips EasySense SNS210 MC is the ideal solution for per-luminaire control of smart luminaires. It combines occupancy sensing, daylight harvesting and task tuning in a single, compact package for easy OEM luminaire assembly. EasySense SNS210 MC operates with the established... -
Page 6: Product Characteristics
• Zigbee/Bluetooth • Light sensor LE antenna • LED indicator EasySense SNS210 MC is designed for a typical indoor environment (open/private offices, conference rooms, classrooms, corridors, etc.) in normally heated and ventilated areas. The sensor is normally mounted to a luminaire and is optimized for a sensor mounting height of 2.5 m to 3 m. -
Page 7: Motion Detector
Minor movement Major movement Height 2.4m 3.0m Figure 1. Motion detection area. H: ceiling height. Minor movement detection area: X1 by Y1. Major movement detection area: X2 by Y2. Design-in Guide - EasySense SNS210 MC July 2020... -
Page 8: Sensor View Shield
To prevent false triggers, the EasySense SNS210 MC must be mounted more than 2 m away from air vents in all directions, see figures below: > 2m Luminaire > 2m > 2m > 2m Sensor view shield The sensor comes with an occupancy view shield that can be used to block the movement detection by the sensor in a certain area. -
Page 9: Light Sensor
The EasySense SNS210 MC converts the illuminance signal into ON/OFF or dimming commands to the Philips Xitanium SR LED driver in order to maintain a constant light level on the desk. Window The sensor should be installed with a minimum distance of 0.6 m to the window to avoid the sensor looking outside. -
Page 10: Mechanical Design-In
Note: Stranded wires without ferrule should be soldered 5°~7° Angle Max Inserting solid conductors via push-in terminal [ Inserting solid conductors via push-in terminal ] Wire separation from the connector 1. Push Design-in Guide - EasySense SNS210 MC July 2020... -
Page 11: Wire Distance For Remote Mounting
Xitanium SR LED driver less than 15 m and meet the wire gauge requirement to guarantee the performance. Luminaire-to-luminaire distance If multiple luminaires with EasySense SNS210 MC are used in the same area, the distance between the different sensors should be kept at least 1.5 m. This distance will minimize a sensor from “seeing”... -
Page 12: Mounting To A Luminaire
Mounting in a luminaire EasySense SNS210 MC is a luminaire-mount sensor that is LED module directly powered by a Xitanium SR LED driver. It can be mounted to a slot or a cut-out in sheet metal. SNS210 Light shield Note: When daylight sensing is enabled, it is advised to... -
Page 13: Mounting In A Bracket (Smb-50)
Mounting in a bracket (SMB-50) 65 Max. The EasySense SNS210 MC can be mounted in a bracket (SMB 50). Refer the figures for details on mounting and design-in into luminaire. All dimensions are in mm. 26 Max. 64 Max. 60 ± 0.2 24 Max. -
Page 14: Installing Easysense Sns210 Mc With Ceiling Mount Bracket (Sns210 Mccmp)
Installing EasySense SNS210 MC with ceiling mount bracket (CMP/W) The ceiling mount CMP bracket is available as a bracket without any pre-mounted sensor or cable. The luminaire manufacturer needs to mount the sensor in the CMP bracket and attach cable to it. The cable and screws are available with the accessory. -
Page 15: Installer Label Instructions
1 label on the floorplan (for more information see website) 1 label must remain on the sensor, put 1 label on the luminaire, 4422-947-76641 February 2020 put 1 label on the floorplan (for more information see website) 4422-947-76641 February 2020 Design-in Guide - EasySense SNS210 MC July 2020... -
Page 16: Easysense Sns210 Mc With Multiple Philips Xitanium Sr Led Drivers (1:N Application)
DALI power supplies. NEUTRAL SGND LINE NFC ANTENNA Each SR driver provides approximately 55mA of current on the DALI bus, and EasySense SNS210 MC is limited to Connectors 250mA. LED+ LED+ LED- Enable DALI PS... -
Page 17: Luminaire Production Test
Luminaire Production Test To ensure that a luminaire has been assembled correctly i.e. the wiring of the EasySense SNS210 MC sensor to Xitanium SR driver is correct; a visible check can be made. The luminaire on power up dims up to 30% of maximum light output in the 1st second followed by dimming up to 100% in the next second. -
Page 18: Faq
Can you use a wall dimmer with EasySense SNS210 MC? EasySense SNS210 MC can be used with a wireless wall dimmer, e.g., Zigbee green power switch. For list of supported switches, please visit our website How does EasySense SNS210 MC compare to Philips ActiLume? Occupancy sensing and daylight harvesting are similar. - Page 19 Does EasySense SNS210 MC make sense if I only want to do Yes. Keep “Occupancy Control” enabled in MC App and occupancy sensing? disable “Daylight Control” How does the daylight harvesting feature work? EasySense SNS210 MC does inbuilt calibration to a fixed lux at desk level.
-
Page 20: Contact Details
Contact details Philips EasySense SNS210 MC Product information: contact your local Signify sales representative. Design-in Guide - EasySense SNS210 MC July 2020... -
Page 21: Disclaimer
Signify. Signify gives no warranties regarding these and assumes no legal liability or responsibility for any loss or damage resulting from the use of the information thereto given here. Design-in Guide - EasySense SNS210 MC July 2020... - Page 22 Philips and the Philips Shield Emblem are registered agreed by Signify. trademarks of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners.
