Soyal AR-0600M Quick Start Manual

ACCESS & INDUSTRIAL CONTROL
P r od uc t Inf ormation

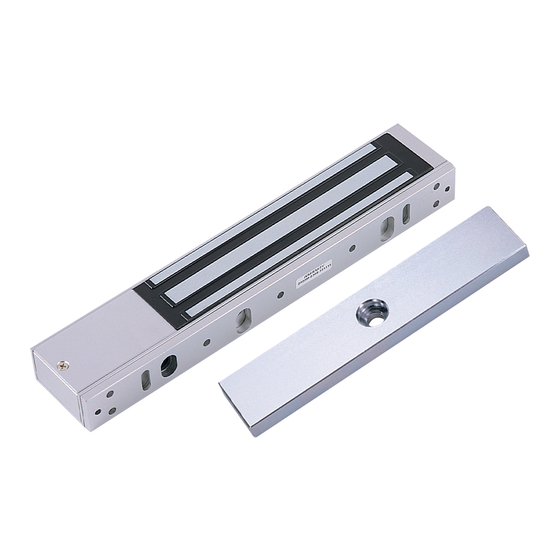

Electromagnetic Lock
AR-0600M
Product Specification & Key Features
Specification
Power Supply : DC12V / DC24V
Current Draw : 12VDC / 500mA / 24VDC / 250mA
Door Monitoring Output: Door Relay Status (N.O/N.C/COM)
Holding Force : 270KG( 600LBS)
Operating Temperature : -20℃ ~ +80℃
Lock Body Dimension (mm) : 251(L)x47(W)x25(H)
Armature Plate Dimension (mm) :185(L)x40(W)x15(H)
Material : Alluminum Alloy 6063-T5
Content
1 Accessories & Tools
X7
Fixing Screw Guide Pin
4mm*25mm
X1
Hexagon Allen
Rubber Armature
Wrench(M4)
Screw M8*20mm

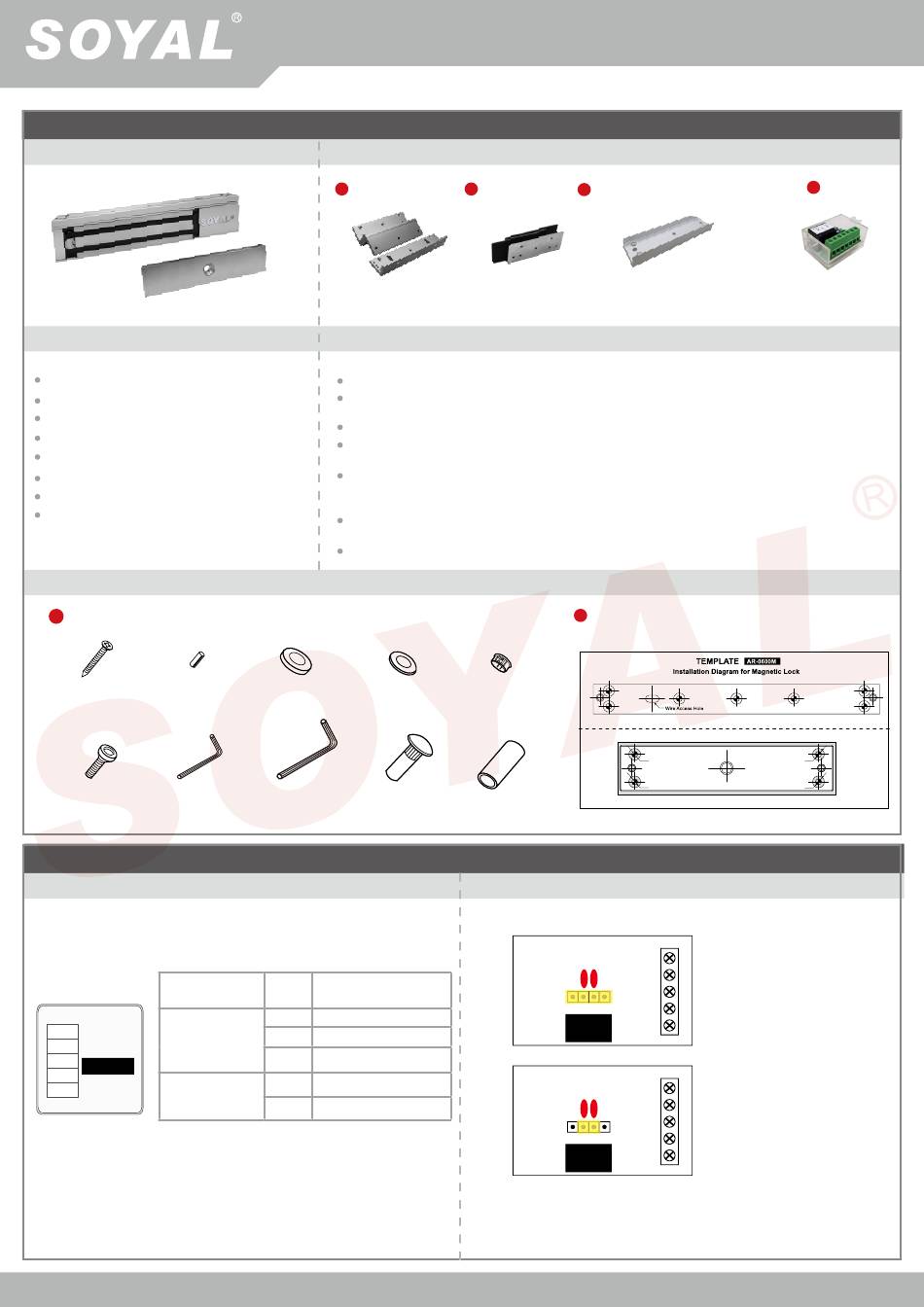

Wi ring D iagram & In stallatio n M a n u a l

Wiring Table

Wire
Application
DSS
N.O.
(Door Sensor
COM
Status)
N.C.
AR-0600M
V+
V-
Power
AR-0600M Electromagnetic Lock
Optional Order (Bracket)
LZ Bracket
1
AR-0600MZL
Key Features
Holding force increased by 10%，250Kgs---->270Kgs
Lock Body mounting plate (thickened from 6mm to 8mm) and fixing screw (increased from M4 to M5), lock strength is greatly
improved
The overall size of lock body remain the same, support both old and new installation.
Registered patent for Anti Falling Design, prevent lock to fall down when screw is loosening, enhance safety.
(Patent no. :USA 16/828.910 , Taiwan I679336 , EP 20168852.0-1005 , China 202010227686.3)
Registered patent for Anti Residual Magnetism design, anti-residual magnetism part located the edge of electromagnet, more
durable than conventional anti-residual magnetism design that easily oxidized dust on the armature plat(Patent no.: Taiwan
M597321 / EP 20168850.4-1005 / China 202010170047.8)
Registered patent for Strong Lock Design, newly designed strong lock base and eliminating the unnecessary screws.(Patent no.
:USA 16/828.931 ,Taiwan I679336, EP 20168852.4, China 202010227687.8)
Entire lock body comply with UL94V0 standard (fire resistance and self-extinguishing characteristic)
X2 X1
Rubber Washer Flat Washer
X1 X1
Hexagon Allen
Sexnut Bolt
Wrench(M5)
Wire Description
N.O. (N.O) DC 24V 1 Amp
COM (COM) DC 24V 1 Amp
N.C. (N.C) DC 24V 1 Amp
V+ DC 12V or 24V
V- DC 0V
U Bracket Armature Plate (MA) Bracket
2 3
AR-0600MU
(*Purchase Recommendation)
2 Installation Diagram for
Magnetic Lock Sticker
X2 X2
Secure Nut
X1 X1
Aluminum Pipe

Voltage Adjustment

VR2 VR1
J1
Relay
VR2 VR1
J1
Relay
- 1 -
AR-MA-46190 AR-721RB
(with Time Delay)
N.O
COM
N.C
DC 12V: Factory Default Value
V+
V-
N.O
COM
DC 24V: move J1 as shown
N.C
V+
V-
V200724
Relay
4
