Soyal AR-1207A-29 Quick Start Manual

SOYAL SOYAL
ACCESS CONTROL SYSTEM ACCESS CONTROL SYSTEM
C on te nt
AR-1207A/B-/29/36

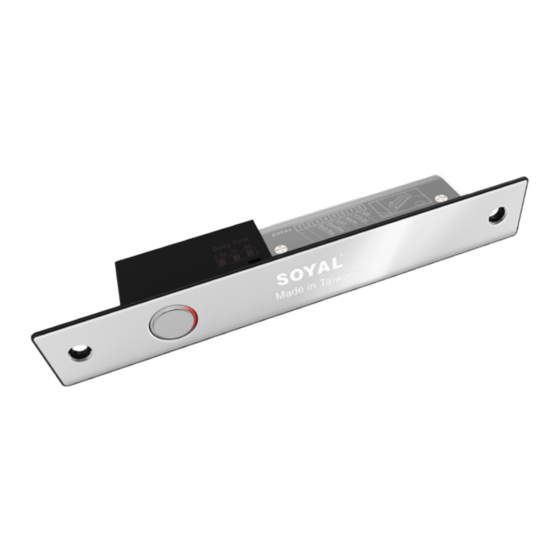

Product 【Electric Bolt Lock】
Product Information
1 Lock installation parts
Strike plate x1
8PIN Connector Cable
2
CN1
Wiring Diagram
1
2
LSS 3
DSS
4
PTE
5
Alarm Output
6
V12-24
7
V0 8
® ®
AR-1207
Specification
Voltage: DC12V-24V
Current Draw: 1A(12V) / 0.5A(24V)
Power Saving Mode: 220mA (12V)
/ 110mA (24V)
Operating Temperature: 0℃ ~ +50℃
Locking Mode: Type A (Fail Safe)
Dropbolt Length : 16 mm
Dimension:
AR-1207/29: 200Lx32Wx32H (
AR-1207/36: 205Lx32Wx32H (
Solenoid Test: Over 500,000 times
Weight: 500g
x 2
Extending Plate (small) x2
Screw Set
3
x 12
5mm*12mm Screw x12
5mm*32mm Screw x4
Power
DC12V-24V
Alarm
Controller
1
N.O.
2
COM 3
SENSOR
4
PB
5
6
N.O.
7
12V
GND
8
GND
Push Button
Electric Bolt Lock
A/B-29/36
Type B(Fail Secure)
)
mm
)
mm
(Suitable for AR-1207-29)
4 Installation Template
x 4
Wiring Table: CN1
Wire Application Wire
----
----
LSS
(Lock Sensor Status)
DSS
(Door Sensor Status)
PTE
(Push to Exit)
EXIT
Alarm Output
Power
- 1 -
(Fail Safe/Fail Secure)
Features
Built-in door position status output
to indicates door opened or closed
position [Door Status]
Built-in Bolt status output to
Indicate locked or unlocked bolt
status [Bolt Status]
Built-in bolt tamper-resistant
indicator and alarm output contact
[Alarm]
Support all range voltage DC12V~24V
Time delay option 0 / 3 / 9 seconds
Door Plate x1
x 2
(Suitable for AR-1207-36)
Extending Plate (big) x2
Color
1 Blue White ----
2 Purple White ----
Transistor open-collector output, Max
24V/110mA
3 White
Bolt locked output LOW, bolt unlocked
or power fail high impedance
Transistor open-collector output, Max
24V/110mA
4 Orange
Door closed output LOW, door unlocked
power fail high impedance
5 Purple Negative Trigger Input
Transistor open-collector output, Max
24V/110mA
6 Gray
Alarming output LOW, normal status or
power fail high impedance
7 Red Power DC 12-24V
8 Black Power DC 0V(GND)
V200528
x 2
Description
