Soyal LK-1201B Quick Start Manual
Soyal LK-1201B Quick Start Manual

Soyal LK-1201B Quick Start Manual

Electric bolt

Advertisement

Quick Links

OVERVIEW
Function:
Built-in push button contact. Auto re-lock in 3 seconds.
With burglarproof function.
Operation delay time:0, 3, 6, 9 seconds。
Door position sensor:COM、N.O.、N.C.
Built-in alarm output contact, a LED indicator to indicate door
status and alarm status.
SPECIFICATION
Type
Power Supply
Lock Body (mm)
Strike Plate (mm) 104 * 25.4 * 3.5
Face Plate (mm)
Lock core (mm)

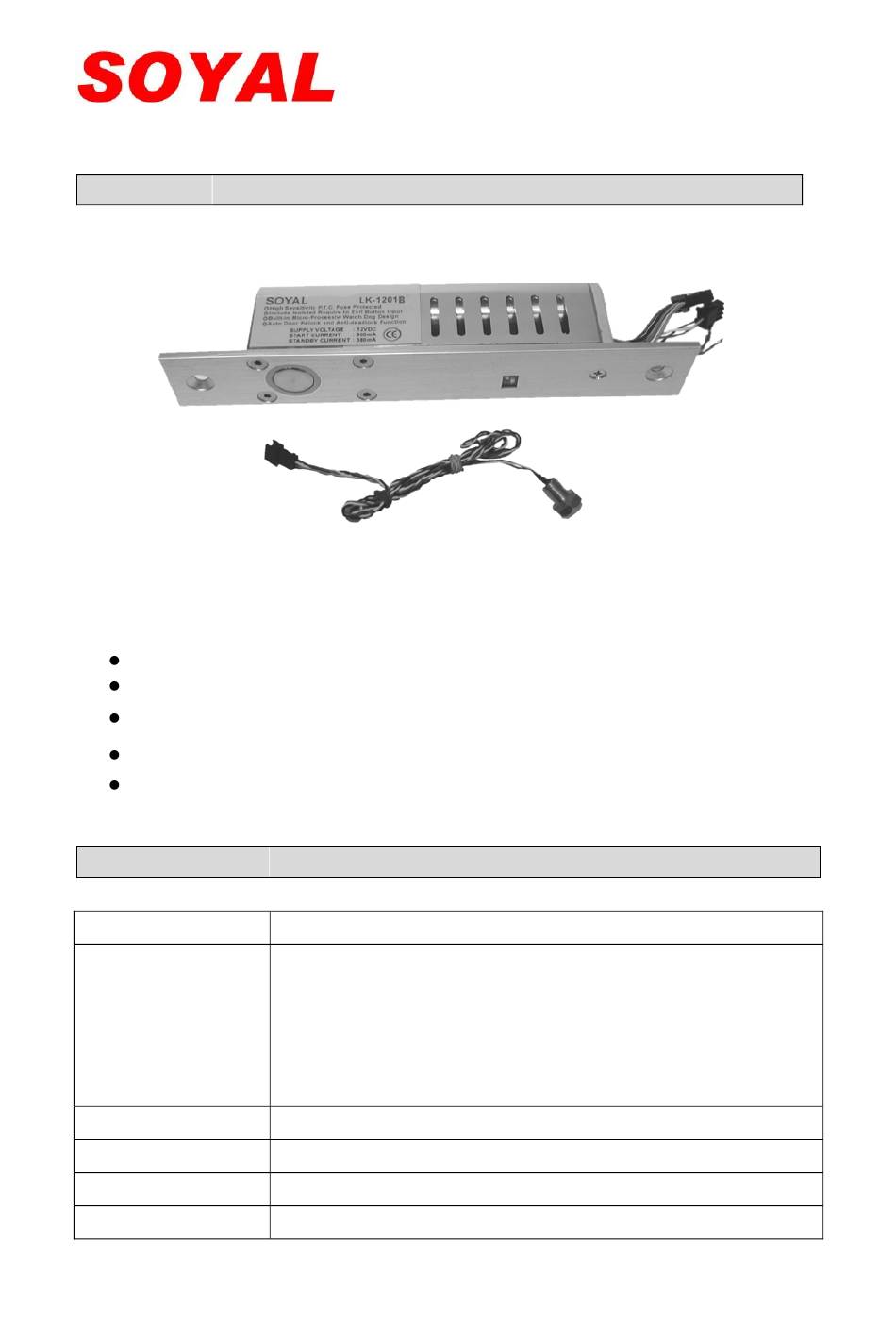

LK-1201B Electric Bolt
Fail-safe Type (Power to lock)
DC 12V
Operating Current:900mA
Holding Current:320mA
205 * 32 * 43
205 * 38 * 1
Diameter 16 mm, Length 16 mm
www.soyal.hu

Advertisement

loading
Need help?

Need help?

Do you have a question about the LK-1201B and is the answer not in the manual?

Questions and answers

Summary of Contents for Soyal LK-1201B

  • Page 1 LK-1201B Electric Bolt OVERVIEW Function: Built-in push button contact. Auto re-lock in 3 seconds. With burglarproof function. Operation delay time:0, 3, 6, 9 seconds。 Door position sensor:COM、N.O.、N.C. Built-in alarm output contact, a LED indicator to indicate door status and alarm status.
  • Page 2 www.soyal.hu...
  • Page 3: Led Indicators

    You could set up “Operation Delay time” by the Switch Device at the bottom of LK-1201B directly. For example, if you set time to be 3 seconds, when lock sensor dedicated the door status is close, it will auto re-lock in 3 seconds.
  • Page 4: Installation

    4. If LK-1201B couldn’t work normally, the probable damage factors are as blow : 1) The install direction of strike plate may be wrong, and it can’t dedicate the door status. 2) Maybe you connect the positive and negative position in contrary.
  • Page 5: Power Supply

    DIAGRAM of LK-1201B and AR-721H The installation of 721H and electric bolt lock Power Supply 12VDC 2A Purple (COM) Brown(NO) +12VDC Lock (+12VDC Lock( -GND ) Yellow Electric Bolt Lock 721H 7AC2 Push Button DOOR EXIT SOYAL Power Supply 12VDC 500mA...
