Soyal AR-1207A-29-F Manual

SOYAL SOYAL
ACCESS CONTROL SYSTEM ACCESS CONTROL SYSTEM
C on te nt
Product

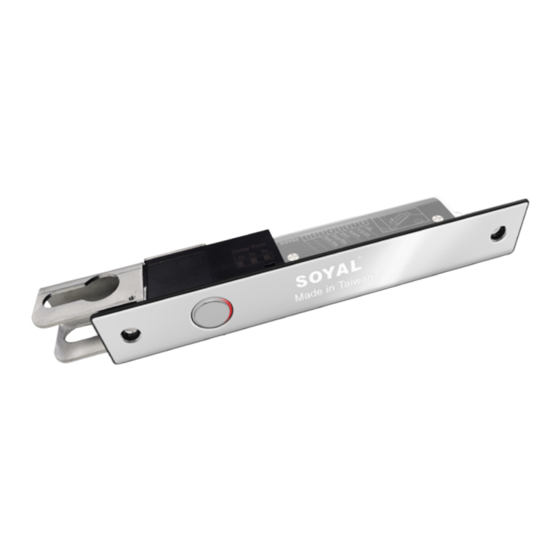

[Electric Bolt Lock w/ Cylinder Frame]
AR-1207A/B-29/36-F
Product Information
1 Lock installation parts
Strike plate x1
8PIN Connector Cable / Screw Set
2
CN1
Euro-Profile Cylinder Screw Set
M3 Hexagon
Screwdriver
Wiring Diagram
COM
1
2
LSS 3
DSS
4
PTE
5
Alarm Output
6
V12-24
7
V0
8
® ®
AR-1207
A/B-29/36-F
Euro - Profile Cylinder (Optional)
x 2
Extending Plate (small) x2
x 12
5mm*12mm Screw x12 5mm*32mm Screw x4
x 1 x 1
5mm*6mm 5mm*8mm
Screw x1 Screw x1
Power
DC12V-24V
Alarm
Controller
1
N.O.
2
COM 3
SENSOR
4
PB
5
6
N.O.
7
12V
EXIT
GND
8
GND
Push Button
Electric Bolt Lock
1 2
AR-1203-KK
Key
WD-Face Plate x1
(Suitable for AR-1207-29)
Installation Template
3
x 4
x 1
5mm*20mm
hollow screw x1
Wiring Table: CN1
Wire Application Wire
COM
----
LSS
(Lock Sensor Status)
DSS
(Door Sensor Status)
PTE
(Push to Exit)
Alarm Output
Power
- 1 -
(Fail Safe/Fail Secure)
3
AR-1203-KT
Lock Cylinder
Door Plate x1
x 3
or
(Suitable for AR-1207-36)
Extending Plate (big) x3
Electric Bolt Lock Installation Template X1
Euro-Profile Cylinder Installation Template X1
Color
1 Blue White COM for DSS & LSS
2 Purple White ----
Transistor open-collector output, Max
24V/110mA
3 White
Bolt locked output LOW, power fail high
impedance
Transistor open-collector output, Max
24V/110mA
4 Orange
Door closed output LOW, power fail
high impedance
5 Purple Negative Trigger Input
Transistor open-collector output, Max
24V/110mA
6 Gray
Alarming output LOW, power fail high
impedance
7 Red Power DC 12-24V
8 Black Power DC 0V(GND)
V191031
x 4
Cover
x 3
Description
