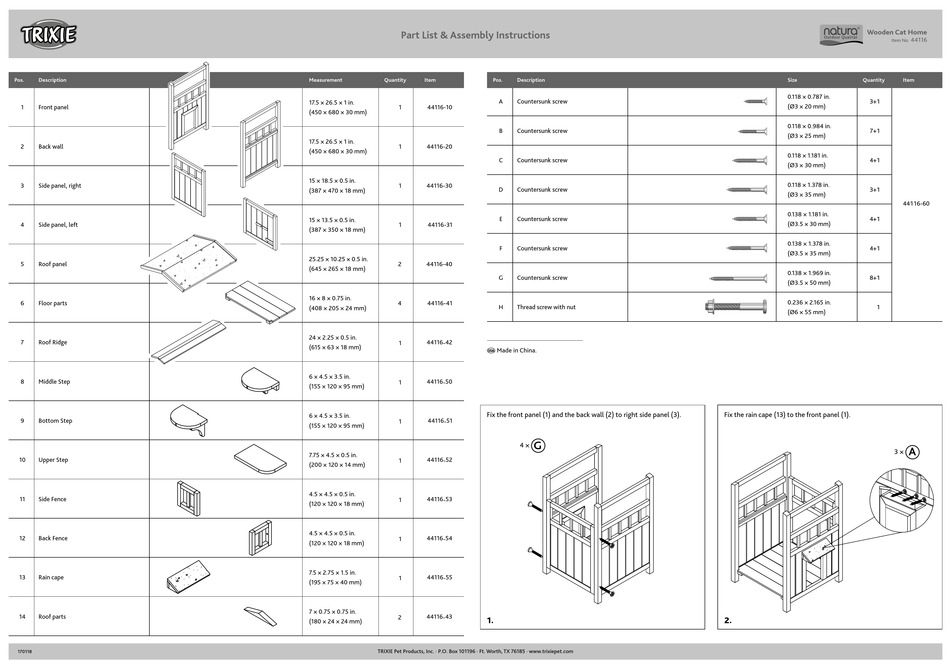

Trixie natura 44116 Assembly Instructions & Parts List

Pos. Description
1 Front panel
2 Back wall
3 Side panel, right
4 Side panel, left
5 Roof panel
6 Floor parts
7 Roof Ridge
8 Middle Step
9 Bottom Step
10 Upper Step
11 Side Fence
12 Back Fence
13 Rain cape
14 Roof parts
170118
Aufbauanleitung/Assembling Instruction/Instruction de montage
Part List & Assembly Instructions
Measurement Quantity Item
17.5 × 26.5 × 1 in.
1 44116-10
(450 × 680 × 30 mm)
.
17.5 × 26.5 × 1 in.
1 44116-20
(450 × 680 × 30 mm)
.
15 × 18.5 × 0.5 in.
1 44116-30
(387 × 470 × 18 mm)
.
15 × 13.5 × 0.5 in.
1 44116-31
(387 × 350 × 18 mm)
.
25.25 × 10.25 × 0.5 in.
2 44116-40
(645 × 265 × 18 mm)
.
16 × 8 × 0.75 in.
4 44116-41
(408 × 205 × 24 mm)
.
24 × 2.25 × 0.5 in.
44116 - 42
1
(615 × 63 × 18 mm)
U
.
6 × 4.5 × 3.5 in.
44116 - 50
1
(155 × 120 × 95 mm)
..
Fix the front panel (1) and the back wall (2) to right side panel (3).
6 × 4.5 × 3.5 in.
44116 - 51
1
(155 × 120 × 95 mm)
.
7.75 × 4.5 × 0.5 in.
44116 - 52
1
(200 × 120 × 14 mm)
..
4.5 × 4.5 × 0.5 in.
44116 - 53
1
(120 × 120 × 18 mm)
.
4.5 × 4.5 × 0.5 in.
44116 - 54
1
(120 × 120 × 18 mm)
..
7.5 × 2.75 × 1.5 in.
1 44116 - 55
(195 × 75 × 40 mm)
.
7 × 0.75 × 0.75 in.
2 44116 - 43
1.
(180 × 24 × 24 mm)
.
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Pos. Description
A Countersunk screw
B Countersunk screw
C Countersunk screw
D Countersunk screw
E Countersunk screw
F Countersunk screw
G Countersunk screw
H Thread screw with nut
Made in China.
G
4 ×

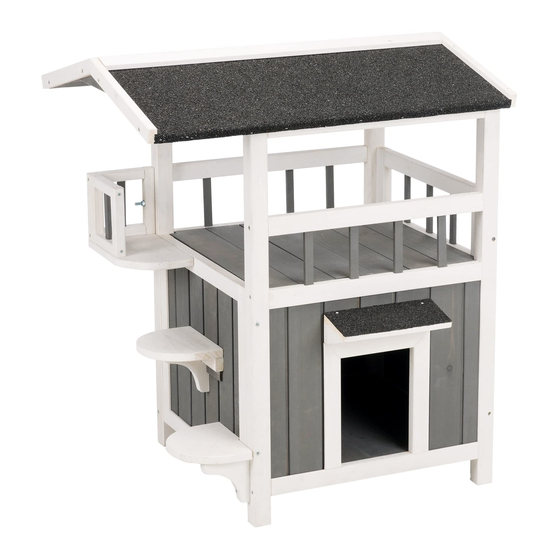

Wooden Cat Home
Item No.
Size Quantity Item
0.118 × 0.787 in.
3+1
(Ø3 × 20 mm)
.
0.118 × 0.984 in.
7+1
(Ø3 × 25 mm)
.
0.118 × 1.181 in.
4+1
(Ø3 × 30 mm)
.
0.118 × 1.378 in.
3+1
(Ø3 × 35 mm)
. 44116-60
0.138 × 1.181 in.
4+1
(Ø3.5 × 30 mm)
.
0.138 × 1.378 in.
4+1
(Ø3.5 × 35 mm)
.
0.138 × 1.969 in.
8+1
(Ø3.5 × 50 mm)
.
0.236 × 2.165 in.
1
(Ø6 × 55 mm)
Fix the rain cape (13) to the front panel (1).
3 ×
2.
44116
.
