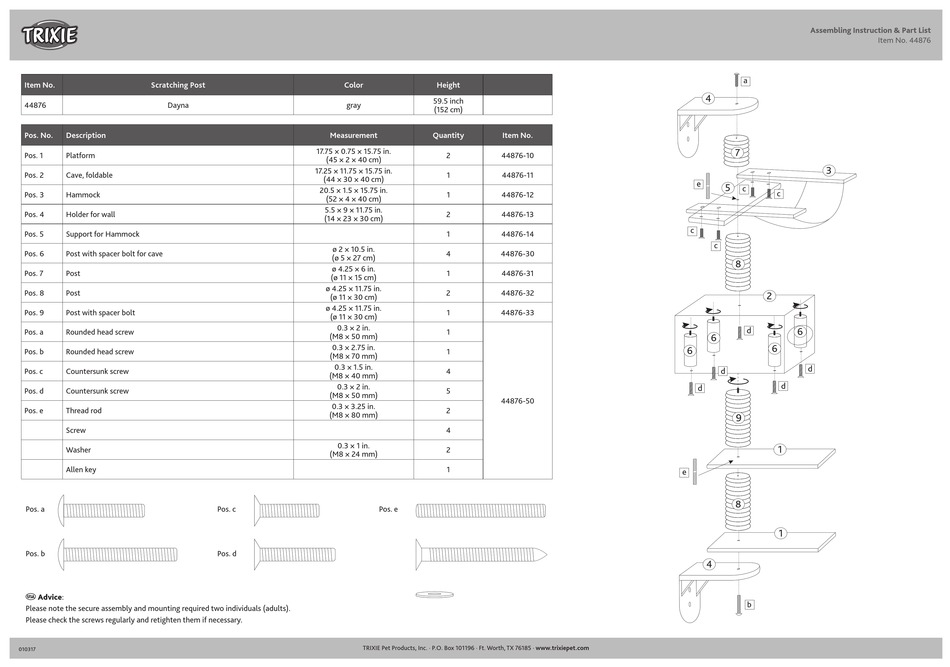

Trixie Dayna Assembling Instruction & Part List

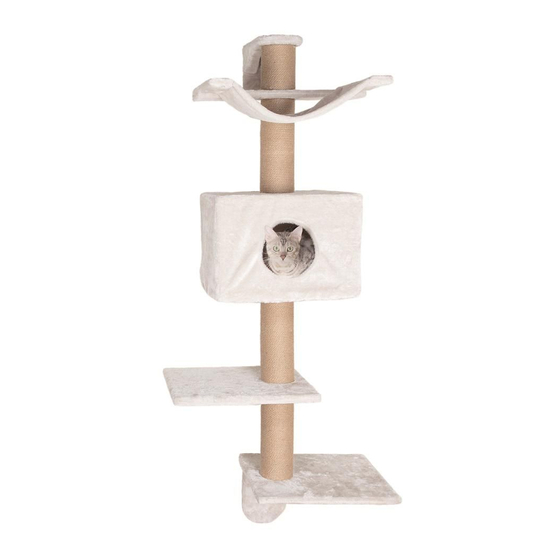

Item No. Scratching Post
44876 Dayna
Pos. No. Description
Pos. 1 Platform
Pos. 2 Cave, foldable
Pos. 3 Hammock
Pos. 4 Holder for wall
Pos. 5 Support for Hammock
Pos. 6 Post with spacer bolt for cave
Pos. 7 Post
Pos. 8 Post
Pos. 9 Post with spacer bolt
Pos. a Rounded head screw
Pos. b Rounded head screw
Pos. c Countersunk screw
Pos. d Countersunk screw
Pos. e Thread rod
Screw
Washer
Allen key
Pos. a
Pos. b
U
Advice:
Please note the secure assembly and mounting required two individuals (adults).
Please check the screws regularly and retighten them if necessary.
010317
Aufbauanleitung/Assembling Instruction/Instruction de montage
Color
gray
Measurement
17.75 × 0.75 × 15.75 in.
(45 × 2 × 40 cm)
17.25 × 11.75 × 15.75 in.
(44 × 30 × 40 cm)
20.5 × 1.5 × 15.75 in.
(52 × 4 × 40 cm)
5.5 × 9 × 11.75 in.
(14 × 23 × 30 cm)
ø 2 × 10.5 in.
(ø 5 × 27 cm)
ø 4.25 × 6 in.
(ø 11 × 15 cm)
ø 4.25 × 11.75 in.
(ø 11 × 30 cm)
ø 4.25 × 11.75 in.
(ø 11 × 30 cm)
0.3 × 2 in.
(M8 × 50 mm)
0.3 × 2.75 in.
(M8 × 70 mm)
0.3 × 1.5 in.
(M8 × 40 mm)
0.3 × 2 in.
(M8 × 50 mm)
0.3 × 3.25 in.
(M8 × 80 mm)
0.3 × 1 in.
(M8 × 24 mm)
Pos. c Pos. e
Pos. d
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Height
59.5 inch
(152 cm)
Quantity Item No.
2 44876-10
1 44876-11
1 44876-12
2 44876-13
1 44876-14
4 44876-30
1 44876-31
2 44876-32
1 44876-33
1
1
4
5
44876-50
2
4
2
1
Assembling Instruction & Part List
a
4
7
3
e
5
c
c
c
c
8
2
d 6
6
6
6
d
d
d
d
9
1
e
8
1
4
b
Item No. 44876
