Trixie 44113 Assembly Instructions

Pos. Description
1 Front- and backpanel
2 Sidepanel
3 Sidepanel with door
4 Roofpanel, mid and left side
5 Roofpanel, right side
6 Cover bar for roof
7 Brackets for platform
8 Platform
Pos. Description
A Countersunk screw
B Countersunk screw
C Countersunk screw
Made in China.
160117
Aufbauanleitung/Assembling Instruction/Instruction de montage
Part List & Assembly Instructions
Measurement Quantity Item
43.25 × 14.75 × 0.75 in.
4 44113-10
(1100 × 377 × 23 mm)
.
43.25 × 23.5 × 0.75 in.
5 44113-11
(1100 × 600 × 23 mm)
.
43.25 × 23.5 × 0.75 in.
1 44113-12
(1100 × 600 × 23 mm)
.
32.25 × 23.5 × 0.75 in.
2 44113-20
(820 × 600 × 21 mm)
.
32.25 × 23.5 × 0.75 in.
1 44113-21
(820 × 600 × 21 mm)
.
32.25 × 1.75 × 0.25 in.
2 44113-22
(820 × 50 × 10 mm)
.
9 × 7.75 × 0.75 in.
44113 - 30
6
(232 × 200 × 23 mm)
.
14.75 × 9.75 × 0.5 in.
44113 - 31
3
(377 × 250 × 15 mm)
.
Size Quantity Item
0.157 × 1.969 in.
42+2
(M4 × 50 mm)
.
0.118 × 1.378 in.
28+1 44113-40
(M3 × 35 mm)
.
0.118 × 0.787 in.
8+1
(M3 × 20 mm)
.
If you assemble together with
item no. 44112 some screws
will remain.
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
A
3 × 3 ×
1. 2.
A
12 ×
4.
A
9 ×
7.
A A
3 ×
3.
B
4 ×
3 ×
A
12 ×
for each
5. 6.
8.

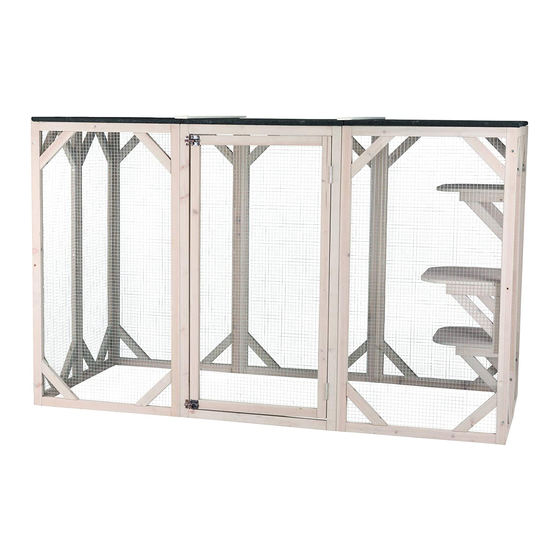

Wooden Cattery
44113
Item No.
B
16 ×
C
8 ×
81860
