3.1.3

Determining the settings for the USB logger

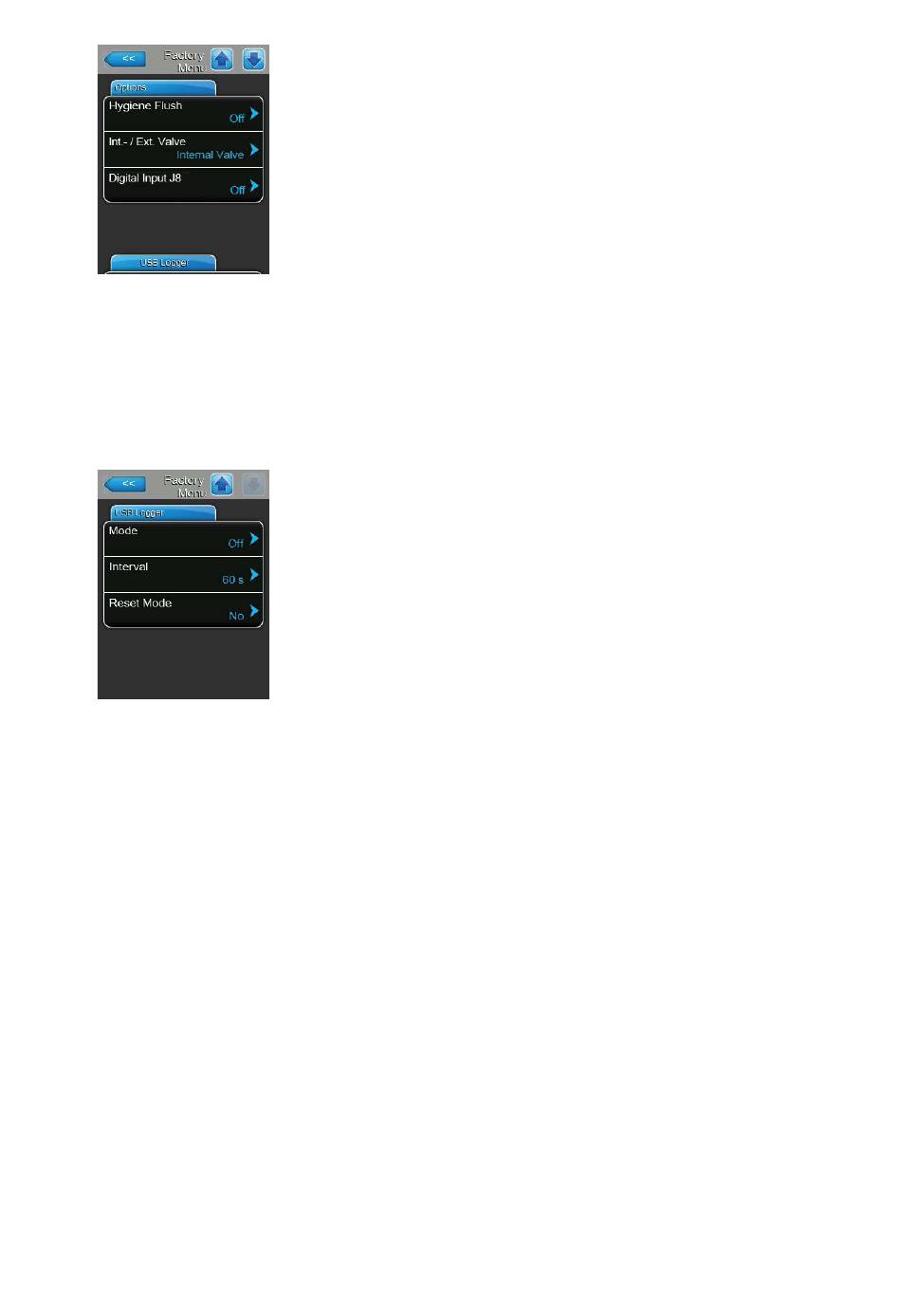

• In the "Factory" submenu press on the <Options> button, then select the"USB Logger" tab.
10
– Digital Input J8: With this setting you determine whether the digital signal
input J8 is deactivated ("Off) or wether it shall be used for leakage mo-
nitoring ("Leakage Sensor") or for the external triggering of a drain cycle
("External Drain").
Note: if the digital signal input J8 is set to "Leakage Sensor" a leakage
alarm is triggered, if the contact opens. If the digital signal input J8 is set
to "External Drain" a drain cycle is triggered, if the contact is closed.
Factory setting:
Options:
– Mode: With this setting you determine whether the USB logger function
is activated ("On") or not ("Off").
Factory setting:
Options:
Interval: With this setting you determine in which intervals the data are
–
stored on the USB memory stick.
Factory setting:
Setting range:
– Reset Mode: With this setting you determine whether the steam humidifier
is reset automatically if a failure is detected during the writing process to
the USB logger ("Request Delayed") or not ("No"). If the reset function is
activated the steam humidifier will be reset after a writing failure as soon
as there is no demand for >2min.
Factory setting:
Options:
Off
Off (the digital signal input J8 deactivated) or
Leakage Sensor (the digital signal input J8 is used
for leakage monitoring) or
External Drain (the digital signal input J8 is used
for external triggering of a drain cycle)
Off
On (USB logger function activated) or
Off (USB logger function deactivated)
60 seconds
1 ... 120 seconds
No
No (reset mode deactivated)
Request Delayed (reset mode activated)
