- Page 1 Nordmann Omega Pro Steam humidifier INSTALLATION MANUAL 2588794-A EN 1807...
- Page 2 Nordmann Engineering AG, except to the extent required for installation or maintenance of recipient's equipment. Liability Notice Nordmann Engineering AG does not accept any liability due to incorrect installation or operation of the equipment or due to the use of parts/components/equipment that are not authorised by Nordmann Engineering AG. Copyright Notice ©...
-
Page 3: Table Of Contents
Contents Introduction To the very beginning Notes on the installation manual For your safety Product Overview Models overview 3.1.1 Single units Small ("S") , Omega Pro 5...10 and Medium ("M"), Omega Pro 16...40 3.1.2 Double units (2 x "M"), Omega Pro 40...80 Product designation Options Accessories... - Page 4 Notes on humidity control systems/humidity control 5.6.1 System 1 – Room humidity control 5.6.2 System 2 – Room humidity control with continuous limitation of the supply air humidity 5.6.3 System 3 – Supply air humidity control with continuous output limit ation 5.6.4 Which humidity control system for which application 5.6.5...
-
Page 5: Introduction

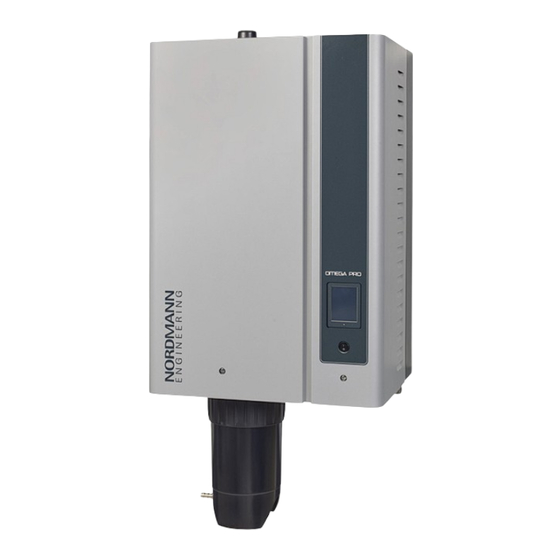

Introduction To the very beginning We thank you for having purchased the Nordmann Omega Pro steam humidifier. The Nordmann Omega Pro steam humidifier incorporates the latest technical ad van ces and meets all recognized safety standards. Nevertheless, improper use of the Nordmann Omega Pro steam humidifier may result in danger to the user or third parties and/or damage to property. - Page 6 Symbols used in this manual CAUTION! The catchword "CAUTION" used in conjunction with the caution symbol in the circle designates notes in this installation manual that, if neglected, may cause damage and/or malfunction of the unit or damage to property. WARNING! The catchword "WARNING"...
-
Page 7: For Your Safety
For your safety General Every person, who is in charge of the installation work on the Nordmann Omega Pro must have read and understood this installation manual and the Nordmann Omega Pro operation manual before car- rying out any work. Knowing and understanding the contents of the installation manual and the operation manual is a basic requirement for protecting personnel against any kind of danger, to prevent faulty operation, and to operate the unit safely and correctly. - Page 8 Preventing unsafe operation All persons working with the Nordmann Omega Pro are obliged to report any alterations to the unit that may affect safety to the owner without delay and to secure the Nordmann Omega Pro against ac- cidental power-up. Prohibited modifications to the unit No modifications must be undertaken on the Nordmann Omega Pro without the express written consent of Nordmann.
-
Page 9: Product Overview
Product Overview Models overview Nordmann Omega Pro steam humidifiers are available as single units with different housing sizes ("S" and "M" ) and as double units (2 x "M") with different heating voltages and steam capacities ranging from 5 kg/h up to a maximum of 80 kg/h. 3.1.1 Single units Small ("S") , Omega Pro 5...10 and Medium ("M"), Omega Pro 16...40 Housing... -
Page 10: Double Units (2 X "M"), Omega Pro 40
3.1.2 Double units (2 x "M"), Omega Pro 40...80 Housing Nordmann 230 V/1~ 200V/3~ 230V/3~ 380V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~ size Omega Pro kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h –– 2*18.1 2*19.7 ––... -
Page 11: Product Designation
The identification of the unit is found on the specification label. Production Type designation Serial number (7 digits) Month/Year Nordmann Engineering AG, Talstrasse 35-37, 8808 Pfäffikon SZ, Switzerland Heating voltage Type: Nordmann Omega Pro 30 Serial-No: XXXXXXX 11.16 Voltage: 400V 3~ / 50...60Hz El. - Page 12 Key model designation Example: Nordmann Omega Pro 50 400V/3~ VE Product designation Unit model: Heating voltage: 230V/1~/50...60Hz: 230V/1~ 200V/3~/50...60Hz: 200V/3~ 230V/3~/50...60Hz: 230V/3~ 380V/3~/50...60Hz: 380V/3~ 400V/3~/50...60Hz: 400V/3~ 415V/3~/50...60Hz: 415V/3~ 440V/3~/50...60Hz: 440V/3~ 460V/3~/50...60Hz: 460V/3~ 480V/3~/50...60Hz: 480V/3~ 500V/3~/50...60Hz: 500V/3~ 600V/3~/50...60Hz: 600V/3~ Water management: VE: without lime collector tank for de-ionized water...
-
Page 13: Options
Options Voltage Nordmann Omega Pro 230V/1~ 5...10 ––– ––– 200V/3~ ––– 16...30 40...60 230V/3~ 5...10 16...30 40...60 380V/3~ 5...10 16...40 50...80 400...415V/3~ 5...10 16...40 50...80 440...600V/3~ 16/20/30/40 50...80 Remote operating and fault indication 1xRFI PCB with relay contacts for the connection of remote displays for "Operation", "Steam", "Fault"... -
Page 14: Accessories
Accessories 3.4.1 Accessories overview Voltage Nordmann Omega Pro 230V/1~ 5...10 ––– ––– 200V/3~ ––– 16...30 40...60 230V/3~ 5...10 16...30 40...60 380V/3~ 5...10 16...40 50...80 400...415V/3~ 5...10 16...40 50...80 440...600V/3~ 16/20/30/40 50...80 Steam distribution pipe 1xDV81 2xDV81 Steam distribution pipe for steam distribution inside a air duct (see details in chapter 3.4.2.1). -
Page 15: Accessory Details
3.4.2 Accessory details 3.4.2.1 DV81-... steam distribution pipe The steam distribution pipes are selected on the basis of the duct width "B" (for horizontal installation) or the duct height "H" (for vertical installation) and the capacity of the steam humidifier. Important! Always select the longest possible steam distribution pipe (opti mum humidification distance). -
Page 16: Multipipe Steam Distribution System
3.4.2.2 MultiPipe steam distribution system The MultiPipe steam distribution system is used in ventilation ducts with a short humidification distance (for the calculation of the humidification distance refer to chapter 5.4.2). When ordering an MultiPipe system the duct dimension must be specified. Please consult the data in the following table: System 1 System 2 Number of steam connectors... -
Page 17: Receiving And Storage
Check packing slip to ensure all parts has been delivered. All material shortages are to be reported to your Nordmann supplier within 48 hours after receipt of the goods. Nordmann Engineering AG assumes no responsibility for any material shortages beyond this period. -
Page 18: Storage And Transportation
Storage and Transportation Storing Until installation store the Nordmann Omega Pro in its original packaging in a protected area meeting the following requirements: – Room temperature: 5 ... 40 °C – Room humidity: 10 ... 75 %rh Transportation For optimum protection always transport the unit and components in their original packaging and use appropriate lifting/transporting devices. -
Page 19: Mounting And Installation Work
Mounting and installation work Safety notes on mounting and installation work Qualification of personnel All mounting and installation work must be carried out only by well qualified personnel authorised by the owner. It is the owner’s responsibility to verify proper qualification of the personnel. General notes Strictly observe and comply with all information given in the present installation manual regarding the mounting of the unit and the installation of water, steam and electricity. -
Page 20: Installation Overviews
Installation overviews Typical installation for duct humidification Humidity sensor or humidity controller . 4 . 2 u c t i p t e b s t r Return duct c h a n y o s e e t o a High limit humidistat o w n a n c... - Page 21 Typical installation for room humidification Fan unit (mounted separated from the steam humidifier) FAN4 Steam line – as short as possible (length: min. 1m and max. 4 m) – adequate upslope/downslope min. 20% – no restrictions – condensate trap at the lowest point –...
-
Page 22: Mounting The Unit
Mounting the unit 5.3.1 Notes on locating the unit * recommended.: 250 mm . 5 0 m i n e.g. Omega Pro 60 2x "M" . 5 0 m i n Fig. 6: Distances to be observed Housing 1x Small ("S") 1x Medium ("M") Omega Pro 5...10 Omega Pro 16...40... - Page 23 The installation site of the Nordmann Omega Pro depends largely on the location of the steam distributor (see chapter 5.4.2). To ensure proper functioning of the steam humidifier and to obtain an optimal efficiency, the following points must be considered and observed when choosing the location for the steam humidifier: –...
-
Page 24: Mounting The Humidifier
5.3.2 Mounting the humidifier Mounting overview single units Small and Medium Dimension Housing size Omega Pro Omega Pro 5...10 ("S") 16...40 ("M") "a" in mm 193.5 193.5 "b" in mm 304.8 406.4 "c" in mm 57.6 61.8 Weights Housing size Omega Pro Omega Pro 5...10 ("S") -
Page 25: Inspecting The Installed Unit
5.3.3 Inspecting the installed unit Check the following points: Is the unit installed in the correct place (see chapter 5.3.1)? Is the supporting surface stable enough? Is the unit correctly aligned, vertically and horizontally? Is the unit properly secured (see chapter 5.3.2)? -
Page 26: Steam Installation
Steam installation 5.4.1 Overview steam installation for duct humidification . 4 . 2 u c t i p t e b s t r c h a n y o s e e t o a o w n a n c n k n . - Page 27 Fan unit (mounted separated from the steam humidifier) FAN4 Steam line – as short as possible (length: min. 1 m and max. 4 m) – adequate upslope/downslope min. 20 % – no restrictions Condsensate line – condensate trap at the lowest point –...
-
Page 28: Positioning Of The Steam Distributor
5.4.2 Positioning of the steam distributor The location of the steam distributor should be determined at the time of dimensioning the air condition- ing system. Please note the following instructions to ensure proper humidification of the duct air. Calculating the absorption distance The steam, emitting from the steam distributor, requires a certain distance to be absorbed by the air so that it is no longer visible as steam. - Page 29 Example given 1= 30 %rh, 2= 70 %rh φ φ 1,4 m absorption distance B (0.36 m for steam distribution system MultiPipe) Note: If the absorption distance has to be reduced for technical reasons, the amount of steam per unit must be divided between several steam distribution pipes or the steam distribution system MultiPipe must be used.
- Page 30 before diffuser before humidity controller/ humidity sensor before/after filter/heater " ) ( 1 . 1 . 5 2,5 x B before aerosol filter before/after fan, zone exit " ) ( 1 .
- Page 31 Installation notes The steam distribution pipes are designed for either horizontal installation (on the duct wall) or, with ac- cessories, for vertical installation (in the duct floor). The outlet orifices should always point upwards and at right angles to the airflow. If possible, the steam distribution pipes should be installed on the pressure side of the duct (max.
- Page 32 1 / 4 1 / 4 gm i 1 / 4 gm i 1 / 4 2 / 5 2 / 5 1 / 5 1 / 5 1 / 5 1 / 5 1 / 5 1 / 5 H min.= 600 mm H min.= 500 mm H min.= 400 mm...
-
Page 33: Installing The Steam Distributors
Guidelines for dimensioning the ventilation ducts – To facilitate the installation of the steam distribution pipes and for control purposes, a sufficiently sized control opening should be planned. – Within the range of the absorption distance, the ventilation duct should be waterproofed. –... -
Page 34: Positioning And Mounting Of The Fan Units (Accessory Fan 4 N
5.4.4 Positioning and mounting of the fan units (accessory FAN 4 N...) The FAN4 N.. fan units can either be mounted directly on the humidifier or separately above the humidi- fier to the wall. To allow the steam coming from the fan unit to spread out evenly, without condensing on obstacles (ceilings, joists, pillars, etc.), the following minimum dimensions must be observed when selecting the location for the fan unit. -
Page 35: Installing The Steam And Condensate Lines
5.4.5 Installing the steam and condensate lines Installations notes – Use original steam and condensate hose from your Nordmann representative or solid steam pipes from copper or stainless steel (min. DIN 1.4301) exclusively. Steam and condensate lines from other material may cause undesired operational malfunctions. –... - Page 36 Installation examples Accessory: VS-DV81 Ømin. 200 mm Ømin. 200 mm Fig. 11: Steam distributor mounted more than 500 mm above the top edge of the humidifier...
- Page 37 Ensure adequate cooling according to local codes Obstacle Ensure adequate cooling according to local codes Install condensate drain (full size T) at the lowest point Fig. 12: Steam distributor mounted less than 500 mm above the top edge of the humidifier...
- Page 38 Steam line must be insulated over the entire length! Ømin. 200 mm Fig. 13: Steam line with solid piping and insulation...
-
Page 39: Common Steam And Condensate Line Errors
5.4.6 Common steam and condensate line errors Wrong Correct Steam line not led at least 11.81" (300 mm) perpendicularly Lead steam line at least 11.81" (300 mm) perpendicularly upwards before first bend (forming of condensate). upwards before first bend. Minimum bend radius of steam hose/solid steam line not The minimum bend radius of 11.81"... -
Page 40: Inspecting The Steam Installation
5.4.7 Inspecting the steam installation Use the following check list to ensure that the steam installation was performed correctly: – Steam distributor Steam distributors (steam distribution pipe or MultiPipe steam distribution system) correctly positioned and secured (screws tightened)? Are the outlet orifices at right angles to the air flow for horizontal installation, or at 45 degree angle for vertical installation? –... -
Page 41: Water Installation
Water installation 5.5.1 Overview water installation Water drain connector ø30 mm Water supply connector G 3/4" Water supply pipe (min. inner diameter 8 mm, supplied by others) Drain hose (supplied) – internal diameter ø30 mm Filter valve (accessory) or – Drain hose must be led to the left Shut-off valve and filter 125 µm –... -
Page 42: Notes On Water Installation
5.5.2 Notes on water installation Water supply The water supply is to be carried out according to the figure found in and the applicable chapter 5.5.1 local regulations for water installations. The indicated connection specifications must be observed. – The installation of the filter valve (accessory "Z261", alternatively a shut-off valve and a 125 µm water filter can be used) should be made as close as possible to the steam humidifier. -
Page 43: Inspecting The Water Installation
– Attach drain line(s) in such a way, that it/they cannot slip out of the funnel(s) and that it/they cannot bottom out in the funnel(s). – The open end of the drain line(s) must not touch the funnel(s) (min. air gap 2 cm). 5.5.3 Inspecting the water installation Check the following topics:... -
Page 44: Notes On Humidity Control Systems/Humidity Control
Notes on humidity control systems/humidity control 5.6.1 System 1 – Room humidity control System 1 is suited for direct room humidification and air conditioning systems with mainly recir- culated air. The humidity sensor or humidistat respectively is preferably located in the room itself or in the exhaust air duct. -
Page 45: System 3 - Supply Air Humidity Control With Continuous Output Limit Ation
5.6.3 System 3 – Supply air humidity control with continuous output limit ation Supply air humidity control (humidity sensor installed in supply air duct) should be used only where room humidity control is impracticable for technical reasons. Such systems always require a PI-controller. -
Page 46: Admissible Control Signals
5.6.5 Admissible control signals Control with external controller Control with internal PI controller Control signals Humidity sensor signals 0...5 VDC 0...5 VDC 1...5 VDC 1...5 VDC 0...10 VDC (Potentiometer 140 Ω ... 10 kΩ) 0...10 VDC (Potentiometer 140 Ω ... 10 kΩ) 2...10 VDC 2...10 VDC 0...20 VDC... -
Page 47: Electrical Installation
Electrical installation 5.7.1 Notes on electrical installation DANGER! Danger of electric shock The Nordmann Omega Pro is mains powered. Live parts may be exposed when the unit is open. Touching live parts may cause severe injury or danger to life. Prevention: The Nordmann Omega Pro unit must be connected to the mains only after all mounting and installation work has been completed, all installations have been checked for correct workmanship and the unit is closed and properly locked. -
Page 48: Wiring Diagram Nordmann Omega Pro 5
5.7.2 Wiring diagram Nordmann Omega Pro 5...40 - Single units "S" and "M" Control compartment LEVEL POWER DRN2 J3 DRN1 J2 INLET J1 UNIT BOARD SUPPLY L1 L2 Driver board L1 L2 L3 CR2032 CONTROL LIMIT BLOWER ENABLE 24VDC MODULE B MAINS SUPPLY VOUT IN GND IN GND 24V IN... -
Page 49: Wiring Diagram Nordmann Omega Pro 40
5.7.3 Wiring diagram Nordmann Omega Pro 16...80 - Double units 2 x "M" Control compartment Module A Control compartment Module B LEVEL POWER DRN2 J3 DRN1 J2 INLET J1 UNIT BOARD SUPPLY L1 L2 Driver board Module B Y1 Y2 L1 L2 L3 CR2032 CONTROL... -
Page 50: Installation Work External Connections
5.7.4 Installation work external connections Connecting the external safety chain The potential-free contacts of external moni t or ing de- MAINS SUPPLY vices (e.g. ventilation interlock "B1", airflow monitor "B2", L N SC1SC2PEPE safety high limit humidistat "B3", etc.) are connected in series (safety chain "K2") to the terminals "SC1"... - Page 51 Connecting an ohmic humidity controller (passive) The signal cable of an ohmic humidity controller (140Ω...10kΩ) is to be connected according to the wir- ing diagram to the terminals "VOUT", "IN" and GND" on the driver board in the control compartment. The connecting cable must be led through a cable gland CONTROL into the control compartment.
- Page 52 Connecting an external ohmic limiter controller The signal cable of an ohmic limiter controller (140Ω...10kΩ) is to be connected according to the wiring diagram to the terminals "VOUT" (CONTROL terminal) and "IN" and GND" (LIMIT terminal) on the driver board in the control compartment. CONTROL LIMIT The connecting cable must be led through a cable gland...
- Page 53 Connecting the optional accessory board The optional accessory board contains four potential-free relay contacts to activate external fans of the AHU and the optional valves for flushing the water supply lines: F1 (100 mA) – "Hyg. Valve A" (Terminal 1 and 2): This relay activates the optional valve for flushing the water supply line connected to module A.
- Page 54 Connecting the external drain contact (option) The potential-free contact of the external drain contact is connected to the terminals of the terminal block "J8" LEVEL on the appropriate driver board in accordance with the UNIT wiring diagram. The connecting cable must be led through a cable gland Control compartment into the control compartment.
- Page 55 Connecting the heating voltage supply L1 L2 L1 L2 L2 L3 L2 L3 Control compartment Control compartment (Module A) (Module B) 200-600 V/3~/50..60 Hz 200-600 V/3~/50..60 Hz 230 V/1~/50..60 Hz 230 V/1~/50..60 Hz The heating voltage supply (L1, L2, L3 and PE or L1, N and PE) is to be connected in accordance with the wiring diagram to the corresponding terminals of the terminal strip "THV"...
- Page 56 Connecting the heating voltage supply via option TR (for 3 phase single voltage system) MODULE B MAINS SUPPLY MODULE B MAINS S L1 L2 L1 L2 L N SC1SC2PEPE L N SC1 Supply cable 6.3 A, (Module A / Module B) slow acting L2 L3 Option TR...
- Page 57 Connecting the voltage supply via Option CVI (for 3 phase/neutral single voltage system) MODULE B MAINS SUPPLY MODULE B MAINS S L1 L2 L1 L2 L N SC1SC2PEPE L N SC1 Supply cable (Module A / Module B) L2 L3 6.3 A, slow acting Option CVI Control compartment...
-
Page 58: Performance Data / Fuses "F3" Heating Voltage Supply
5.7.5 Performance data / Fuses "F3" Heating voltage supply 230V/1~/50...60 Hz 200V/3~/50...60 Hz 230V/3~/50...60 Hz 380V/3~/50...60 Hz 400V/3~/50...60 Hz 415V/3~/50...60 Hz Omega 16.5 –– –– –– –– –– 26.0 –– –– –– –– –– 15.0 32.0 10.0 –– –– –– ––... -
Page 59: Inspecting The Electrical Installation
5.7.6 Inspecting the electrical installation Check the following points: Do the supply voltages for heating and control voltage comply with the relevant voltages stated on the specification label? Are the voltage supplies (heating and control voltage) correctly fused? Are the service switches "Q.." installed in the supply lines for to the heating and control voltage? Are all components correctly connected according to the wiring diagram? Are all connecting cables fastened? Are the connecting cables free of tension (passed through cable glands?) -
Page 60: Appendix
Appendix Unit dimensions 6.1.1 Unit dimensions unit "S" (Omega Pro 5...10) 173.5 71.7 123.8 80.2 304.8 57.6 304.8 57.6 G 3/4" 211.5 Fig. 22: Unit dimensions unit "S" (dimensions in mm) -
Page 61: Unit Dimensions Unit "M" (Omega Pro 16
6.1.2 Unit dimensions unit "M" (Omega Pro 16...80) 181.8 163.5 61.8 88.5 406.5 61.8 406.5 61.8 G 3/4" 321.5 Fig. 23: Unit dimensions unit "M" (dimensions in mm) -
Page 62: Ec Declaration Of Conformity
EC Declaration of conformity Konformitätserklärung Declaration of conformity Déclaration de conformité Wir, Nous, Nordmann Engineering AG Nordmann Engineering Ltd. Nordmann Engineering SA CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ erklären in alleiniger Verantwortung, declare under our sole responsibility, that déclarons sous notre seule... - Page 64 CH94/0002.01 Nordmann Engineering AG Lindenhofstrasse 28, 4052 Basel, Switzerland Phone +41 61 404 46 50, Fax +41 61 404 46 79 www.nordmann-engineering.com info@nordmann-engineering.com...
