Summary of Contents for Nordmann Engineering ES4

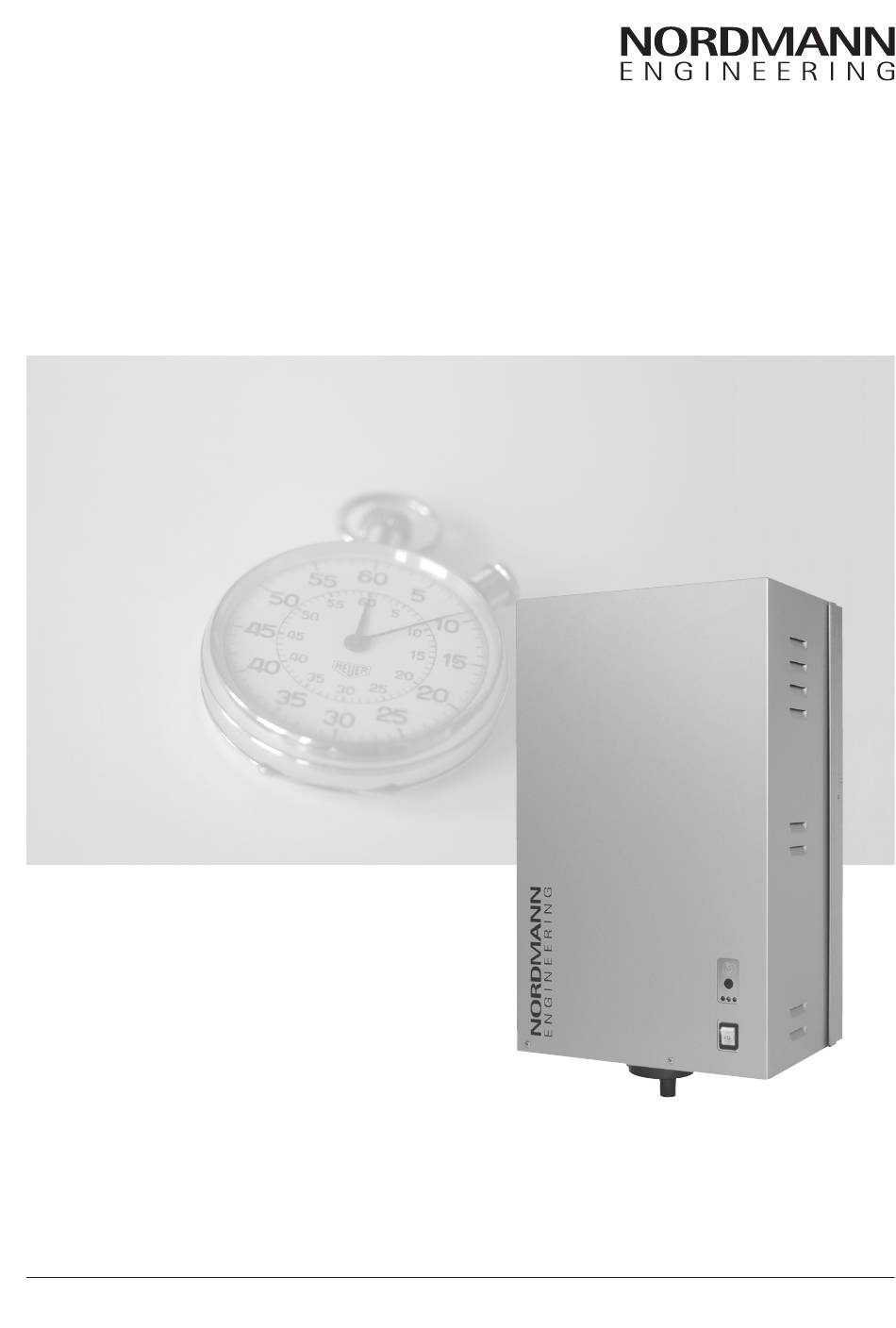

- Page 1 Nordmann ES4 Steam air humidifier SHORT FORM INSTRUCTIONS 2559454-A EN 1806...
- Page 2 Nordmann Engineering AG, except to the extent required for installation or maintenance of recipient's equipment. Liability Notice Nordmann Engineering AG does not accept any liability due to incorrect installation or operation of the equipment or due to the use of parts/components/equipment that are not authorised by Nordmann Engineering AG. Copyright Notice ©...
-
Page 3: Table Of Contents
Contents Introduction Product Overview Models overview 2.2 Identification of the unit 2.3 Steam humidifier construction 2.4 Humidification system overview Installation overviews Wiring diagram/Current data 4.1 Wiring diagram Nordmann ES4 4.2 Current data Product specifications 5.1 Technical data 5.2 Unit dimensions... -
Page 4: Introduction
Nordmann ES4. In either case the installation and operating instructions of the Nordmann ES4 must be read before car- rying out any work on the Nordmann ES4 and the information and safety instructions in it must be followed and upheld. -
Page 5: Product Overview
Product Overview Models overview Steam air humidifiers Nordmann ES4 are available with different heating voltages and steam capacities ranging from 5 kg/h up to a max. of 65 kg/h. Heating voltage ** Max. steam capacity Model Unit size in kg/h... -
Page 6: Identification Of The Unit
Identification of the unit The identification of the unit is found on the type plate: Type designation Serial number (7 digits) Month/Year Nordmann Engineering AG, Talstrasse 35-37, 8808 Pfäffikon SZ, Switzerland Heating voltage Type: ES4 4564 Ser.Nr.: XXXXXXX 02.10 Heating voltage: 400V / 3~ / 50...60Hz Power: 33.8 kW... -
Page 7: Steam Humidifier Construction
Terminals heating voltage (option) Water supply connector Remote operating and fault Drain connector indication board (option) Cable openings, bottom side Control board with ES4 Card Type plate Power supply unit 24 V (option) Steam cylinder Drain/info key Level sensor Operation status indicators... -
Page 8: Humidification System Overview
2.4 Humidification system overview System overview duct humidification MultiPipe DV41 DV71 DS22 DS35 KS10 Z261 125...1250 µS/cm 1...10 bar 1...40 °C Steam humidifier Service switch control voltage supply (building side) Steam connector Service switch heating voltage supply (building side) Water drain connector Steam hose (accessory “DS..”) Water supply connector Condensate hose (accessory “KS10”) - Page 9 System overview room humidification FAN4 N S W FAN4 N M W FAN4 N L W DS80 KS10 Z261 125...1250 µS/cm 1...10 bar 1...40 °C Steam humidifier Water drain hose (included in the delivery) Steam connector Service switch control voltage supply (building side) Water drain connector Service switch heating voltage supply (building side) Water supply connector...
-
Page 10: Installation Overviews
Installation overviews Installation overview duct humidification External safety chain L1 N SC1SC2 ekt. max. A1 / A2 Continuous control 0-10V On/Off-Control On/Off Mode On/Off Mode CONT.SIGN CONT.SIGN V+ IN GND V+ IN GND ext. ext. + – DV41 0-10V On/Off DV71 Heating voltage Pmax... - Page 11 Installation overview room humidification External safety chain L1 N SC1SC2 ext. max. Continuous control 0-10V On/Off-Control On/Off Mode On/Off Mode CONT.SIGN CONT.SIGN FAN4 N S W V+ IN GND V+ IN GND FAN4 N M W FAN4 N L W ext.
-
Page 12: Wiring Diagram/Current Data
Wiring diagram/Current data Wiring diagram Nordmann ES4 Control board Power board Driver board L1 L2 L3 ES4 Card CURRENT SENSOR LEV.SENSOR Drain Factor L1 L2 L3 Cylinder Power Limit ext. Settings CPU BOARD Manual Drain Low Conduct. (6.3 AT) Standby Drain... -
Page 13: Current Data
Current data Heating voltage Max. steam Nordmann Nominal power Nominal Main fuses F2 capacity ES4 .. current [kg/h] [kW] 3x 10 3x 16 1534 11.3 16.2 3x 20 400V3 2364 17.3 24.9 3x 35 (400 V/3~/50...60 Hz) 3264 24.0 34.6... -
Page 14: Product Specifications
Product specifications 5.1 Technical data Steam capacity in kg/h Capacity range in kg/h 1...5 1.6...8 3...15 4,6...23 6,4...32 9...45 13...65 Nominal power in kW 11,3 17,3 24,0 33,8 48,8 Heating voltage 230V/1~/50..60Hz * Unit model Nominal current in A 16,3 26,1 Steam cylinder type ** 522A 822A Heating voltage 400V/2~/50..60Hz *... -
Page 15: Unit Dimensions
Unit dimensions Nordmann ES4 5/8/15 (dimensions in mm) 120 120 ø30... - Page 16 Nordmann ES4 23/32/45/65 (Dimensions in mm) ø30...
- Page 18 CH94/0002.01 Nordmann Engineering AG Lindenhofstrasse 28, 4052 Basel, Switzerland Phone +41 61 404 46 50, Fax +41 61 404 46 79 www.nordmann-engineering.com, info@nordmann-engineering.com...
