Larson Electronics WAL-C-4XM Instruction Manual

Pendant Mount Kit for EPSL-80-141 Series of LED Explosion Proof Strobe Lights
Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this instruction sheet.
Read carefully before operating. Retain these instructions for future reference.
WARNING:
• USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE.
• TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE DISCONNECTED WHEN INSTALLING, RE-LAMPING
OR PERFORMING ANY MAINTENANCE ON THIS FIXTURE.
• WHEN INSTALLING THIS FIXTURE IN HAZARDOUS LOCATIONS, CHECK THE OPERATING TEMPERATURE LIMITS PRIOR TO INSTALLATION TO BE
SURE IT CONFIRMS TO THE ENVIRONMENTAL TEMPERATURE RESTRICTIONS AND NEC CLASSIFICATIONS. CHECK THE FIXTURE'S METAL
NAMEPLATE FOR TEMPERATURE (T) RATINGS.
• THE GLOBE IS TEMPERED GLASS. DO NOT SCRATCH OR CHIP. TURN THE POWER OFF BEFORE STARTING INSTALLATION, REPAIR OR RE-
LAMPING.
• OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE TO DO SO WILL RESULT IN DAMAGE TO THE
FIXTURE.
• SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.
• THE GLOBE IS MADE OF TEMPERED GLASS. IF THIS GLASS BECOMES SCRATCHED OR CHIPPED IT SHOULD BE REPLACED IMMEDIATELY.
The WAL-C-4XM is a mounted mini light tower and provides 400,000 lumens of light output. This portable light tower has a removable
four light head assembly mounted on top of a four leg steel TOWER equipped with 8 inch wheels for easy positioning of the unit from one
area of the workspace to another. The light assembly on this unit produces a wide flood pattern of light that is ideal for illuminating large
workspaces and job sites. This light is designed for heavy duty use in demanding conditions including emergency services, mining,
construction, marine, and industrial operations where durability and portability is important.
This portable light tower is comprised of a removable light assembly fitted with four metal halide lamps mounted atop a four leg tripod
fabricated from heavy duty steel. This adjustable and collapsible tower can be extended to fourteen feet and collapsed to seven feet and
is locked into position with t-handle locking pins. The unit is extended and lowered using an included hand crank cable winch equipped
with a brake for fast and safe deployment. Included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly
to a new location when fully deployed. The light fixture assembly can be removed by releasing the hand knob and sliding the light and
mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamps can
be easily adjusted up, down or from side to side independently of each other and locked into position for maximum coverage of the work
area.

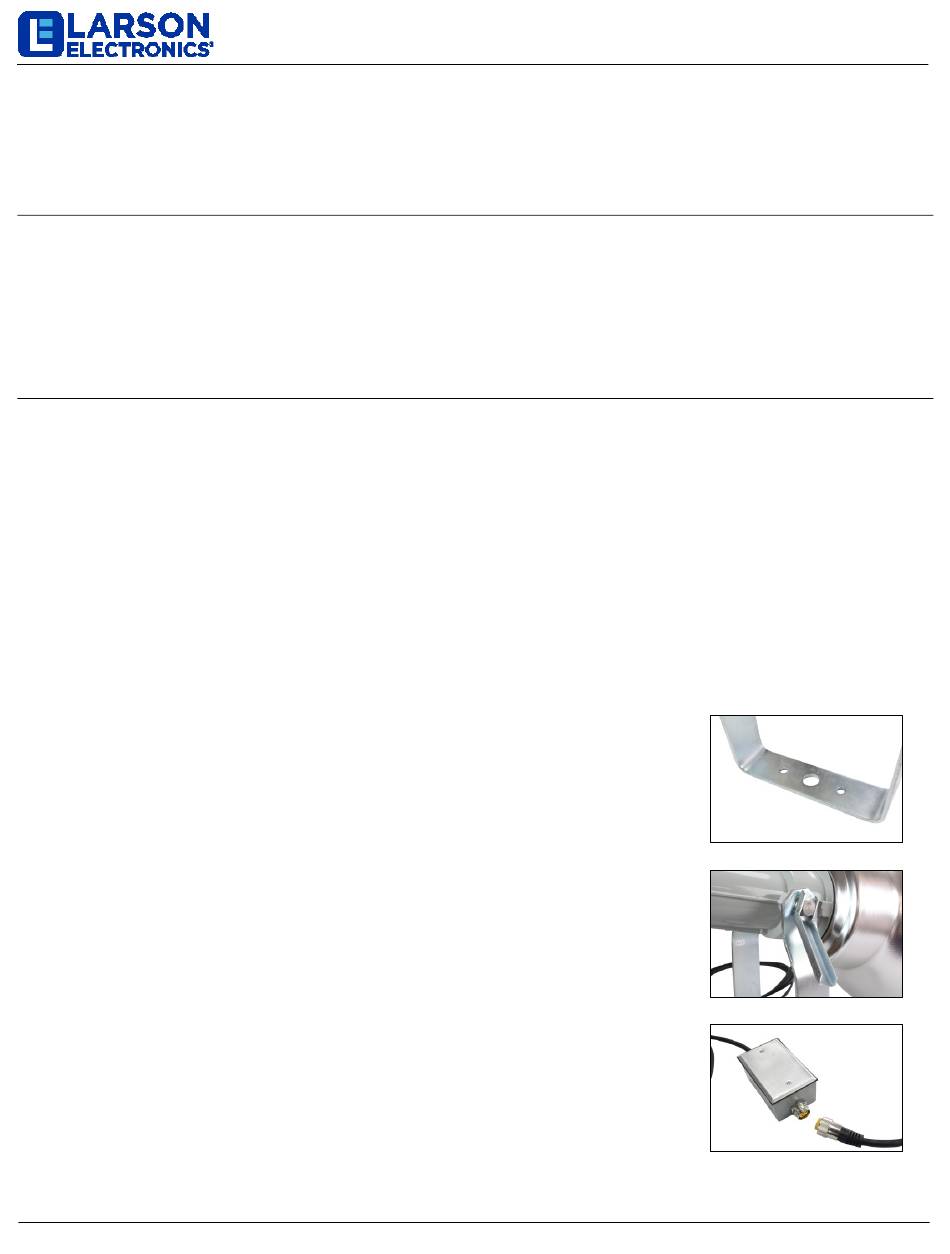

Installing the Fixture
1. Use the predrilled mounting holes to mount the lamp in your desired location.
Position the lamp horizontally before tightening the bolt(s).
2. Loosen the hand screws on either side of the bracket to move the lamp
vertically. Tighten the hand screws to secure the lamp in place.
3. Attach the lamp's power cord to the receptacle from the ballast box.
Align the tabs until connected, and then tighten the connector.
Installing the Ballast Box
1. Place the ballast box in a location within 6ft from the lamp and near a power
source. The ballast box can be surface mounted using the mounting
brackets attached to the back.
2. Once mounted, run power to the unit. Input terminals are accessed via the front
of the ballast box. Unscrew the two Phillips screws holding the front cover plate
and place aside.
3. To run conduit or cord inside the unit, use a cord grip, cable gland or conduit
fitting and drill out the hole size required by the fitting.
