Larson Electronics WAL-18BS-200W-LED-2MB Instruction Manual

WAL-18BS-200W-LED-2MB

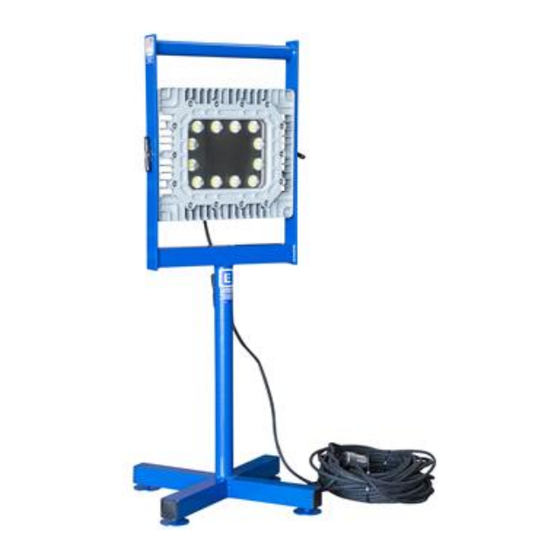

200 Watt Portable LED Work Area Light
Aluminum Frame - Adjustable Light Head - 120-277VAC
Instruction Guide
Thank you for your purchase of the Larson Electronics WAL-18BS-200W-LED-2MB series Portable LED Work Area Light.
This light is ready for use when shipped from factory. Please follow the steps below in order to operate and maintain this
product.
IMPORTANT
READ CAREFULLY BEFORE OPERATING THIS LIGHT. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE
ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL. THE WAL-18BS-200W-
LED-2MB MUST BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES.
PROPER GROUNDING IS REQUIRED FOR SAFETY.
WARNING: OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT LABEL.
WARNING: THE SUPPLY CIRCUIT SHOULD BE DISCONNECTED WHEN INSTALLING OR PERFORMING ANY MAINTENANCE
ON THIS UNIT.
WARNING: OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE TO DO SO
WILL RESULT IN DAMAGE TO THE FIXTURE.
WARNING: SUBSTITUTE COMPONENTS MAY IMPAIR SAFETY.
INSTALLATION
Before operation, confirm that the power source will provide the correct voltage indicated on the product
nameplate. Ensure the receptacle will accept the cord cap attached to the light. This light is shipped
preconfigured with selected Cord Cap.
Check product nameplate for Ratings and Approvals.
Place the light in the desired location and run its power cord to a compatible power source. Ensure all safety
requirements are followed for the area.
Light head can separate from base stand as required. To install light head, simply slide over base stand and
tighten the hand screw. Ensure light head is fully seated before tightening hand screw. The hand screw can be
loosened to rotate the light head 360° horizontally.
This light is instant-on and will illuminate once energized.
Multi-voltage capability allows this light to be powered via
Voltage: 120-277V AC, 50/60Hz
(Check product nameplate for the correct input voltage!)
LAMP TYPE VARIES

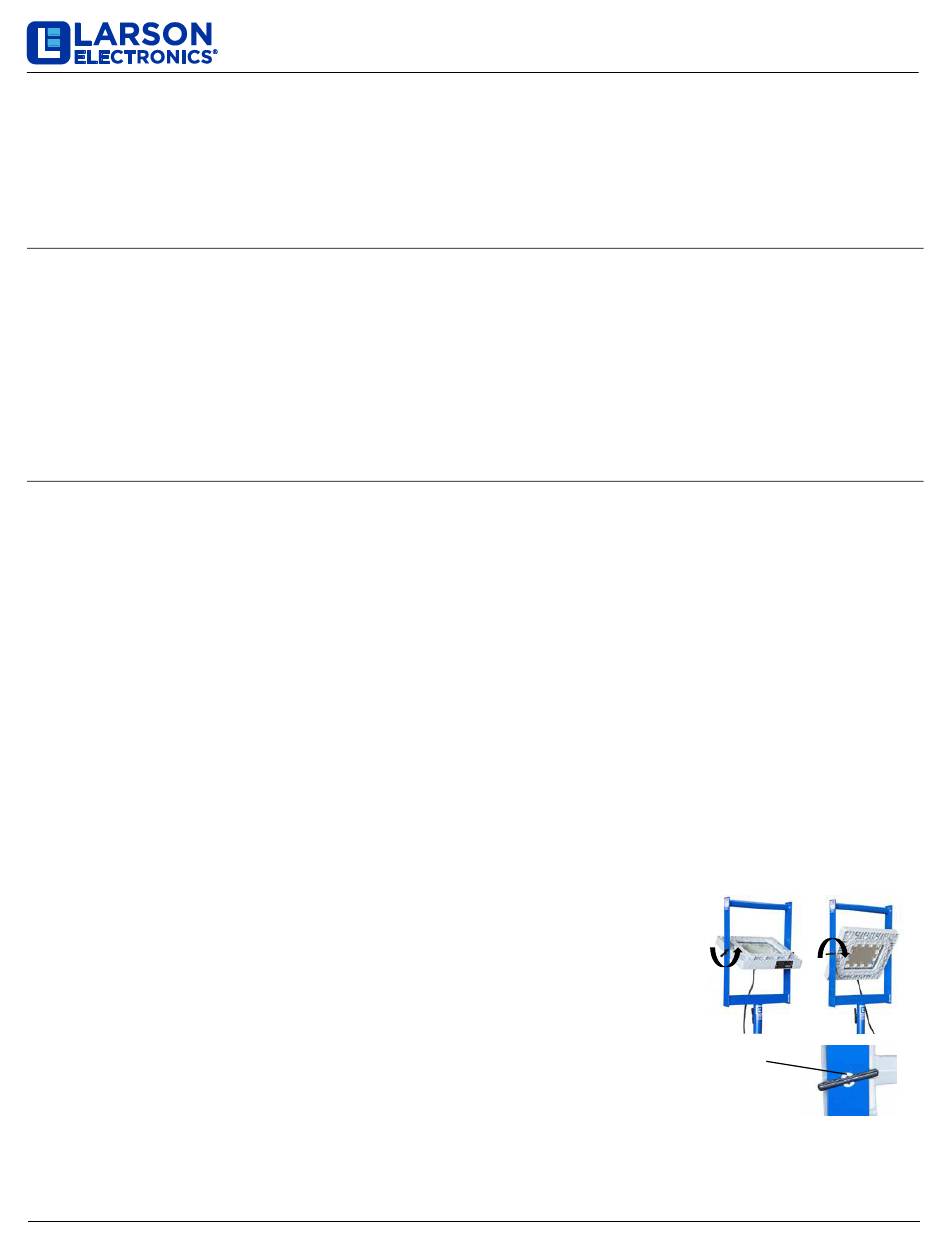

ADJUSTMENT
Loosen the hand screws on either side of the light to make vertical
adjustments. Tighten hand screws once desired angle is achieved.
The light head can be removed from the base stand for easy maneuverability
or for stowing. Simply loosen the hand screw toward the base of the light head
and lift light head off. Place light head on base stand and tighten hand screw to
HAND SCREW
replace.
Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 1 of 2
