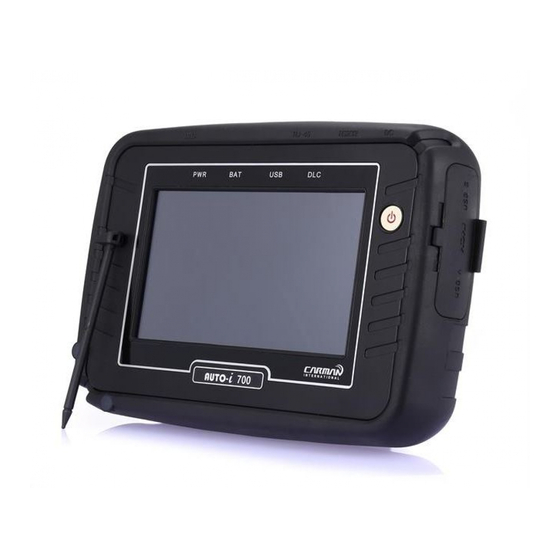

AUTO-i 700 Quick Guide

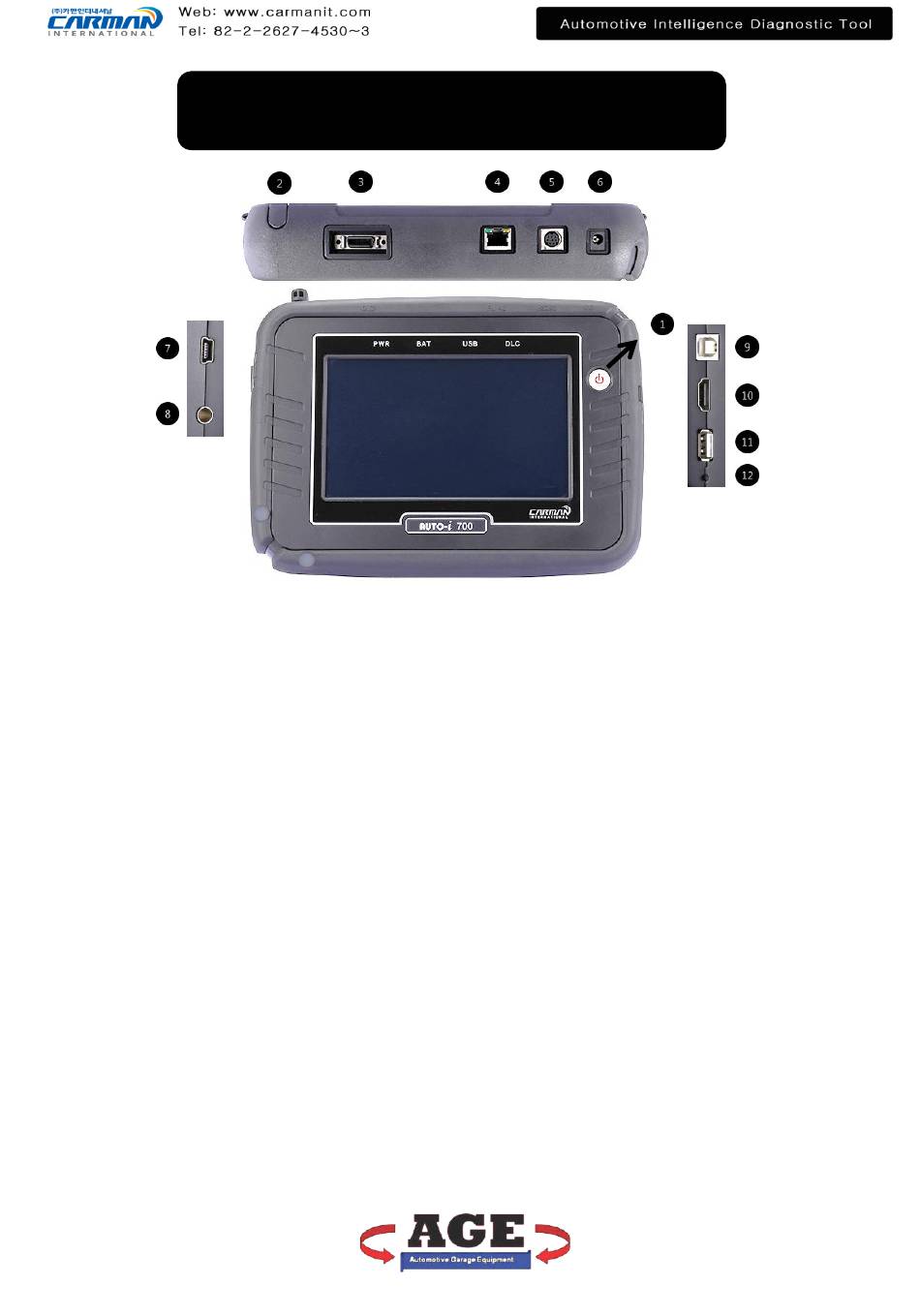

1. Power Button: Keep pushing this button until screen turns on. It takes around 1 second.
(Do not press too strongly. it can cause this button broken.)
2. Touch Pen: Keep a touch pen in a hole.
3. DLC:Port for DLC main cable.
When connecting, if it sounds 'clack' on connector, then, it becomes connected well.
4. RJ45: Port for ethernet communication. Just now, it is not available. Later, it will be updated.
Do not use an internet cable. (It is now blocked with a sticker. When use, remove the sticker.)
5. RS232: Port for TPMSto read sensor values or to code by our TPMS a transmitter-receiver.
Just now, It is not available. Later, it will be updated.
6. DC12V: Port for a power adapter or cigar jack for power.
7. USB mini B : It is not available for user. (Your connecting can cause damage of the scanner.)
8. J2534 : Port for J2534 communication. It is not available. Later, it will be updated.
9. USB-B TYPE: USB port to PC for update the scanner and data.
Use our USB cable supplied with our scanner.
10. HDMI: Port for HDMI to other external monitor. Not available. Later, it will be updated.
11. USB-A TYPE: USB port for other external devices such as USB memory stick etc.
12. Forced termination button: Press this button when the program hang occurs to turn off the scanner.
