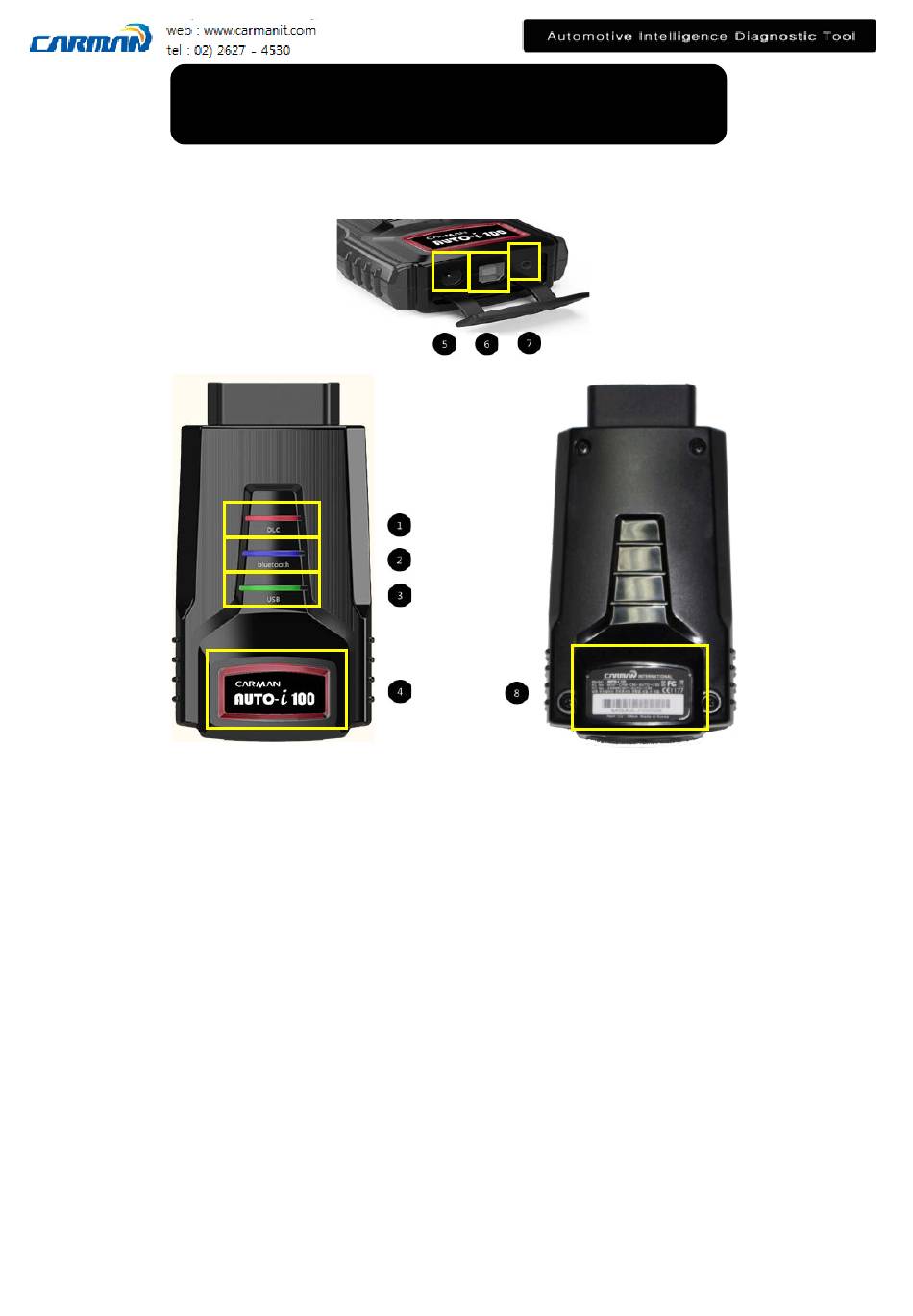

1. DLC LED: Communication with a vehicle
2. Bluetooth LED: Bluetooth communication
3. USB LED: Communication with a USB port
4. PWR LED: External power supply. (12V DC, DLC power supply)
5. Power connector: It is for a AC/DC power adaptor and a cigar jack.
6. USB B TPYE: Connecting to PC for USB communication &update.
7. RS232: It connects to TPMS module for read sensor data and coding.
8. Serial No. label.
※ Program files in the USB stick
1.
"SETUP_AUTO_i100_XXX_APP.EXE": AUTO-i100 Diagnostic program installation file
2.
"SETUP_Repair.exe" for Repair Information Folder: Repair Information data file
3.
"AUTOi_USB_Driver.exe" for SetUp Driver Folder
: USB driver installation program file for Module and PC USB connection
4.
"AUTO-i Series User Manual.pdf" for User Manual Folder: User Manual
AUTO-i100 User Manual
-1-
