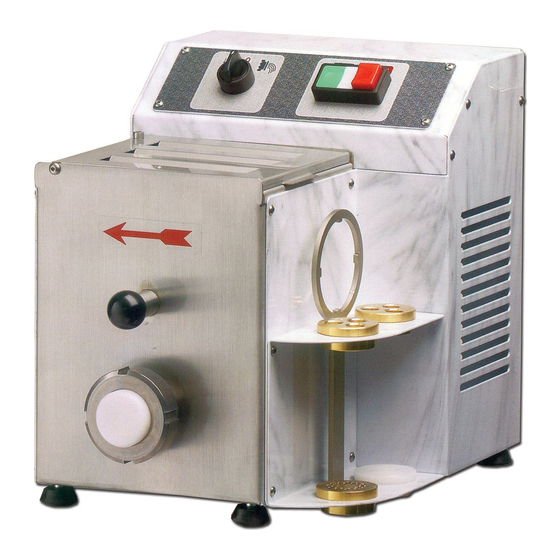

- Page 1 Pasta Machine Model PM-IT-0002 Item 13317 Instruction Manual Revised - 11/18/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PM-IT-0002 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 10 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model PM-IT-0002 Tank Capacity 2.9 lbs. / 1.3 kgs. Power 0.5 HP / 0.37 kW Output 5.5 lbs. -
Page 7: Installation
Installation After mating the plug to the mains socket, the machine is ready for use. First, however, check out proper operation of all moving parts and components of the machine. Operation Prepare the machine before every process cycle. BE SURE that the machine, especially parts which come in contact with food products (extrusion sleeve, worm, pool, mixer and drawplate) are perfectly clean (see the Maintenance Section). -
Page 8: Operation
Operation INSTALLATION OF THE DRAWPLATE AND START-UP OF PRODUCTION Make sure the machine is switched off. Withdraw the drawplate (Fig.5A) requested by the container filled with water where it was put after its last use. Thoroughly rinse with plenty of running warm water in order to have the piece at the right temperature (see Maintenance). -
Page 9: Maintenance
Maintenance • Worm: (Fig.13F): after disassembling the ring nut and the drawplate, the worm can easily be taken off from the machine by pushing its spiral from the internal end. COVER AND POOL CLEANING Eliminate the dough residue and make sure to thoroughly clean the most remote-access pieces: connections of the worm and mixer movements (Fig 14), extrusion sleeve, cover and pool internal parts. -
Page 10: Troubleshooting
Maintenance If servicing operations require repairs to electrical system and/or replacement of bearings or mechanical components, call an expert technician or your local dealer. MACHINE WHIRR The whirring noise emitted by the machine has been measured on an identical sample machine in compliance with standard DIN 45635. - Page 11 Figure Drawings...
- Page 12 Figure Drawings...
- Page 13 Figure Drawings...
-
Page 14: Parts Breakdown
Parts Breakdown Model PM-IT-0002 13317... - Page 15 Parts Breakdown Model PM-IT-0002 13317 Item No. Description Position Item No. Description Position Item No. Description Position 42532 Rear Casing for 13317 42542 Pulley Diameter 50 SPZ 1 for 13317 42552 Motor 63 220 Volt 50/60 Hz for 13317 42533...
-
Page 16: Electrical Schematics
Electrical Schematics Model PM-IT-0002 13317... -
