Omcan PM-IT-0008 Instruction Manual

Floor model pasta machines
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

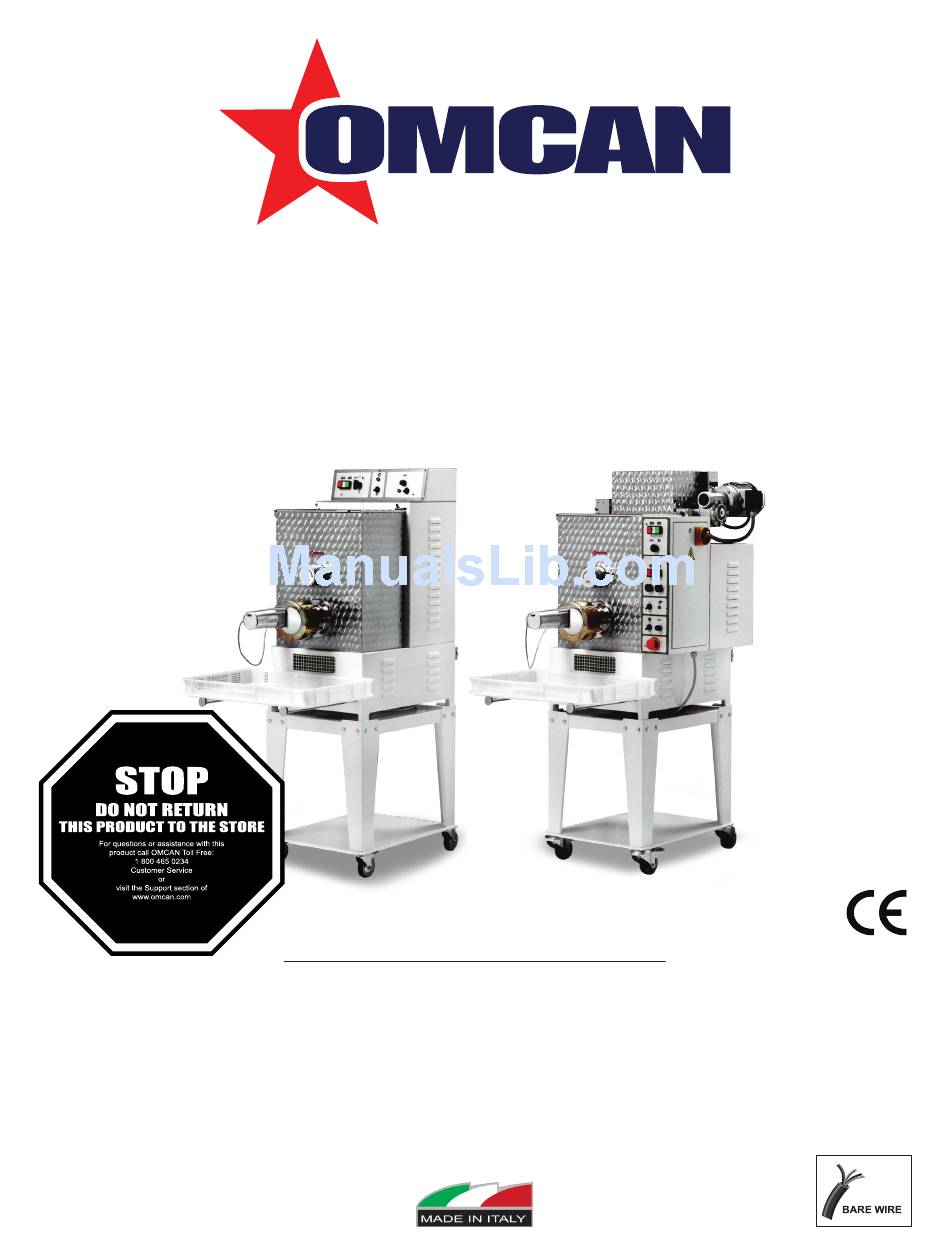

Floor Model Pasta Machines
Models PM-IT-0008, 0015, 0025, 0025-T, 0040
Items 13364, 13397, 16643, 13236, 13440
Instruction Manual
Revised - 04/06/2017
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-IT-0008 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan PM-IT-0008

Summary of Contents for Omcan PM-IT-0008

  • Page 1 Floor Model Pasta Machines Models PM-IT-0008, 0015, 0025, 0025-T, 0040 Items 13364, 13397, 16643, 13236, 13440 Instruction Manual Revised - 04/06/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model PM-IT-0008 / Model PM-IT-0015 / Model PM-IT-0025 Model PM-IT-0025-T / Model PM-IT-0040 Section Page General Information ---------------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------------- 4 - 6 Technical Specifications --------------------------------------------------------------------------------- 6 Installation ---------------------------------------------------------------------------------------------- 7 - 9...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Strictly do not start up the machine without the protective panelling. This may jeopardise personnel safety and machine serviceability. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.

  • Page 6: Technical Specifications

    Safety and Warranty Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. Please see www.omcan.com/warranty.html for complete info. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty.

  • Page 7: Installation

    Installation Install and use the machine in a room that can be efficiently ventilated, and where the floor is smooth and compact and easy to clean. WARNING: While the machine is operating, in order to obtain a product with the right thickness and humidity, avoid air currents which will cause precocious drying of the product together with its deterioration.
  • Page 8 Installation • Check the efficiency of the double safety device on the lid. The device sets off two micro-switches; one is controlled by the lid hook (Figure 7A), inside the stop slot; and the other from the lid itself. To check this, make sure that microswitch in the slot begins to be enabled when the hook has not yet gone out of the slot itself.

  • Page 9: Operation

    Installation • At any rate, with average dough, after 3 - 5 minutes, check the external temperature of the ring nut and if it seems too high, gradually open the regulating valve. Frequently check the temperature and regulate water flow, tending to keep temperature constant. NOTE: If the product is kneaded at an excessive temperature, it tends to change colour and/or blanch slightly.
  • Page 10 Operation going through a drawplate. USE OF THE MACHINE Only after making sure that the machine is completely clean, especially all the parts which are directly in contact with the product (extrusion sleeve, Archimedean screw, pool, mixer, drawplate, knife, lid, control system;...
  • Page 11 Operation and the ring nut (Figure 21B) is well-screwed on. • Finally block the mixer in its place, thanks to the head-knob (Figure 21C). 2. Lift the tank lid by turning the coupling lever (Figure 22A) and always put in the pre-established ingredients in the following sequence: flour and then, after closing the cap, all the other liquid elements.

  • Page 12: Maintenance

    Operation • Close the lid and put the selector on position . Press the start button. • Add the liquid part pouring it gradually but as quickly as possible through the small hole in the lid. • At the end of the kneading operation, which should take around 10 minutes, make sure the product has the right thickness and should look like coffee beans (check through the small holes of the lid).
  • Page 13 Maintenance be taken off the machine by pushing its spiral from the internal end. LID AND POOL CLEANING Eliminate the dough residue and be sure to thoroughly clean the most remote-access pieces: connections of the Archimedean screw (Figure 25A) and mixer movements (Figure 25B), extrusion sleeve (Figure 25C), pool internal parts and lid grille in the grille coupling points (Figure 25D).

  • Page 14: Troubleshooting

    Maintenance BELT TIGHTENING When performing the above mentioned maintenance or when the machine is not working properly, (loss of rounds) check the correct stretching of the transmission belt. For this reason, disassemble the rear panel from the machine and make sure that the belt (Figures 26, 28, 30C) is tight enough. If necessary, use the regulating system (Figures 26B, 28A, 30A), by moving the motor and therefore, tightening the belt, without of course exaggerating.

  • Page 15: Illustrated Drawings

    Troubleshooting REFERENCE Item Number Model Number Description Manufacturer Model Number Pasta Machine 18 lb / 8 kg per Hour 13364 PM-IT-0008 TR75 0.75 HP / 559 W 110V/60/1 Pasta Machine 33 lb / 15 kg per Hour 13397 PM-IT-0015 TR95...
  • Page 16 Illustrated Drawings Figure 7 Figure 8 Figure 9 Figure 12 Figure 11 Figure 10 Figure 14 Figure 15 Figure 13 Figure 18 Figure 17 Figure 16...
  • Page 17 Illustrated Drawings Figure 19 Figure 20 Figure 21 Figure 23 Figure 22 Figure 24 Figure 27 Figure 25 Figure 26...

  • Page 18: Parts Breakdown

    Illustrated Drawings Figure 29 Figure 28 Figure 30 Parts Breakdown Model PM-IT-0008 13364 Item No. Description Position Item No. Description Position Item No. Description Position 77675 Sleeve for TR75 77694 Upper Sprocket Z=18 3/8 for TR75 77713 Knife Support for TR75...
  • Page 19 Parts Breakdown Model PM-IT-0015 13397 Item No. Description Position Item No. Description Position Item No. Description Position 77730 Screw for TR951PH 77747 Upper Shaft for TR951PH 77764 Fattener for TR951PH 77731 Sleeve for TR951PH 77748 Reducer Pulley for TR951PH 77765 Micro Switch MS30 for TR951PH 77732 Lock Ring for TR951PH...
  • Page 20 Parts Breakdown Model PM-IT-0025 16643 Model PM-IT-0025-T 13236 Item No. Description Position Item No. Description Position Item No. Description Position 37967 Worm for TR110 77791 Upper Sprocket Z=22 3/8 for TR110 77808 Knife Shelf Protection for TR110 77780 Sleeve for TR110 77792 Upper Shaft for TR110 77809...
  • Page 21 Parts Breakdown Model PM-IT-0040 13440 Item No. Description Position Item No. Description Position Item No. Description Position 37967 Worm for TRD110 77845 Bearing 4200 2RS for TRD110 77811 Micro Switch FR515 for TRD110 77780 Sleeve for TRD110 77792 Upper Shaft for TRD110 77812 Micro Switch MS09 for TRD110 31248...
  • Page 22 Parts Breakdown Model PM-IT-0008 13364...
  • Page 23 Parts Breakdown Model PM-IT-0015 13397...
  • Page 24 Parts Breakdown Model PM-IT-0025 16643 Model PM-IT-0025-T 13236...
  • Page 25 Parts Breakdown Model PM-IT-0040 13440...

  • Page 26: Electrical Schematics

    Electrical Schematics Model PM-IT-0008 13364 Description Position Description Position Description Position Relay Thermal Protection Phase Motor Start Button Stop Transformer Microswitch General Reversal Fuse Protection Ventilation 2A Signaling Ventilation Function Enabling Ventilation Fuse Protection 2A Start Reposting General Enabling Engine Cut...
  • Page 27 Electrical Schematics Model PM-IT-0015 13397 K1 14/22 95 NC 2 6 12 SPEED ADJUSTMENT MICRO M3 POTENTIOMETER Reverse Gear 3 5 11 MICRO M3 SCEDA MOTOR 1-13 BOARD CUTTING KNIFE 230 400 TR 100 VA 0 230 01 24 TR95=9.5 L1 L2 220 220 24V 24V...
  • Page 28 Electrical Schematics Model PM-IT-0025 16643 K1 14/22 95 NC 2 6 12 SPEED ADJUSTMENT MICRO M3 POTENTIOMETER Reverse Gear 3 5 11 MICRO M3 SCEDA MOTOR 1-13 BOARD CUTTING KNIFE 230 400 TR 100 VA 0 230 01 24 TR110=12.50 L1 L2 220 220 24V 24V...
  • Page 29 Electrical Schematics Electrical Schematics Model PM-IT-0025-T 13236 Model PM-IT-0025-T 13236 Description Position Description Position Description Position Description Position Description Position Description Position Relay Thermal Protection Phase Motor Start Button Relay Thermal Protection Phase Motor Start Button Stop Transformer Microswitch General Stop Transformer Microswitch General...
  • Page 30 Electrical Schematics Model PM-IT-0040 13440...
  • Page 31 Electrical Schematics Model PM-IT-0040 13440 100K SEL1 Scheda Crouzet...

  • Page 32: Electrical Schematics

    Electrical Schematics Model PM-IT-0040 13440 Description Position Description Position Description Position Knead Extruder Contactor Shelter tank, 1° Gear Tub, 2° Knead Extruder Contactor Shelter tank, 2° Imp-traf selector SEL1 Thermal Knead Extruder Knife Guard Switch Knife Board Impasta Bath Contactor, 2° Stop Bath, 1°...

  • Page 33: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 34: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 35: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 36 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
