Summary of Contents for Omcan PM-IT-0080

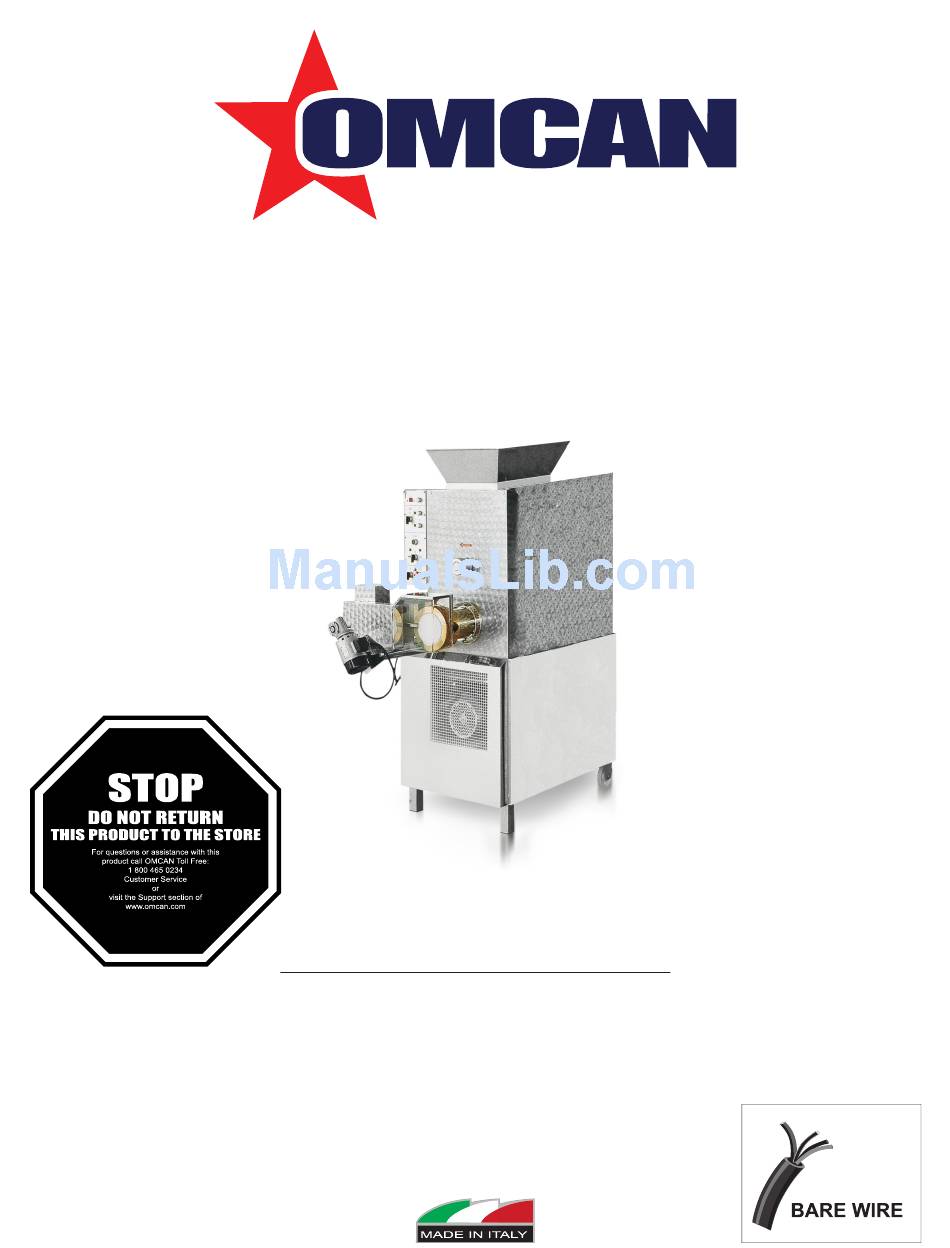

- Page 1 Pasta Machine Model PM-IT-0080 Item 13286 Instruction Manual Revised - 08/21/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PM-IT-0080 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 8 Operation --------------------------------------------------------------------------------------- 8 - 11 Maintenance --------------------------------------------------------------------------------- 11 - 13 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 6: Technical Specifications
Safety and Warranty DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model PM-IT-0080 Tank Capacity 110 lbs. / 50 kgs. Power for Worm 5.5 HP / 4.1 kW Power for Paddle 2.5 HP / 1.86 kW Output per Hour 176 lbs. -
Page 7: Installation
Installation INSTALLATION, CONNECTION AND SET-UP Install and use the machine in a room that can be efficiently ventilated, and where the floor is smooth and compact and easy to clean. WARNING: While the machine is operating, in order to obtain a product with the right thickness and humidity, avoid air currents which will cause precocious drying of the product together with its deterioration. -
Page 8: Operation
Installation CONTROL OF THE INSTALLATION NOTE: Every drive is voluntarily run by the start button Turn the general switch to position “1” (Fig.25 A) and check the following: • Make sure that the mixer is rotating counter-clockwise, facing the front of the machine, when the switch (Fig.26) is placed on the “mix”... - Page 9 Operation ratio. Moreover, in order to better use the machine, the product inside the pool has to be higher than at a minimum level which coincides more or less with the position of the mixer axle. USEFUL ADVICE IN ORDER TO OBTAIN A GOOD DOUGH Any kind of flour can be used (bran or bran flour).
- Page 10 Operation CUTTING GROUP The cutting group is chosen on the basis of the length of the pasta to be cut. LONG-TYPE PASTA Use group 1 with knife with alternative movement. Release the fixed handwheel (Fig.10 A) and wheel the group (Fig.10 B) until reaching the edge of the guide slit, the knife (Fig.10 C) must be at about the same height as the drawplate axle).
-
Page 11: Maintenance
Operation The system functions automatically and maintains the same temperature shown on the extrusion sleeve. FUNCTIONING OF THE DISPLAY CONTROL (FIG.15 C) AND TEMPERATURE SETTING When the machine is turned on, the display button flashes for a few seconds and, therefore, shows the momentary temperature on the extrusion sleeve. - Page 12 Maintenance • Metal ring, drawplate and filter: unscrew the metal ring with the appropriate wrench (Fig.30 A) being careful not to let any pieces fall, since the metal ring is moved from its place, the product and parts still weigh a few kilos and can easily slip from your hands, causing damage both to people or to the pieces themselves.
-
Page 13: Troubleshooting
Maintenance MIXER SUPPORT (FIG.34) Use registered fats for foods (USDA-H1) (in case of requirement contact your local dealer); perform maintenance daily. PUSH-BEARING SUPPORT (FIG.35 A) AND CHAIN (FIG.36 A) Use mineral grease type SAE MR3; maintenance needs to be carried out every six months. When controlling, grease the chains with as much oil as required. - Page 14 Troubleshooting The product looks unacceptable Too short kneading time. Increase the kneading time. even after the initial minutes: it Not enough water percentage. Increase the quantity of breaks and loses flour. water in order to respect the aforementioned percentage. The product does not come out of The blocking of the drawplate Disassemble and clean the the drawplate.
- Page 15 Figure Drawings...
- Page 16 Figure Drawings...
- Page 17 Figure Drawings...
- Page 18 Figure Drawings...
- Page 19 Figure Drawings...
- Page 20 Figure Drawings...
-
Page 21: Figure Drawings
Figure Drawings... -
Page 22: Parts Breakdown
Parts Breakdown Model PM-IT-0080 13286... - Page 23 Parts Breakdown Model PM-IT-0080 13286...
- Page 24 Parts Breakdown Model PM-IT-0080 13286...
- Page 25 Parts Breakdown Model PM-IT-0080 13286 Item No. Description Position Item No. Description Position Item No. Description Position 62520 Mixer Motor for TR150 62538 Ring for TR150 62556 Distance for TR150 62521 Motor Pulley for TR150 62539 Cylinder for TR150 62557...
-
Page 26: Electrical Schematics
Electrical Schematics Model PM-IT-0080 13286... - Page 27 Electrical Schematics Model PM-IT-0080 13286...
- Page 28 Electrical Schematics Model PM-IT-0080 13286...
- Page 29 Electrical Schematics Model PM-IT-0080 13286...
-
Page 30: Electrical Schematics
Electrical Schematics Model PM-IT-0080 13286... -
Page 31: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
