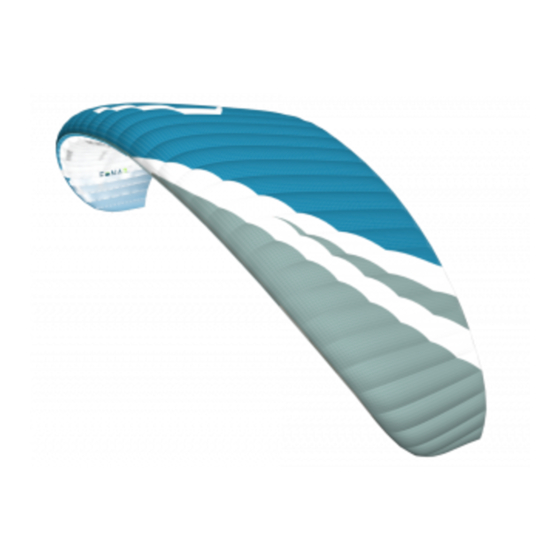

- Page 1 Glider user's manual | EONA 3 SUPAIR SAS PARC ALTAÏS 34 RUE ADRASTÉE 74650 ANNECY CHAVANOD User’s manual FRANCE RCS 387956790 Revision Index : V1 18/01/2021 SUPAIR | EONA 3| page 1...
- Page 2 Glider user's manual | EONA 3 Thank you for choosing to fly our EONA 3 to paraglide with. We are delighted to have you on-board to share our passion for paragliding. SUPAIR has been designing producing and selling accessories for free flying activities since 1984.
-
Page 3: Table Of Contents
Glider user's manual | EONA 3 Contents Introduction Technical specifications Equipment overview Connecting the glider Pre-flight preparation Take-off Flight characteristics End of flight Fast descents Flight incidents Line layout Materials Measurement table Certificates Maintenance Mandatory checks Warranty Disclaimer Pilot equipment... -
Page 4: Introduction
The well though out design and choice of materials were guided by the same quality and longevity objectives. The EONA 3 glider as described in this user manual is EN EN 926 -1 : 2015 & 926 - 2 : 2013 Classe A. Certified. -
Page 5: Technical Specifications
Glider user's manual | EONA 3 Technical data Voile EONA 3 Number of cells Flat surface area (m²) 21,8 26,6 28,7 Span (m) 10,23 10,73 11,3 11,74 12,2 Chord (m) 2,65 2,78 2,93 3,04 3,16 Flat Aspect Ratio Projected surface (m²) - Page 6 Glider user's manual | EONA 3 In-flight weight range PTV (kg) EONA 3 XS EONA 3 S EONA 3 M EONA 3 ML EONA 3 L In-flight weight range (kg) Perfect In-flight weight range (kg) to optimize flight performances SUPAIR...
-
Page 7: Equipment Overview
Glider user's manual | EONA 3 Equipment overview Leading edge Trailing edge Stab Inner Surface Outer surface A riser A' riser (for big ears) B riser C riser Brake line Brake retaining strap Brake handle Riser hook-up loop TREK 130 L backpack... -
Page 8: Connecting The Glider
Glider user's manual | EONA 3 Connecting the glider Opening the wing Choose a flat or lightly angled training hill without obstacles or wind. Open your wing and arrange it in a crescent shape. Check the fabric and the lines for any sign of wear or damage. - Page 9 Glider user's manual | EONA 3 CONNECTING THE GLIDER Brake line length fisherman's knot Brake line lengths are set at the factory to allow optimal glider control. However, if they do not suit you they can be adjusted to your liking.
-
Page 10: Pre-Flight Preparation
Glider user's manual | EONA 3 Pre-flight preparation The EONA 3 glider was designed to help new pilots with their progression. To discover your new wing, we will advise you to conduct your first small flights in calm conditions on a school training hill or a familiar site you are used to flying with your own harness. -
Page 11: Take-Off
Glider user's manual | EONA 3 Take-off The design team has strived to produce optimum characteristics for easy inflation in all conditions, whether in light or high winds you will enjoy the progressive behaviour while launching. However before the first flight, practice ground-handling in order to become familiar with your new glider. It is possible to inflate with the front- or reverse-launch methods. -
Page 12: Flight Characteristics
Glider user's manual | EONA 3 Flight Caracteristics Here are a few tips to take advantage of your EONA 3 wing's performance in flight: : « Hands up » speed or trim speed Flying « hands up » will provide the best glide ratio in nil wind. -
Page 13: End Of Flight
Towing The EONA 3 wing can be towed up. Fly only with certified gear operated by qualified personal and only after taking a towing clinic. The towing force must correspond to the weight of the equipment, and the pulling sequence can only start when the wing is fully inflated and stable over the pilot's head. -
Page 14: Fast Descents
Glider user's manual | EONA 3 Fast Descents The following techniques should only be used in emergencies and require prior training. Appropriate analysis and anticipation of the conditions will often prevent the need to use fast descent techniques. We advise you to practice in still air and preferably above water. - Page 15 To prevent stressing we do not recommend combining spiral dives with "Ears". Conforming to the EN A, the EONA 3 glider does not show any tendency to stay in a locked spiral configuration and will return by itself to a normal flying angle in less than two full rotations when the toggles/brakes are brought back up.
-
Page 16: Flight Incidents
Glider user's manual | EONA 3 Incidents de vol Stall This technique is not recommended as it requires intense physical impute. It is not a safe descent technique. Asymmetric collapses Any paraglider may occasionally collapse due to turbulence or a piloting error. In the event of an asymmetric collapse your priority must be to stay clear of the terrain and regain level flight. -
Page 17: Line Layout
Glider user's manual | EONA 3 Line layout diagram SUPAIR | EONA 3| page 17... -
Page 18: Materials
Glider user's manual | EONA 3 Materials Fabrics Producer Reference Outer surface Dominico Tex Dominico D30 soft Inner Surface Dominico Tex Dominico D20 soft Supported ribs Porcher Sport 9017E29 Skytex 40 Hard Compression straps and D ribs Porcher Sport 9017E29 Skytex 40 Hard... -
Page 19: Measurement Table
Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size XS Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg... - Page 20 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size XS Lines individual lenghts A LINES B LINES C LINES D LINES BRAKE LINES NAME SEWN NAME SEWN NAME SEWN NAME SEWN NAME SEWN 4293 4033 4234 3974...
- Page 21 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size S Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg...
- Page 22 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size S A LINES B LINES C LINES D LINES BRAKE LINES NAME SEWN NAME SEWN NAME SEWN NAME SEWN NAME SEWN 4480 4220 4419 4159 4549 4289 1237...
- Page 23 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size M Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg...
- Page 24 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Taille M A LINES B LINES C LINES D LINES BRAKE LINES NAME SEWN NAME SEWN NAME SEWN NAME SEWN NAME SEWN 4732 4472 4662 4402 4795 4535 1297...
- Page 25 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 size ML Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg...
- Page 26 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Taille ML A LINES B LINES C LINES D LINES BRAKE LINES NAME SEWN NAME SEWN NAME SEWN NAME SEWN NAME SEWN 4909 4649 4838 4578 4975 4715 1342...
- Page 27 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Size L Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg...
- Page 28 Glider user's manual | EONA 3 Maintenance sheet Glider EONA 3 Taille L Lines individual lenghts A LINES B LINES C LINES D LINES BRAKE LINES NAME SEWN NAME SEWN NAME SEWN NAME SEWN NAME SEWN 5101 4841 5035 4775...
-
Page 29: Certificates
Glider user's manual | EONA 3 Certification EONA 3 XS EN 926 -1 : 2015 & 926 - 2 : 2013 Class A. N° PG-1764.2020 Classification: In accordance with standards EN 926- PG_1764.2020 1:2015, EN 926-2:2013 and LTF NFL II- 91/09: 19.03.2021... - Page 30 Glider user's manual | EONA 3 Certification EONA 3 S EN 926 -1 : 2015 & 926 - 2 : 2013 Class A. N° PG-1732.2020 Classification: In accordance with standards EN 926- PG_1732.2020 1:2015, EN 926-2:2013 and LTF NFL II- 91/09: 18.02.2021...
- Page 31 Glider user's manual | EONA 3 Certification EONA 3 M EN 926 -1 : 2015 & 926 - 2 : 2013 Class A. N° PG-1738.2020 Classification: In accordance with standards EN 926- PG_1738.2020 1:2015, EN 926-2:2013 and LTF NFL II- 91/09: 18.02.2021...
- Page 32 Glider user's manual | EONA 3 Certification EONA 3 ML EN 926 -1 : 2015 & 926 - 2 : 2013 Class A. N° PG-1760.2020 Classification: In accordance with standards EN 926- PG_1760.2020 1:2015, EN 926-2:2013 and LTF NFL II- 91/09: 18.02.2021...
- Page 33 Glider user's manual | EONA 3 Certification EONA 3 L EN 926 -1 : 2015 & 926 - 2 : 2013 Class A. N° PG-1763.2020 Classification: In accordance with standards EN 926- PG_1763.2020 1:2015, EN 926-2:2013 and LTF NFL II- 91/09: 18.02.2021...
-
Page 34: Maintenance
• Lines (no excessive wear, no breakages or folds), maillons, attachment points and carabiners • Materials selected for the EONA 3 ensure the best compromise for lightness and longevity. However in certain conditions, for example excessive exposure to UV or abrasion or exposure to chemical products, the glider must be submitted to a full check in a qualified facility. -
Page 35: Mandatory Checks
Most of them are recyclable. If your EONA 3 has reached the end of its life, you can separate all metallic and plastic parts from the cloth and sort out refuse accor- ding to your country's practices. We advise you to contact appropriate organisations for the recycling of textile parts. - Page 36 SUPAIR-SAS Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33 4 50 45 75 29 RCS 387956790...
