User's manual ACRO 3
fdh
ACRO 3 manual

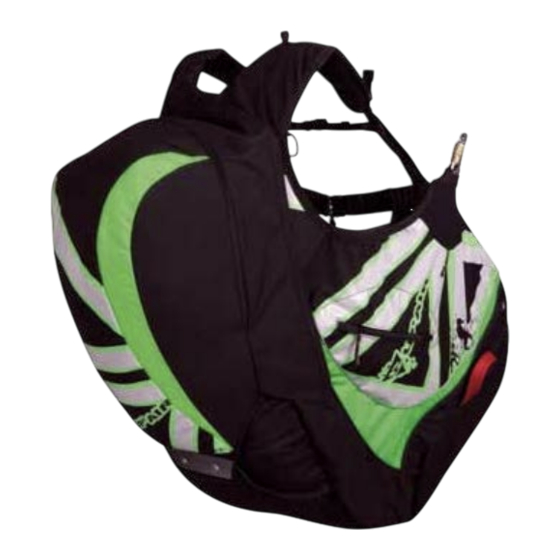

Harness ACRO 3
SUP'AIR - VLD
34 rue Adrastée
Parc Altaïs
74650 CHAVANOD
FRANCE
45°54.024'N / 06°04.725'E
SUP'AIR
_ACRO3
Page 1
SUP'AIR manufactures its products in Europe. Most of the components used are Made in Europe.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SUPAIR Harness ACRO 3
Summary of Contents for SUPAIR Harness ACRO 3

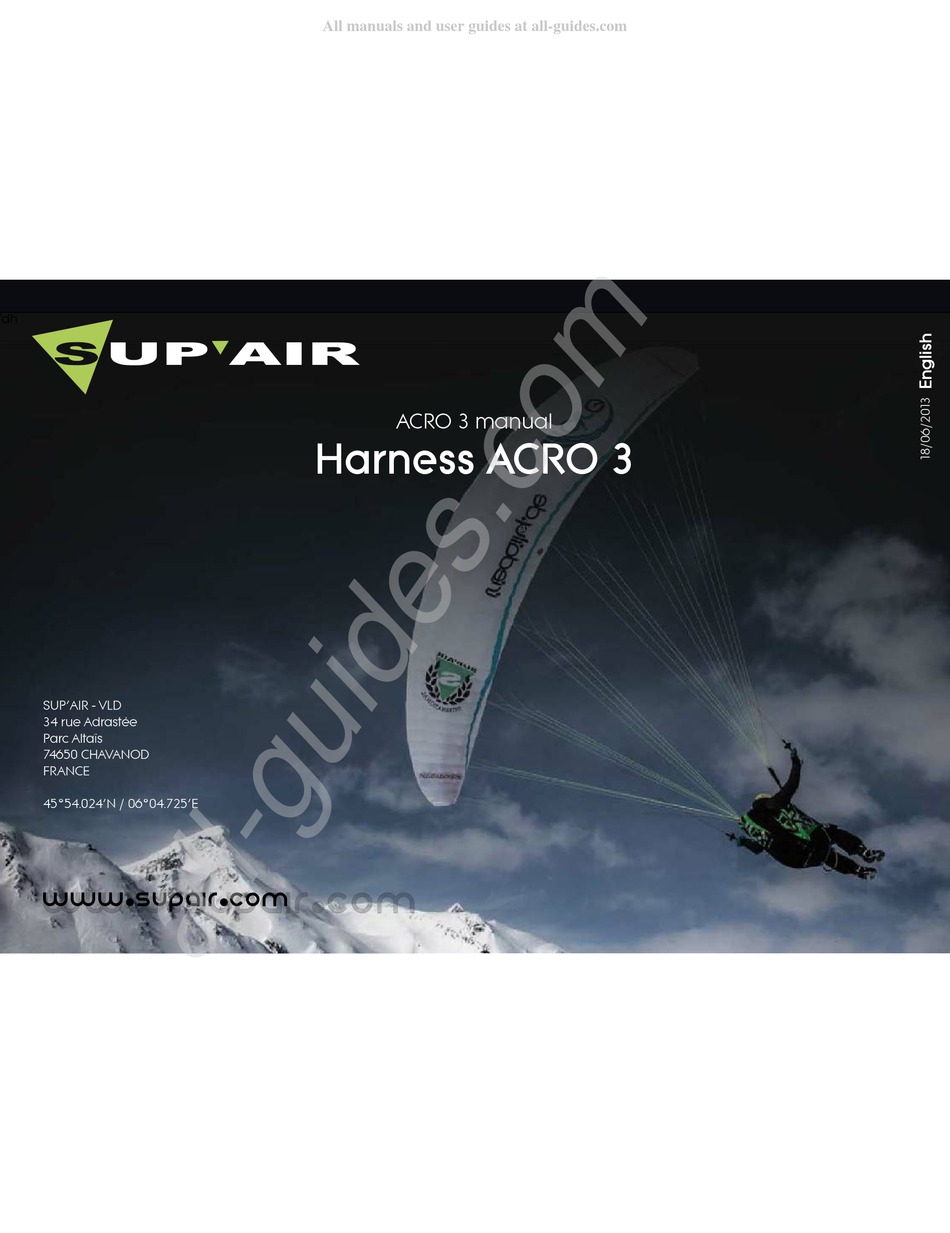

- Page 1 All manuals and user guides at all-guides.com User’s manual ACRO 3 ACRO 3 manual Harness ACRO 3 SUP’AIR - VLD 34 rue Adrastée Parc Altaïs 74650 CHAVANOD FRANCE 45°54.024’N / 06°04.725’E SUP’AIR _ACRO3 Page 1 SUP'AIR manufactures its products in Europe. Most of the components used are Made in Europe.
- Page 2 We advise you to read it carefully ! On our website www.supair.com, you will find the last up to date information about this product. If you have any further questions, feel free to ask one of our retailers. And of course, the entire SUP'AIR team are at your disposal through info@supair.com...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com User’s manual ACRO 3 Table of contents Introduction Landing Technical specifications Using the reserve parachute. Size choice Mandatory controls Nomenclature Maintenance Harness overview Washing and harness maintenance. accessories assembly Storage and transport. Seat-plate Product longevity. -
Page 4: Introduction
All manuals and user guides at all-guides.com User’s manual ACRO 3 Introduction If you are reading those lines, it is because you are eager to enter and seat inside your new toy to defy gravity with series of spectacular daring maneuvers or simply to escape the daily routine. -
Page 5: Technical Specifications
All manuals and user guides at all-guides.com User’s manual ACRO 3 Technical specifications Model ACRO3 ACRO3 ACRO3 Pilot size 155 - 165 cm 160 - 190 cm 185 - 200 cm Pilot weight <70 kg 65 - 85 kg 80 - 100 kg Backrest height (cm) Harness weight (+ carabiners+speedbar) 6,18 kg... -
Page 6: Size Choice
Nonetheless we advise you to try out the harness under a hanging device and in different sizes at one of our retailers in order to choose the correct size. For a complete list of our retailers, please click here : www.supair.com Size... -
Page 7: Nomenclature
All manuals and user guides at all-guides.com User’s manual ACRO 3 Nomenclature Nomenclature 1 ACRO3 harness 1 Split risers ( for reserve parachute located beneath the seat ). 1 Fiberglass reinforced 1 Long foot-rest wooden seat plate (ref : PLAACRO). 1 Strap protection kit 1 1 BUMPAIR 17 cm 2 Riser bridle adjustment... -
Page 8: Harness Overview
All manuals and user guides at all-guides.com User’s manual ACRO 3 Harness overview Chest strap quick release buckle. Safe-T-strap. Leg strap quick release buckle. Chest strap adjustment. Backrest tilt adjustment. 45 mm self-locking carabiners. Dorsal reserve parachute pocket Dorsal reserve parachute handle Reserve parachute handle for a pod located beneath the seat. -
Page 9: Accessories Assembly
All manuals and user guides at all-guides.com User’s manual ACRO 3 Accessories assembly Installing the ACRO 3 Pilot's left side. seat-plate. Face the front of the harness and grab Rear the rear section of the seating fabric ( Rear section of the Front area to pull it toward yourself. -
Page 10: Bumpair Assembly
All manuals and user guides at all-guides.com User’s manual ACRO 3 Accessories assembly BUMPAIR assembly Accessing the Bumpair pocket. Lift the Velcro® flap located above the shoulder strap. Fully open the Zip found under the flap ( not to be mistaken for the storage dorsal pocket zip ). Insert the Bumpair starting from its thickest section. -
Page 11: Foot-Rest
All manuals and user guides at all-guides.com User’s manual ACRO 3 Accessories assembly Installing the foot-rest. For each side, move the foot-rest strap inside the strap buckles located to the front and side of the seat, then through the ad- justment buckles as seen in the following diagram : Installing the ad-... -
Page 12: Front Protection
All manuals and user guides at all-guides.com User’s manual ACRO 3 Accessories assembly Installing the ventral ( front ) protection. Ventral bridle schematic ( viewed facing the pilot ). Protection kit. For better explanations in the following sche- matic, the protections were colored in red. matic, the protections were colored in red. -
Page 13: Speed-Bar System
All manuals and user guides at all-guides.com User’s manual ACRO 3 Accessories assembly Installing the speed-bar system. Push the accelerator cord through the grommet located to the front, and right side of the seat. The cord rides through inside the harness between the bridles and the outer skirt. -
Page 14: Installing The Reserve Parachutes
All manuals and user guides at all-guides.com User’s manual ACRO 3 Reserves assembly Thank you for carefully reading the following! We advise you to have the initial rescue parachute installation done by someone knowledgeable with the process. Warning before starting the installation pro- - If only one reserve parachute is installed : If you install two reserve parachutes : cedure :... -
Page 15: Risers / Harness Connection
All manuals and user guides at all-guides.com User’s manual ACRO 3 Installing the reserve parachutes. Rescue parachute riser connection. 2. Push the riser through the 3. Create a new twisted 4. Repeat procedures 1,2,3 1. Place the Maillon Rapide® upper free “8” shaped toric loop with the O ring before with an additional O ring for ( locking gate toward the top,... -
Page 16: Parachute Installation Inside The Under-Seat Pocket
All manuals and user guides at all-guides.com User’s manual ACRO 3 Parachute installation inside the under-seat pocket. Specifics for the parachute pocket Harness-reserve para- Lateral flap. located beneath the seat : chute riser flap - Lateral one flap pocket (+ one sup- Handle (ref. -
Page 17: Dorsal Reserve Parachute Pocket
All manuals and user guides at all-guides.com User’s manual ACRO 3 Installing the reserve parachute inside the dorsale pocket. Parachute riser flap. Left upper flap grom- Dorsal reserve pocket's main features : met. - 6 flap dorsal reserve pocket. Upper left flexible riser Right upper flap grom- - Locked mode via safety pins. -
Page 18: Adjustments
All manuals and user guides at all-guides.com User’s manual ACRO 3 Adjusting the seating area. Backrest tilt adjustment. Shoulder straps adjust- Adjust the angle by puling the black ments. strap and bring the backrest closer to Tighten the shoulder straps by pulling a vertical setting, or on the green cord cord «... -
Page 19: Flight Phases
All manuals and user guides at all-guides.com User’s manual ACRO 3 Flight phases Pre-Flight check. • Check that the harness and the carabiners did are not damaged. • Check thoroughly that the rescue handle’s cable end has not got outside the snappers’ flaps •... -
Page 20: Take-Off
All manuals and user guides at all-guides.com User’s manual ACRO 3 Flight phases Take-off Check that you are securely fastened inside your harness with its speed-bar properly connected, so not to impede your running phase. Do not release your hands from the toggles when close to the ridge. In flight Please set the distance between the two carabiners according to aerology conditions and to the wing manufacturer's recommenda- tions. -
Page 21: Using The Reserve Parachute
All manuals and user guides at all-guides.com User’s manual ACRO 3 Using the reserve parachute. We strongly advise you to check frequently the location of the reserve parachute handle location. To do this, we recommend that you lower your right hand following the risers. This movement should be done without looking. By doing so, you will maximize your chanc- es of a rapid extraction if something went wrong and throwing the reserve parachute was called for. -
Page 22: Maintenance
• These carabiners must never be used for anything else than paragliding (not for climbing, no towing, etc.). • Carabiners must be replaced by new ones every five ( 5 ) years by identical models or models recommended by the manufac- turer ( SUPAIR ). SUP’AIR... -
Page 23: Repair
SUP’AIR also offers the possibility for its products to be repaired beyond the end of the warranty period. Please contact us either by telephone or by E-mail sav@supair.com in order to receive a quotation. Materials Fabrics CORDURA®... -
Page 24: Warranty
All manuals and user guides at all-guides.com User’s manual ACRO 3 Warranty SUP’AIR takes the greatest care in the design and production of its product line, hence, offers a five (5) years limited warranty from the purchase date against any manufacturing defect or design issues occurring during normal use. Any damage or degradation resulting from incorrect or abusive use, abnormal exposure to aggressive factors, including, but not limited to;... -
Page 25: Complements/Accessories
Maillons for rescue connection. MAILCARIN6 6 mm stainless steel Maillons Rapides® (set). 42 g (Unit) All necessary technical information comes with the product and/or is easily accessible via our website at www.supair.com SUP’AIR _ACRO3 Page 25 SUP'AIR manufactures its products in Europe. Most of the components used are Made in Europe. -
Page 26: Service Book
All manuals and user guides at all-guides.com User’s manual ACRO 3 Maintenance manual This page will help you to record all the life stages of your ACRO3 harness. Serial number : Purchase date Care Care Resale Resale Owner’s name Date Date Workshop’s name/ Buyer’s name Workshop’s name/ Buyer’s name... - Page 27 All manuals and user guides at all-guides.com SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 45°54.024’N / 06°04.725’E SUP'AIR manufactures its products in Europe. The majority of the com- ponents used come from Europe.
