Summary of Contents for SUPAIR TASKA

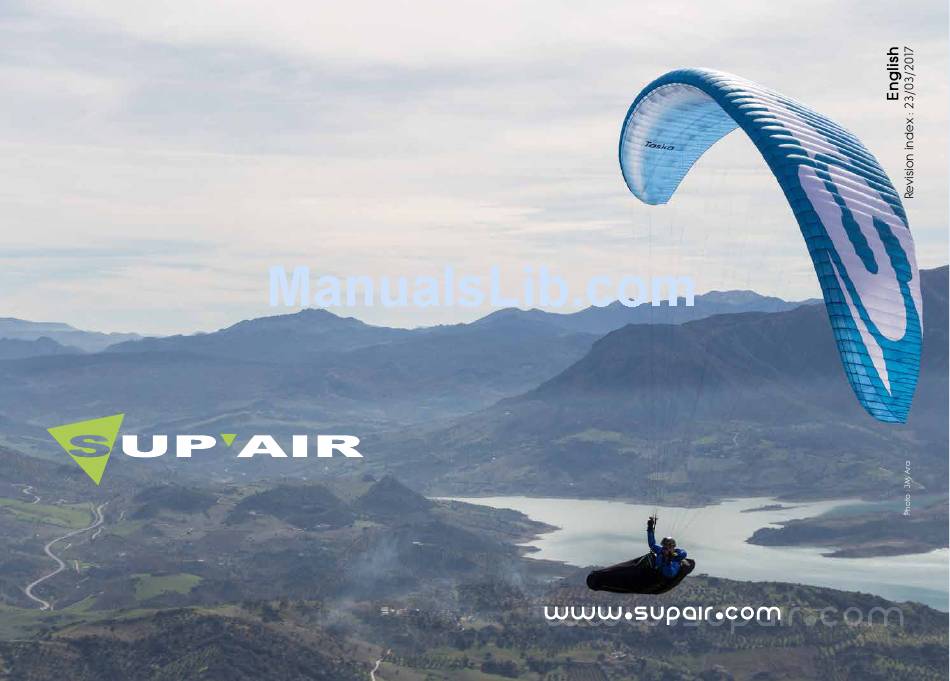

- Page 1 TASKA User’s manual TASKA SUP’AIR - VLD 34 rue Adrastée Parc Altaïs 74650 Annecy - Chavanod FRANCE 45°54.024’N / 06°04.725’E SUP’AIR _TASKA Page 1...
- Page 2 TASKA Thank you for choosing to fly our TASKA to paraglide with. We are delighted to have you on-board to share our passion for paragliding. SUP'AIR has been designing producing and selling accessories for free flying activities since 1984. By choosing a SUP'AIR product you benefit from almost thirty years of expertise, innovation and customer care.
-
Page 3: Table Of Contents
TASKA Contents Introduction Technical specifications Equipment overview Connecting the glider Pre-flight preparation Take-off Flight characteristics End of the flight Specific practices Fast descents Flight incidents Line layout Materials Measurement table Certificates Maintenance Recycling Mandatory checks Warranty Disclaimer... -
Page 4: Introduction
Welcome to the world of free flying : a shared world of passion. The TASKA meets all the sporting pilot's requirements whishing to fly under an accessible but yet powerful C glider. It was designed for high performancel flying and will give the pilot maximum comfort to optimize long distance XC adventures. - Page 5 TASKA Technical data Glider TASKA Cell number Flat surface area (m²) 22,5 24,3 25,6 27,5 Span (m) 11,95 12,47 12,75 13,21 Chord (m) 2,33 2,43 2,48 2,57 Flat Aspect Ratio 6,35 6,35 6,35 6,35 Projected surface area (m²)
-
Page 6: Equipment Overview
TASKA Equipment overview Leading edge Trailing edge Stabilizer Intrados Extrados A riser « A » split risers (for Big Ears) B riser C riser Brake line Brake holder Brake handle Riser hook-up loop Accelerator/Speedbar. Accelerator/Speedbar Split-hook. Accelerator/Speedbar bar. -
Page 7: Connecting The Glider
A,B.C, risers as well as the brake lines neatly. Knots or tangles can not be present. Choosing an adapted harness. The TASKA glider was certified EN C with a EN1651 & LTF certified harness and hence can be flown with most harnesses models found on the market today. Meaning that it can be flown with most harnesses models found on the market today.We wil advise you to... - Page 8 The default factory maximum brake line length is : 55.5 cm cm for an TASKA size XS 54 cm cm for an TASKA size S 59 cm cm for an TASKA size M Garde 54 cm...
-
Page 9: Pre-Flight Preparation
TASKA PRE-FLIGHT PREPARATION The TASKA wing was designed for cross-country flying pilots,. To discover your new wing, we will advise you to conduct your first small flights in calm conditions on a school training hill or a familiar site you are used to flying with your own harness. -
Page 10: Take-Off
However, before the first flight, practice ground handling to familiarize yourself with your new wing. It is possible to inflate it forward or reversed. Inflating the TASKA is easy without any hard point ; the sequence demands and adaptation to the weather conditions of the day. Forward launch To inflate the glider grab the upper ends of the "A"... - Page 11 TASKA turns very well with toggle input, and does not require big weigh-shifting in the harness.
-
Page 12: End Of The Flight
Towing The TASKA wing can be towed up. Fly only with certified gear operated by qualified personal and only after taking a towing clinic. The towing force must correspond to the weight of the equipment, and the pulling sequence can only start when the wing is fully inflated and stable over the pilot's head. -
Page 13: Fast Descents
TASKA FAST DESCENTS The following techniques should only be used in emergencies and require prior training to be safely conducted. Appropriate analysis and anticipation of the conditions will often prevent the need to use fast descent techniques. We will advise you to practice in still air and preferably above water. - Page 14 To prevent stressing we do not recommend combining spiral dives with "Ears". Conforming to the EN A, the TASKA glider does not show any tendency to stay in a locked spiral configuration and will return by itself to a normal flying angle in less than two full rotations when the toggles/brakes are brought back up.
-
Page 15: Flight Incidents
TASKA Flight incidents Asymmetric collapses Any paraglider may occasionally collapse due to turbulence or a piloting error. In the event of an asymmetric collapse your priority must be to stay clear of the terrain and regain level flight. -
Page 16: Line Layout
TASKA LINE LAYOUT DIAGRAM SUP’AIR _TASKA Page 16... -
Page 17: Materials
TASKA Materials Fabrics Producer Reference Outer surface Porcher Sport Skytex 38 Universel - 9017E25 + Skytex 32 Universal - 70032E3W Inner Surface Porcher Sport Skytex 27 Soft - 70000E4A Supported ribs Porcher Sport Skytex 32 Hard - 70032E4D... - Page 18 TASKA Maintenance sheet. TASKA glider Size XS Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITHOUT risers Measurements made from the base of the risers to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg.
-
Page 19: Measurement Table
TASKA Measurement table TASKA glider Size S Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITHOUT risers Measurements made from the base of the risers to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg. - Page 20 TASKA Measurement table TASKA glider Size M Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITHOUT risers Measurements made from the base of the risers to the base of the wing, WITH risers and Maillons Rapides, were under 5 kg.
- Page 21 TASKA Measurement table TASKA glider Size M Line Check Maintenance Sheet Measurements made from the base of the lines to the base of the wing, WITHOUT Measurements made from the base of the risers to the base of the wing, WITH risers risers and Maillons Rapides, were under 5 kg.
-
Page 22: Certificates
TASKA CERTIFICATES TASKA XS EN 926 -1 : 2015 & 926 - 2 : 2013 Class B. N° PG-0889.2014 LTF 91/09 Class: In accordance with standards PG_1142.2017 EN 926-2:2013, EN 926-1:2015 & LTF 91/09: 23. 03. 2017 Date of issue (DMY): Supair Sàrl... - Page 23 TASKA CERTIFICATES TASKA S EN 926 -1 : 2015 & 926 - 2 : 2013 Class B. N° PG-0889.2014 LTF 91/09 Class: In accordance with standards PG_1127.2016 EN 926-2:2013, EN 926-1:2015 & LTF 91/09: 23. 03. 2017 Date of issue (DMY): Supair Sàrl...
- Page 24 TASKA CERTIFICATES TASKA M EN 926 -1 : 2015 & 926 - 2 : 2013 Class B. N° PG-0889.2014 LTF 91/09 Class: In accordance with standards PG_1143.2017 EN 926-2:2013, EN 926-1:2015 & LTF 91/09: 23. 03. 2017 Date of issue (DMY): Supair Sàrl...
- Page 25 TASKA CERTIFICATES TASKA L EN 926 -1 : 2015 & 926 - 2 : 2013 Class B. N° PG-0889.2014 LTF 91/09 Class: In accordance with standards PG_1144.2017 EN 926-2:2013, EN 926-1:2015 & LTF 91/09: 23. 03. 2017 Date of issue (DMY): Supair Sàrl...
-
Page 26: Maintenance
• Lines (no excessive wear no breakages or folds) maillons and carabiners • Materials selected for the TASKA ensure the best compromise for lightness and longevity. However in certain conditions such as exposure to UV or abrasion or exposure to chemical products the glider must be submitted to a thorough inspection by a qualified facility. -
Page 27: Recycling
Most of them are recyclable. If your TASKA's life span is over, you can separate all metallic and plastic parts from the cloth and dispose of the rest according to your country's recycling guide lines and requirements. Please contact your local recycling center for more information.. - Page 28 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 TASKA 45°54.024’N / 06°04.725’E Photo : JM Ara...
