American Megatrends StorTrends 2200i Specifications

2U IP-SAN and NAS Storage Appliance
HigHligHts
>
6 or 12 TB IP-SAN & NAS storage appliance
> 12 Hot-swappable SAS /SATA Drives
>
Scalable up to 60 TB with 3 JBODs
>
Information Lifecycle Management (ILM)
> Thin & Exact Provisioning
> WAN-optimization Data Service (WDS)
- Dedupication, Compression, Encryption
and Link Optimization
> Continuous Data Protection (CDP)
> Volume Replication
- Synchronous
- Asynchronous
- Snapshot-assisted
- Journal-assisted
> Advanced Snapshots
- Redirect on Write (ROW)
- Up to 1022 snapshots (R/O and R/W) per
volume
- Up to 2048 snapshots per box
- Snapshot scheduling for SAN & NAS
- Rollback from any snapshot
- Random snapshot deletion
> Hardware RAID support: features RAID
levels 0, 1, 5, 6, 10, 50, 60
> Online capacity expansion, RAID level
migration
>
High Availability (HA) Grouping
- Load Balancing
- Active / Active Configuration
> Network Teaming
> Smart UPS Support
T
tor
ww w. ami. c o m
StorTrends 2200i IP-SAN storage appliance, users can quickly configure and
begin using a powerful and scalable storage solution with enterprise-class
performance.
complexity, provides the ability to easily scale as more storage is required,
and reduces the total cost of ownership for storage systems. Built to support
Intel® Dual-Core CPU technology, the StorTrends 2200i offers performance and
flexibility, while StorTrends iTX provides enterprise-level features such as high
availability and disaster recovery at a price that appeals to small and medium-
size businesses (SMB).
rends
With the combination of StorTrends® iTX Data Storage software and the
Dual dialect StorTrends® iTX delivers ease of use, reduces storage

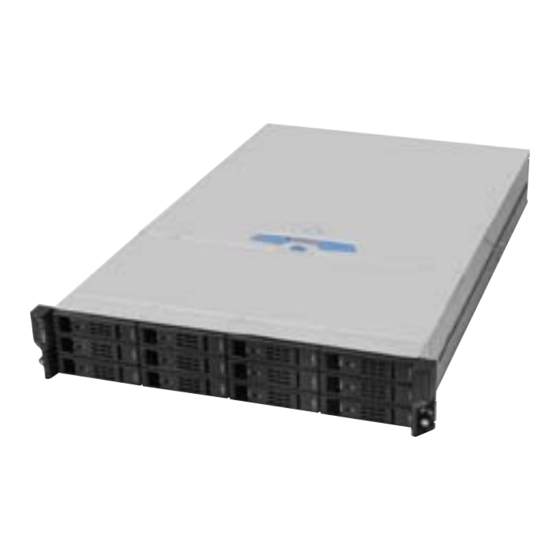

The StorTrends 2200i is a flexible
platform that can be coupled with
StorTrends iTX software for use as a
dedicated network storage appliance.
Its twelve-drive bay can handle both
high performance SAS hard drives and
economical SATA drives, giving users
multiple options for performance,
capacity, and cost.
One of the most powerful features
of the StorTrends 2200i is its Advanced
Snapshot capability with Redirect on
Write (ROW) technology. Administrators
can schedule SAN and NAS snapshots,
and rollback to any snapshot in under
a second. Snapshot-assisted replication
(SAR) replicates delta snapshots from the
primary system in chronological order to
the secondary. In the event of a failover,
the system will automatically recover to
the latest available consistent snapshot
image.
Synchronous replication on the
StorTrends 2200i enables data to be
stored on multiple StorTrends appliances
at multiple sites, for high availability
and disaster recovery capability. High
Availability grouping allows two
StorTrends SAN heads to be grouped
as highly available cluster nodes for
Microsoft® initiators, for extreme fault
tolerance and always-up availability.
This technology provides protection
against disk, path, and node failures with
automatic, seamless failover.
Asynchronous replication bundles
I/Os and sends them to the remote
© 2008 American Megatrends Inc. - Specifications subject to change without notice
Data sheet
06 09 2008
server, boosting network utilization
efficiency and reducing bandwidth cost.
When combined with the revolutionary
WDS (WAN-Optimization Data Service)
feature included in the asynchronous
replication module, the system take
advantage of a "triple-threat" of data
deduplication, data encryption and link
optimization to reduce data transmission
and bandwidth usage by several factors
over conventional replication speeds.
The flexibility and power of iSCSI in
the StorTrends 2200i IP-SAN appliances
can bolster data protection in backup
scenarios with some of the most
advanced snapshot technology in the
market, in some cases even eliminating
the need for a dedicated backup server.
This has obvious cost advantages, and
more importantly, enables Continuous
Data Protection (CDP) of stored data
with snapshot coverage of data on
an almost continuous basis. With up
to 1,022 snapshots per volume and
2,048 per appliance, StorTrends iTX is
capable of CDP by combining low-
latency snapshots with I/O journaling
to offer one of the most efficient CDP
repositories on the market today.
Finally, integrated web-based
management with AMI's ManageTrends™
interface provides a simple
configuration wizard to
configure volumes, and
logical disks, and provides
100% control of the discovery
and management of multiple
StorTrends appliances.
