Authentic Models ASA106 Instructions page 4

ASA106 Instructions Page 4
Fairlead
guide eye

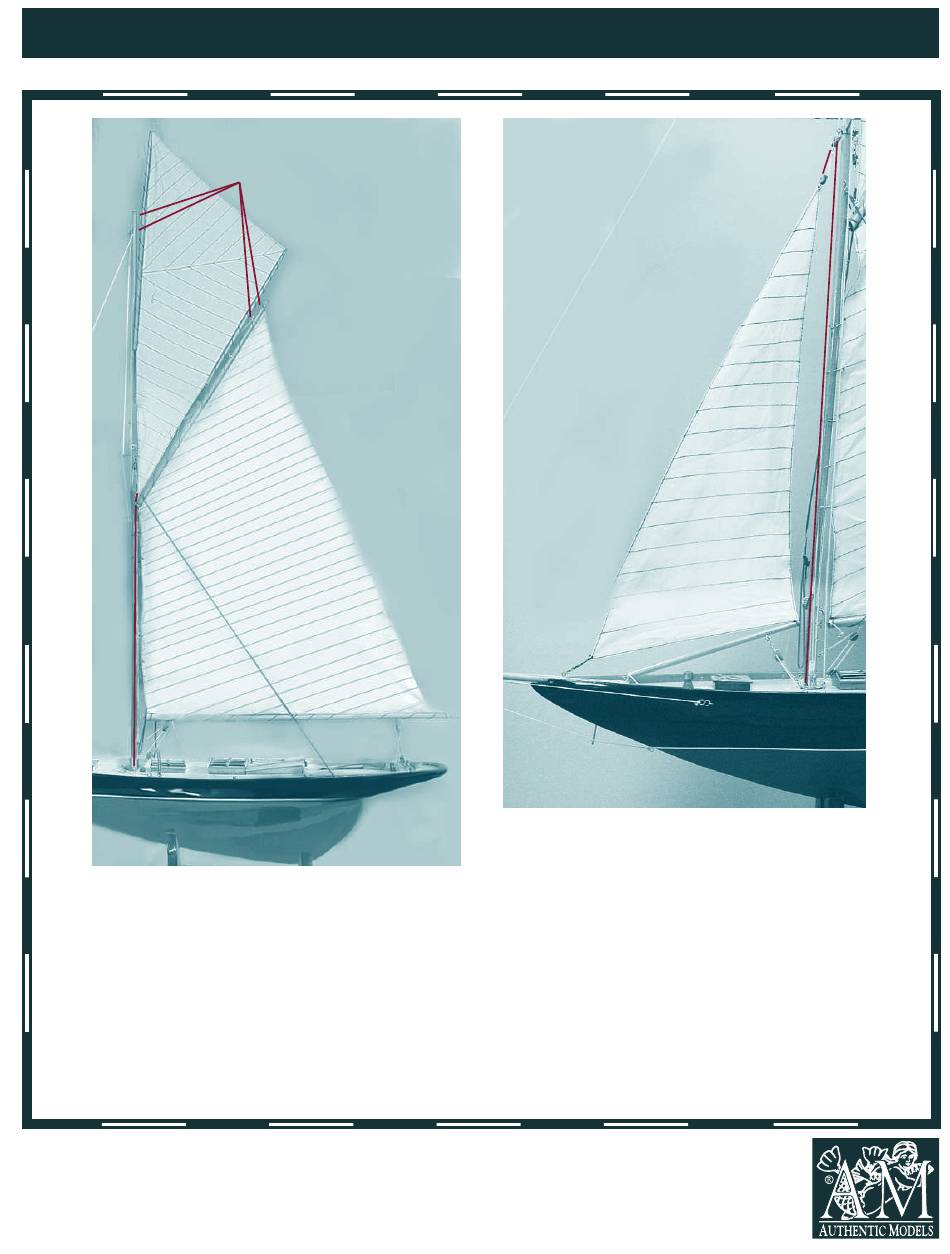

9. Gaff Sail (Keeper): Pass the long wire hooks on
both spars of the gaff sail through the sets of twoe
eyes at the top of the mast and on the main sail
spar. Pass the Keeper's line through the fairlead eye
then down the mast. Attach the S hook to the eye
at the port side of the maststep.
Two eyes
The Netherlands
Authentic Models BV
Ambachtsweg 37
NL-3899 AM
Zeewolde
1
4
10. Rigging the Clubfooted Sail:
1. Fore end of sail attaches to eye at mid bowsprit.
2. S hook on block at top of sail connects to spanner
fore.
3. Run the sail line down the mast to eye at fore
of maststep.
4. Hook unattached end of clubfoot into bowsprit
terminal.
5. Attach S hook of the block from deck to eye on
clubfoot.
United States
Authentic Models, Inc.
888 Garfield
P .O. Box 21710
Eugene, OR 97402
2
5
3
