Authentic Models ASA106 Instructions page 3

ASA106 Instructions Page 3
Secure
main sale
line
Connect
preventer
Maststep portside

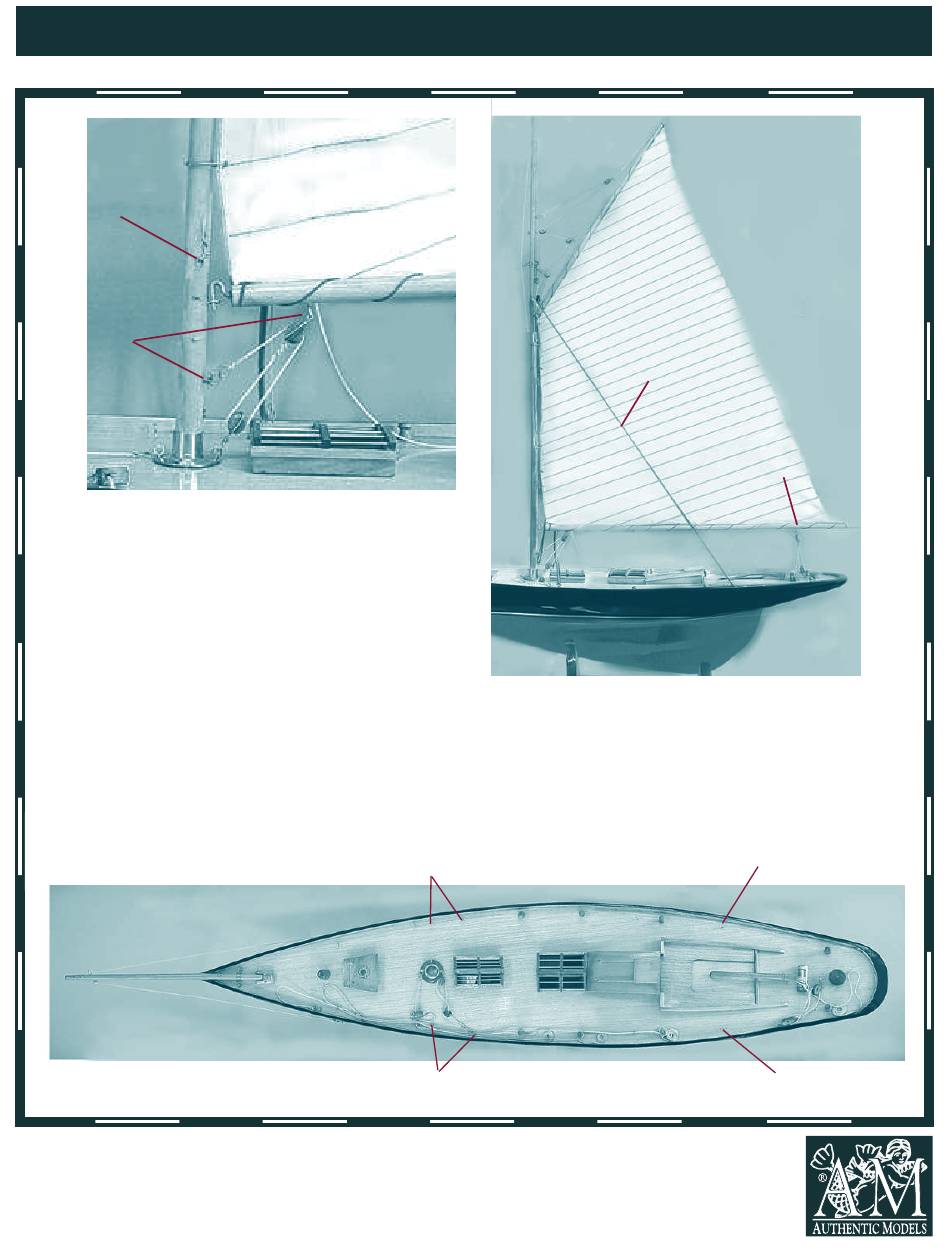

7. Place the boom's hook in the eye on the aft side
of the mast as illustrated. Connect the Preventer:
The hook at the top of the block connects to the
eye on the underside of the boom. The S hook at
the end of the Preventer's line connects to the eye
on the aft side of the mast. Loop the mast rings
around the mast and twist closed.
Bow
Fore
Close mastrings
around the mast
Boom
Shroud eyes
Shroud eyes
