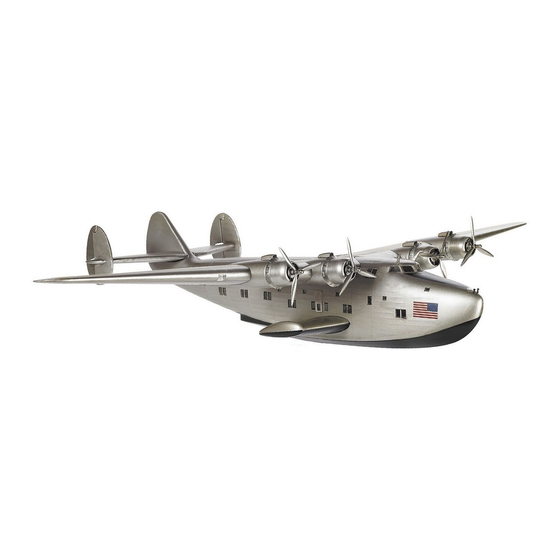

Authentic Models AP451 Instructions

AP451 - Instructions
You will need a stubby Philips head screwdriver for assembly.
1. Lay airplane fuselage (body) upside down on a flat surface.
2. Attach wing (W1) to airplane fuselage by inserting rectangular
wooden pegs (P1, P2), into holes (H1, H2) located on side
of airplane fuselage. Engines, with mounted propellers,
should face toward bow (front) of airplane.
3. Locate 2 pre-drilled holes on airplane fuselage where airplane
and wing connect. Use stubby Phillips head screwdriver to
screw a black screw into each pre-drilled hole to secure
airplane wing to airplane fuselage.
W1
B
A
C
4. Attach wing (W2) to airplane fuselage by inserting rectangular
wooden pegs (P3, P4), into holes (H3, H4) located on side
of airplane fuselage. Engines, with mounted propellers,
should face toward bow of airplane.
5. Locate 2 pre-drilled holes on airplane fuselage where airplane
and wing connect. Use stubby Phillips head screwdriver to
screw a black screw into each pre-drilled hole to secure
airplane wing to airplane fuselage.
6. Attach propellers (A) to engines (B) by slipping each propeller
over threaded brass pins located at the center of each engine.
Tighten brass hubs (C) onto brass pins to secure propellers.
P1
H1
H3
P2
H4
H2
The Netherlands
AM NL
Ambachtsweg 37
NL-3899 AM
Zeewolde
W2
P3
P4
