American Dynamics MegaPower 48 Plus Datasheet

MegaPower 48 Plus is an IP-enabled matrix switcher/controller
system that can operate as a standalone system or as part of
a network. Choose from one of three expansion modes and
grow your system by up to 288 inputs. Whether used as a
centralized or distributed system, MegaPower 48 Plus can be
cost-effectively installed and optimized for the most challenging
of site requirements.
The new EASY 48 system configuration software is a
user-friendly MS Windows application that permits the
administrator to program MegaPower 48 Plus either on-site
or remotely via Ethernet or RS-232. Use it to remotely check
the system status of cameras and monitors via an Ethernet
connection or to back up and restore system data.

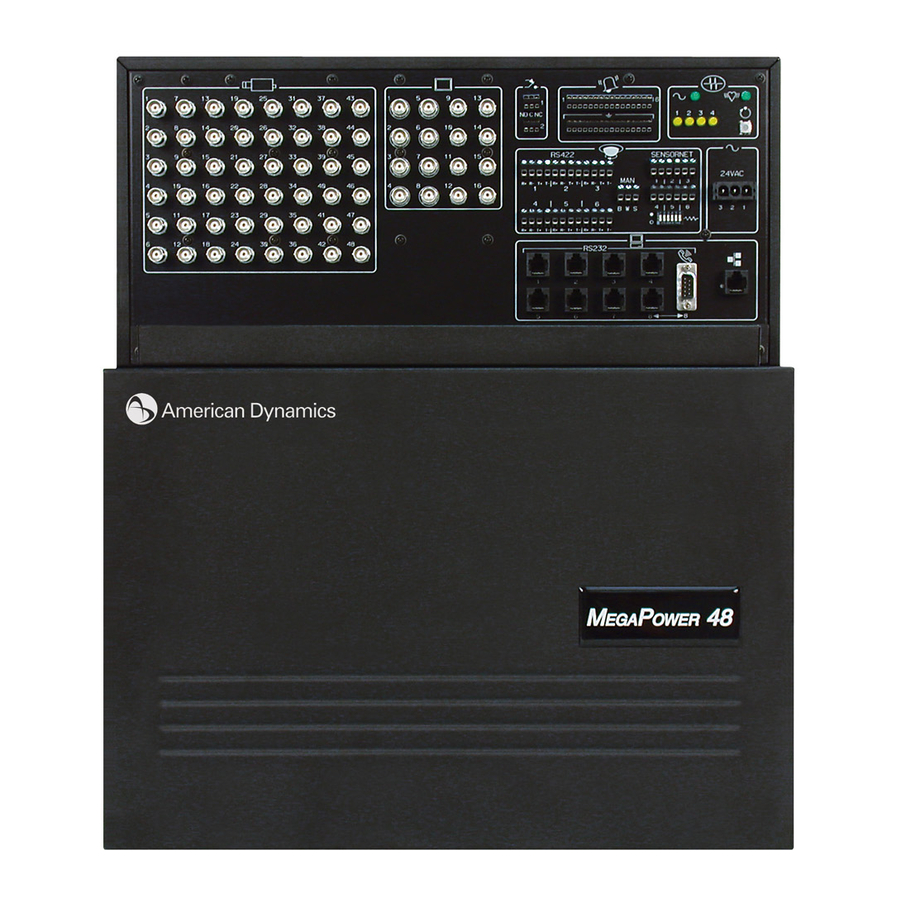

MegaPower 48 Plus
Matrix Switcher/Controller System
Features That Make a Difference:
Universal MEU supports both NTSC and PAL
3 flexible exansion modes using a primary/secondary configuration of
up to 7 systems and 288 cameras
Ethernet Cat 5 IP connection for multi-matrix communications and
system setup
EASY 48 configuration and monitoring software for Windows
95/98 and NT 4.0-based systems
®
Dome ping test and status display
RS-422 dome support, including simplex RS-422
DirectSet function control menu for SensorNet or RS-422 domes with
ControlCenter 200/300 DirectSet key or ADTTE, and AD2088, and
AD2089 site keys
48 video inputs
16 video outputs, 8 with text overlay
Optional Unshielded Twisted Pair (UTP) Adaptor Module allows
installation with simple UTP cable for video
Full embedded system menus for easy setup
Recorder control
User-defined macros
4096 preset titles and 250 alarm titles
Dedicated alarm programming tables differentiate between
alarm sources
RS-232 inputs expandable to 32
64 system tours and 64 salvos
The slim modular wall-mount design saves space and reduces
cabling costs by letting you install MegaPower 48 Plus in
the location that is most central to your cameras. Because it
doesn't have to be rack mounted in a control room,
MegaPower 48 Plus can be installed anywhere in your facility
– even an electrical closet, or maximize the space and fit in
more devices in your standard rack by installing it at 90°
angle behind other equipment. You can also rack mount
MegaPower 48 Plus at other angles to facilitate easy cable
connections with the optional rack mount kit.
