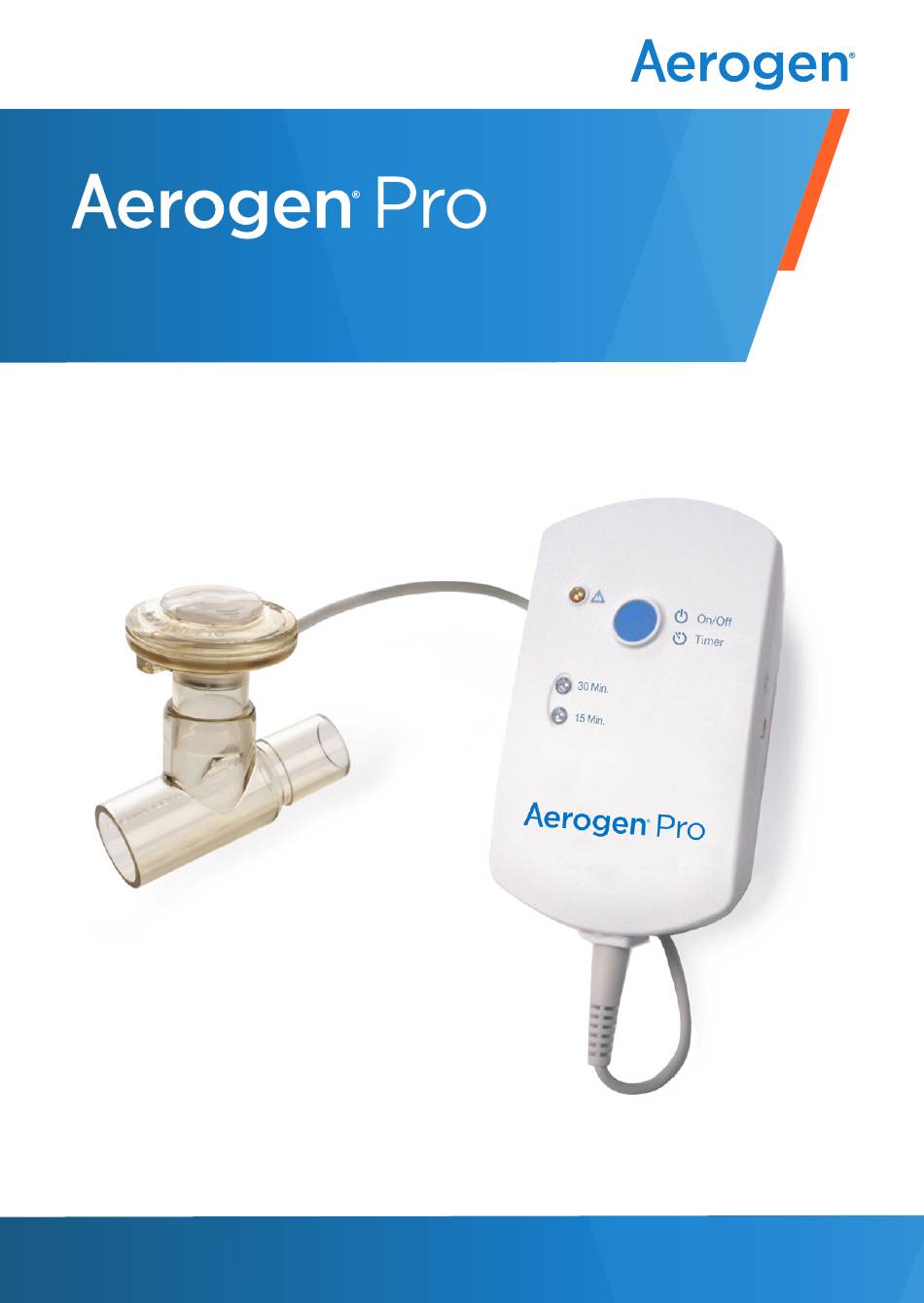

  • Page 1 System Instruction Manual www.aerogen.com...

  • Page 3: Table Of Contents

    Assembly & Installation Installation For Use With A Ventilator Nebulization Installation For Use Off-Ventilator Functional Test Cleaning, Disinfection and Sterilization Troubleshooting Warranty Life Of Product Specifications Performance Symbols Appendix 1 Appendix 1: EMC Tables Aerogen Pro System Instruction Manual ®...

  • Page 4: Introduction

    Aerogen Pro is intended for hospital use only. It is suitable for use by ® pediatric and adult patients as described in this manual. It incorporates the Aerogen Vibronic aerosol generator.

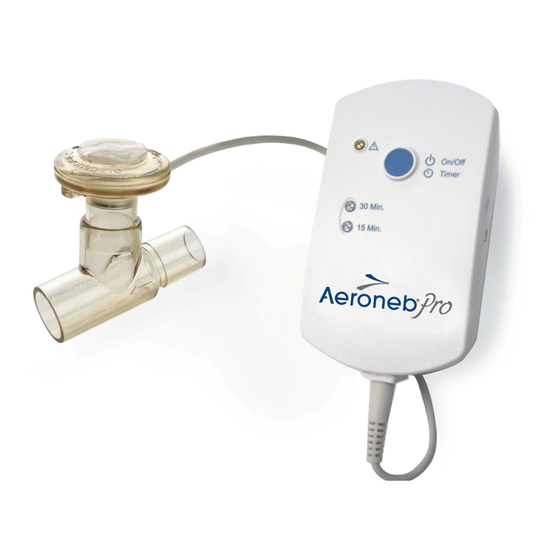

  • Page 5 Aerogen Pro System The Aerogen Pro System includes the following components: Figure 1. Aerogen Pro System 1. Nebulizer with Filler Cap 2. T-Piece (Adult) with Plug 3. Aerogen Pro Controller 4. Controller Cable 5. AC/DC Adapter 6. Universal Mounting Bracket & Equipment Mount Adapter Note: Visit www.aerogen.com for full parts list.
  • Page 6 When the nebulizer is connected into the breathing circuit, the filler cap can be opened or removed from the nebulizer without causing loss of circuit pressure. Within the nebulizer is the Aerogen Vibronic aerosol generator, which ® consists of a domed aperture plate with precision-formed holes that control the size of the aerosol droplets and a vibrational element that creates micro-pumping action to aerosolize medication.

  • Page 7: System Warnings

    System Warnings Read and study all instructions before using the Aerogen Pro System and accessories. Only trained medical personnel should operate the device. During use observe for correct functioning of the nebulizer by regularly verifying aerosol is visible and no flashing indicator lights.
  • Page 8 Do not use in the presence of devices generating high electromagnetic fields such as magnetic resonance imaging (MRI) equipment. The Aerogen Pro controller contains a nickel metal hydride (NiMH) rechargeable battery, which should be disposed of in accordance with local governing restrictions at the end of its useful life.
  • Page 9 • 30 Min. - Press & hold for 3 Sec. Error Indicator 30 Minute Mode Indicator light 15 Minute Mode Indicator light Battery Status Indicator 9V DC Input Controller Cable Input Figure 2. Aerogen Pro Controls & Indicators Aerogen Pro System Instruction Manual ®...
  • Page 10 Table 1. Aerogen Pro Controls & Indicators Control / Indicator Function • Green (steadily lit) = 15 Minute nebulization cycle on 15 Min. Indicator • Green (flashing) = Low battery power • Nebulizer automatically powers off after 15 minutes have elapsed •...

  • Page 11: Assembly & Installation

    Cleaning, Disinfection and Sterilization section of this manual. Note: The nebulizer and T-piece, as packaged, are not sterile. Perform a functional test of Aerogen Pro before use and between patients as described in the Functional Test section of this manual (see page 19).
  • Page 12 Connect the Aerogen Pro controller and the nebulizer together using the controller cable (Figure 4). Figure 4. Connecting controller and nebulizer To operate on AC power (the primary mode of operation), connect the Aerogen Pro AC/DC adapter to the Aerogen Pro controller and plug the adapter into an AC power source (Figure 5).
  • Page 13 Note: Allow a minimum of four hours for the internal battery to fully recharge. Note: To ensure uninterrupted operation of the Aerogen Pro, secure both the AC/DC adapter cable and the controller cable so they cannot become disconnected during treatment. If clips are available on patient circuits, run the cables through the eyes of the clips.

  • Page 14: Installation For Use With A Ventilator

    Y (Figure 6). Figure 6. Connecting the Aerogen Pro to an adult breathing circuit Note: Figure 6 shows adult configuration only For pediatric breathing circuits, connect the nebulizer with the pediatric T-piece into the inspiratory limb of the breathing circuit before the patient Y (Figure 7).
  • Page 15 (Figure 9). Do not over-tighten knob. Where a standard equipment mount is available, use the equipment mount adapter to support the controller (Figure 9). Aerogen Pro System Instruction Manual ®...
  • Page 16 Equipment Universal Mounting Bracket Universal Mounting Bracket Mount Adapter Figure 9. Aerogen Pro controller and universal mounting bracket configurations Warnings • Always maintain the nebulizer in a vertical orientation (with the filler cap uppermost) while in the patient circuit (Figures 6, 7, & 8). This orientation prevents condensate from blocking the nebulizer and ensures proper nebulization.
  • Page 17 Max. fill indication point Figure 10. Filling the nebulizer with a pre-filled ampoule Note: Medication can be added in this manner during nebulization. This does not interrupt nebulization or ventilation. Aerogen Pro System Instruction Manual ®...

  • Page 18: Nebulization

    3. To stop the nebulizer at any time, press the On/Off power button. The indicator turns off to indicate that nebulization has stopped. Note: When delivering a dose greater than 3 mL, select the 30 Minute cycle. Aerogen ®...

  • Page 19: Installation For Use Off-Ventilator

    Warning: To ensure correct nebulization, maintain the nebulizer in a vertical orientation (Figure 11). Use with a Mouthpiece The Aerogen Pro works with any standard ISO 22 mm nebulizer mouthpiece inserted into the adult T-piece. Figure 12. Connecting to a mouthpiece...
  • Page 20 When using a mouthpiece, connect the nebulizer to the T-piece as shown in Figure 3 and then connect the T-piece to the mouthpiece by pushing the parts firmly together (Figure 12). Warning: To ensure correct nebulization, maintain the nebulizer in a vertical orientation (Figure 12). Aerogen ®...

  • Page 21: Functional Test

    Functional Test Perform a functional test of the Aerogen Pro System prior to first use, after each sterilization before each patient use or at any time to verify proper operation. Follow these steps: 1. Visually inspect each part of the system for cracks or damage and replace if any defects are visible.

  • Page 22: Cleaning, Disinfection And Sterilization

    Cleaning, Disinfection and Sterilization This section describes how to clean, disinfect, sterilize and inspect Aerogen Pro System components. It is important that Aerogen Pro device components are cleaned and sterilized prior to first patient use. The components are: • Aerogen Pro (including filler cap) •...
  • Page 23 Warning: Do not use abrasive or sharp tools to clean the nebulizer. Disinfection Aerogen Pro nebulizer, T-pieces and Adapters with disinfection agents. 1. Follow steps 1 through 3 in Manual Cleaning section. 2. Completely immerse parts in appropriate disinfecting agent in accordance with current hospital protocols and disinfectant agent manufacturer guidelines.
  • Page 24 Automated Washing Cycle The Aerogen Pro nebulizer system has been qualified for the following automated washing cycles. Automated Cycle One Detergent: Liquid alkaline cleaner (diluted as per manufacturers instruction). Water Quality: Mains water. Method: 1. Load the components in the automated washer.
  • Page 25 Sterilization of the Aerogen Pro Nebulizer Sterilization of Aerogen Pro Nebulizer, T-Pieces & Adapters 1. Disconnect the nebulizer from the controller, and then remove the nebulizer and adapters from the ventilator circuit, mask or mouthpiece. 2. Disassemble the nebulizer and adapters into individual components.
  • Page 26 ® 100S Sterilization System for specific instructions regarding its correct operation. Prior to next use: 1. Check for cracks or damage and replace if any defects are visible. 2. Perform a functional test as described in this manual. Aerogen ®...
  • Page 27 • Do not spray liquid directly onto the controller. • Do not immerse controller in liquid. Note: The Aerogen Pro nebulizer contains active electronic components. Aerogen has validated the methods of cleaning, disinfection and sterilization above. The use of any other means of cleaning, disinfection or sterilization has not been validated and is likely to reduce the life of your nebulizer and will invalidate your warranty.

  • Page 28: Troubleshooting

    Troubleshooting If these suggestions do not correct the problem, discontinue use of any device and contact your local Aerogen sales representative. Table 2. Aerogen Pro Troubleshooting If this happens: It could mean: Try this: The 15 Min. or 30 Min.
  • Page 29 It may be time to replace Product. Refer to Aerogen the nebulizer. Pro parts list by visiting www.aerogen.com. Note: The rechargeable battery in the Aerogen Pro controller should only be replaced by Aerogen authorized personnel: contact your Aerogen sales representative. Aerogen Pro System Instruction Manual...

  • Page 30: Warranty

    As with all active electronic components, the Aerogen Pro nebulizer has a defined life. In the case of Aerogen Pro controller, the life of the controller unit has been validated for use for 1460 doses. This is based on a typical product usage profile over a two year period, including four treatments per day, 50% of the time.

  • Page 31: Specifications

    Can operate from AC/DC Adapter (input 100 to 240 VAC 50 – 60 Hz, output 9 V) or internal rechargeable battery (4.8 V nominal output). Power Source Note: The Aerogen Pro controller is approved for use with Aerogen AC/DC adapter AG-AP1040-US (Manufacturer Reference: FRIWO FW8000M/US/09 / FW8000M/09 / FW7660M/09) Power Consumption ≤...

  • Page 32: Performance

    Performance Table 6. Performance Specifications of the Aerogen Pro Flow Rate > 0.2 mL/min (Average ~ 0.4 mL/min) As measured with the Andersen Cascade Impactor: Specification Range: 1-5 μm Average Tested: 3.1 μm Particle Size As per EN 13544-1, with a starting dose of 2 mL: Aerosol Output rate: 0.24 mL/min...

  • Page 33: Symbols

    Symbols Table 7. Aerogen Pro System Symbols Symbol Meaning Symbol Meaning Serial number designation, where Transient storage YY is the year of temperature limitations YYXXXXX manufacture and -20 ºC to +60 ºC XXXXX is the serial number Caution Quantity Attention: Consult...
  • Page 34 Aerogen Pro nebulizer system. • Do not use the Aerogen Pro adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the device should be observed to verify normal operation in this configuration.
  • Page 35 • Portable and mobile radio frequency (“RF”) communication devices can disrupt medical electrical equipment. Aerogen Pro System Instruction Manual ®...

  • Page 36: Appendix 1: Emc Tables

    Guidance and manufacturer’s declaration – electromagnetic emissions The Aerogen Pro nebulizer system is intended for use in the electromagnetic environment specified below. The customer or the user of the Aerogen Pro nebulizer system should assure that it is used in such an environment.
  • Page 37 This Aerogen Pro nebulizer system is intended for use in an electromagnetic environment specified in Table 8. The customer or the user of the Aerogen Pro nebulizer system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Aerogen Pro nebulizer system as recommended below, according to the maximum output power of the communications equipment.
  • Page 38 Aerogen Pro nebulizer system that is not life supporting This Aerogen Pro nebulizer system is intended for use in the electromagnetic environment specified below. The customer or the user of the Aerogen Pro nebulizer system should assure that it is used in such an environment.
  • Page 39 Table 10. Guidance and manufacturer’s declaration – electromagnetic immunity for the Aerogen Pro nebulizer system that is not life supporting (Continued) Power 30 A/m 30 A/m Power frequency magnetic frequency fields should be at levels (50/60 Hz) characteristic of a typical...
  • Page 40 Aerogen Pro nebulizer system that is not life supporting This Aerogen Pro nebulizer system is intended for use in the electromagnetic environment specified below. The customer or the user of the Aerogen Pro nebulizer system should assure that it is used in such an environment.
  • Page 41 Table 11. Guidance and manufacturer’s declaration - electromagnetic immunity for the Aerogen Pro nebulizer system that is not life supporting (Continued) IEC 60601 Test Compliance Electromagnetic Immunity Test Level Level Environment - Guidance Radiated RF 10 V/m 10 V/m d = [1.17] √P... 80MHz to 800MHz IEC 61000-4-3 80 MHz to 2.7 GHz...
  • Page 42 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Aerogen Pro nebulizer system is used exceeds the applicable RF compliance level above, the Aerogen Pro nebulizer system should be observed to verify normal operation.
  • Page 44 (886) 423-7643 info@aerogen.com www.aerogen.com twitter.com/aerogen Manufacturer Aerogen Ltd. © 2018 Aerogen Ltd. Part No. AG-AP1080-US Galway Business Park, P/N 30-040 Rev N Dangan, Galway, Ireland.
