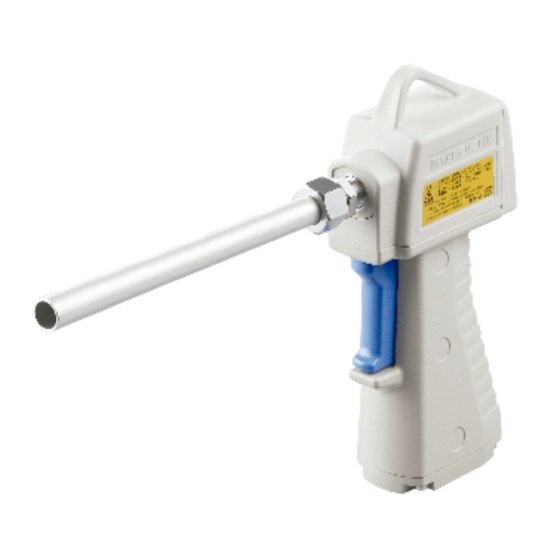

- Page 1 Doc. No IBG****-OMY0020 PRODUCT NAME IMPACT BLOW GUN MODEL / Series / Product Number IBG1 SERIES...
- Page 2 Contents ・・・P 1 Table of contents ・・・P 2 How to order ・・・P 2 Specifications ・・・P 3,4 External dimensions drawing ・・・P 5,6 How to mount a nozzle ・・・P 7－10 Safety Instructions...
- Page 3 2. How to Order IBG1 0 Adjuster Symbol Type Without adjuster With adjuster Supply port Nozzle (Refer to page 4 for details.) Screw-in type Nozzle part no. * Symbol Type Nozzle length Without nozzle — — Symbol Size 50 mm IBG1-12-10-50 Rc3/8 100 mm...
- Page 4 4.External dimensions IBG10/Without adjuster 25.5 Rc1/4 Discharge port 84.6 37.6 Rc3/8, NPT3/8, G3/8 Supply port IBG11/With adjuster Locked: ≈100.3 Unlocked: ≈101.7 25.5 Valve position adjuster Scale setting range: Rc1/4 0 (Fully closed) to 4 (Fully open) Discharge port 84.6 37.6 IBG10_11/With nozzle Rc3/8, NPT3/8, G3/8 Supply port...
- Page 5 4.External dimensions Long nozzle(Option) ≈ + 7 ∗Reference dimension after R thread installation [mm] R1/4 Part no. Nozzle I.D. Connection thread IBG1-12-10-50 IBG1-12-10-100 ø10 R1/4 IBG1-12-10-150 IBG1-12-10-300 Width across flats 19 Width across flats 17 Long nozzle with a silencer (Option) Union nut Ferrule...
- Page 6 5.How to mount a nozzle How to mount a nozzle to the Impact-Blowgun (Series IBG) Check that the ferrule is mounted inside the Nozzle fitting as shown in figure on the right. Hand-tighten the union nut. Ensure ferrule is Ferrule aligned properly.
- Page 7 5.How to mount a nozzle How to mount a silent nozzle to the Impact-Blowgun (Series IBG) Check that the ferrule and element is mounted inside the silent nozzle as shown in figure on the right. Ferrule Element Hand-tighten the union nut. Ensure ferrule is Nozzle：...
- Page 8 Impact blow gun Impact blow gun Impact blow gun Impact blow gun Impact blow gun Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These safety instructions are intended to prevent hazardous situations and/or equipment damage. These safety instructions are intended to prevent hazardous situations and/or equipment damage.
- Page 9 Impact blow gun Impact blow gun Impact blow gun Impact blow gun Impact blow gun Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions Caution Caution The product is The product is provided provided for use in manufacturing industries. for use in manufacturing industries.
- Page 10 Series Specific Product Precautions Be sure to read this before handling the products. Refer to the back cover for safety instructions. For other precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Prior to Use Mounting Warning...
- Page 11 Series Specific Product Precautions Be sure to read this before handling the products. Refer to the back cover for safety instructions. For other precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Lubrication Maintenance Warning...
- Page 12 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2020SMC Corporation All Rights Reserved...
