Air Saving
Increased impact force
higher peak pressure
due to
Instantaneous air blow
reduces air consumption
and work time
Peak pressure
3
times
∗
1
or more
(Compared with the existing model)
IBG1
Air consumption
0.8
L
0
∗1 According to blow requirements ∗2 Pressure: 0.5 MPa (Based on SMC's specific testing conditions)
IBG
Series

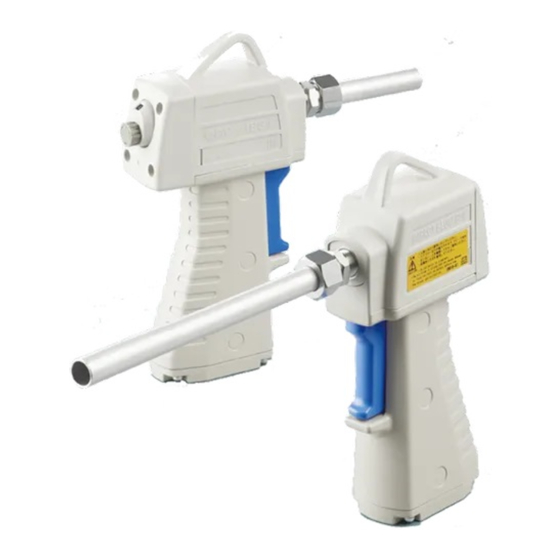

Impact Blow Gun
Air consumption
87
%
∗
2
reduction
Impact
blow gun
Continuous blow
Air consumption
Work time
Existing blow gun
97
%
reduction
6.3
L
Work time
RoHS
Video
IBG1 air consumption
Continuous blow air
consumption
CAT.ES50-40A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks IBG Series
Summary of Contents for SMC Networks IBG Series
- Page 1 Impact Blow Gun Air Saving RoHS Increased impact force higher peak pressure due to Instantaneous air blow reduces air consumption and work time Peak pressure Air consumption times ∗ ∗ or more reduction (Compared with the existing model) Work time Existing blow gun Impact blow gun...
-
Page 2: Various Functions
Impact Blow Gun IBG Air Saving Series Various Functions Adjuster with indicator Long nozzle Nozzle length: Quick and simple peak pressure adjustment is available. 50/100/150/300 mm Indicator Number of window needle rotations Long nozzle with a silencer Peak pressure and the number of needle rotations 80 dB(A) or less (Supply pressure: 0.5 MPa) -
Page 3: How To Order
Impact Blow Gun Series How to Order IBG1 0 Adjuster Symbol Type Without adjuster With adjuster Supply port Nozzle (Refer to page 4 for details.) Nozzle part no. ∗ Screw-in type Symbol Type Nozzle length Without nozzle — — Symbol Size 50 mm IBG1-12-10-50... - Page 4 Series Dimensions IBG10/Without adjuster 25.5 Rc1/4 Discharge port Long nozzle Long nozzle with a silencer 84.6 37.6 With S coupler plug With One-touch fitting mounted mounted (KK4P-03MS) (KQ2H - AS) Rc3/8, NPT3/8, G3/8 Supply port IBG11/With adjuster Locked: ≈100.3 Unlocked: ≈101.7 25.5 Valve position adjuster Scale setting range:...
- Page 5 Series Impact Blow Gun Dimensions Long nozzle (Option) ≈ + 7 ∗Reference dimension after R thread installation [mm] R1/4 Part no. Nozzle I.D. Connection thread IBG1-12-10-50 IBG1-12-10-100 ø10 R1/4 IBG1-12-10-150 IBG1-12-10-300 Width across flats 19 Width across flats 17 Long nozzle with a silencer (Option) Union nut Ferrule...
- Page 6 Series Specifi c Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For other precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Prior to Use Mounting Warning...
- Page 7 Series Specifi c Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For other precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Lubrication Maintenance Warning...
- Page 8 These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) ∗1) and other safety regulations.
