American Dynamics AD1371 Series Installation Instructions

INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
1) Tilt Position - Note: Some models are equipped
with a tilt position lock-down set screw. Loosen
this set screw before and tighten it after
completing the tilt position adjustment. Loosen
the Tilt Hex Screw and tilt the camera housing to
the desired location. Tighten the Tilt Hex Screw.
2) Pan Position - Loosen the Pan Set Screw and
rotate the camera housing to the desired location.
Tighten the Pan Hex Screw.

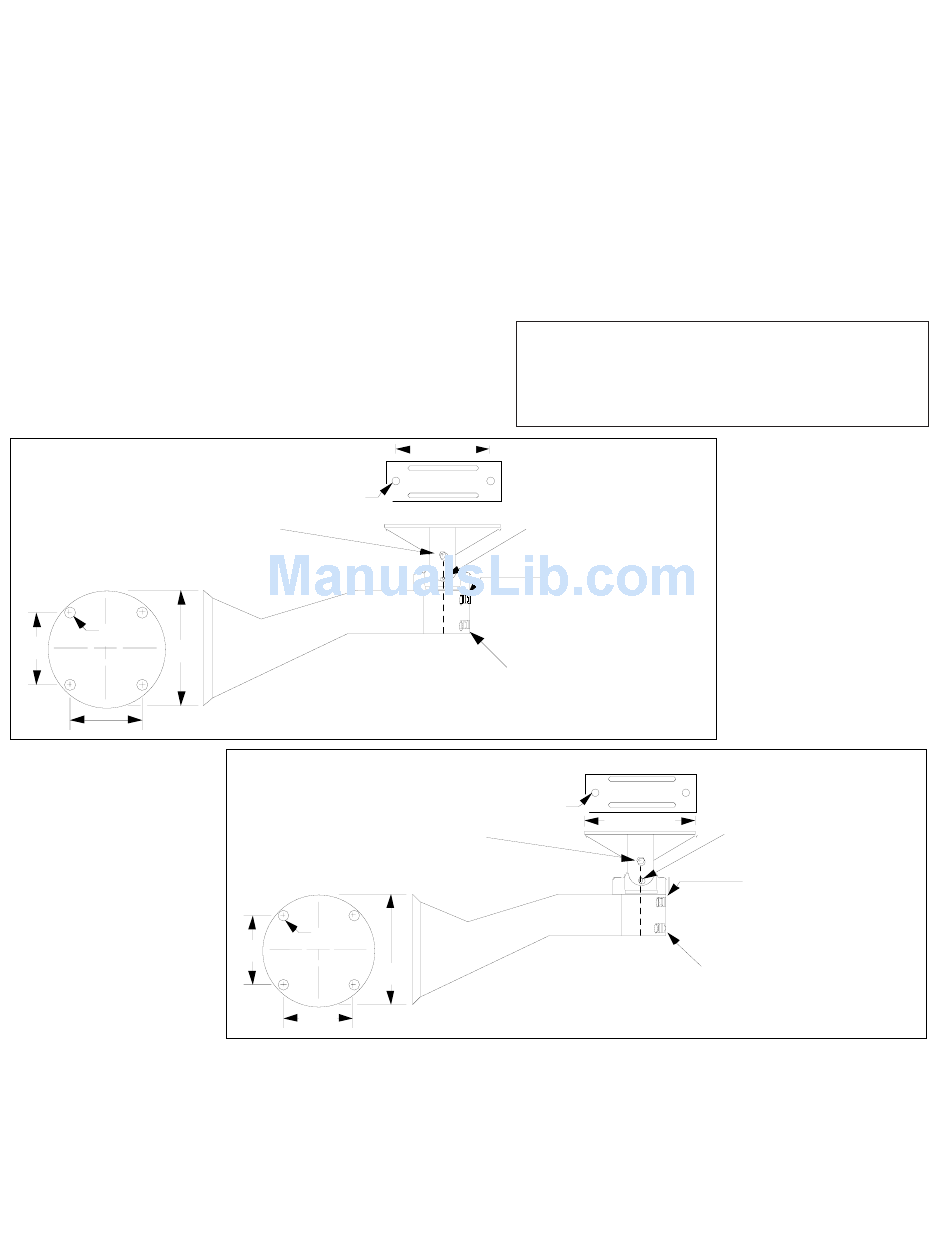

AD1371 Wall Mount

Tilt Hex Screw
2 Holes
0.25"/6.5mm
2.36"
4.72"
60mm
120mm
2.75"
70mm
Information furnished by AMERICAN DYNAMICS is believed to be accurate and reliable. However, no responsibility is assumed by AMERICAN DYNAMICS for its use; nor for any
infringements of other rights of third parties which may result from its use. No license is granted by implications or otherwise under any patent or patent rights of AMERICAN DYNAMICS.
Copyright 1995 by American Dynamics. All rights reserved.
OP1371/1372A
for AD1371/1372 Series
2 Holes
0.25"/6.5mm

AD1372 Wall Mount

Tilt Hex Screw
2 Holes
0.375"/8.5mm
2.75"
70mm
5.9"
150mm
3.5"
90mm
An American Dynamics Product
Designed and built by
Sensormatic CCTV Systems Division
One Blue Hill Plaza
Pearl River, New York, 10965
Technical Support Center: 1-800-442-2225
FAX: 914-624-7685
AD1371/1372 Series
3) Cable Entry - Loosen the "Pass-Through" Cable
Set Screw to remove the lower assembly. Route
the cables through the center of the tilt head to the
base of the mount. Replace assembly and tighten
the Pan Hex Screw.
Do not over-tighten any of the screws.
2.63"/60mm
Note
Some models are equipped
with a tilt position lock-down
set screw.
Pan Set Screw
"Pass-Through" Cable
Set Screw
2 Holes
0.25"/6.5mm
(914) 624-7600
CAUTION
All Hex wrenches supplied.
Note:
4.33"/110mm
Some models are equipped with a
tilt position lock-down set screw.
Pan Set Screw
"Pass-Through" Cable
Set Screw
April 1995
