ADDAC System ADDAC216 Sum & Difference Assembly Manual page 3

ADDAC216 Assembly Guide
STEP 1:

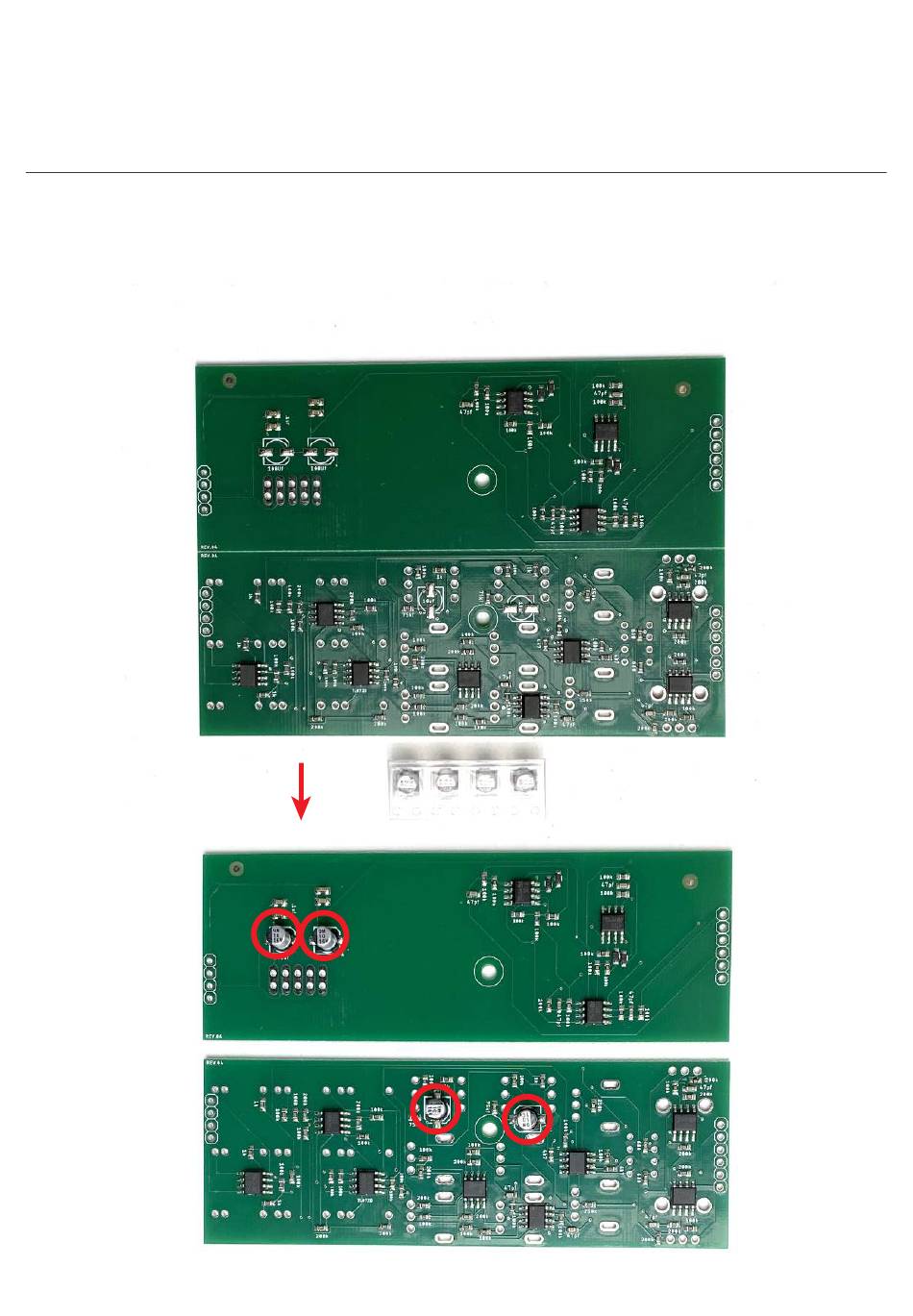

Start by locating all 4 capacitors, notice the orientation printed on the pcb.
Tip: soldering these caps is easy, just place a dab of solder on the pad on your right (left pad if you're
left handed) and then, with the help of a tweezer, put the capacitor in place and reflow the previously
tinned pad to reflow the solder while pushing the capacitor down. Then solder the other pad.
ADDAC SYSTEM page 3
