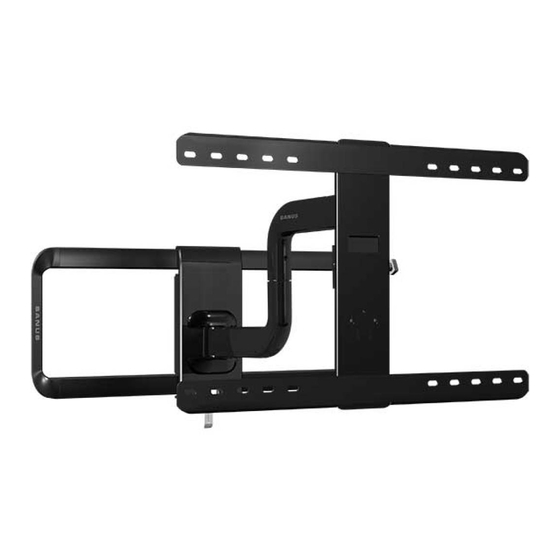

Sanus VLF525 Instruction Manual

Hide thumbs Also See for VLF525:

Advertisement

Quick Links

Download this manual
THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
VLF 525 Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VLF525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sanus VLF525

Summary of Contents for Sanus VLF525

  • Page 1 THANK YOU FOR CHOOSING SANUS THE #1 TV MOUNT BRAND IN THE US. VLF 525 Instruction Manual...
  • Page 2 VLF525 We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520 We’re ready to help! Lo haremos sin estrés Si tiene preguntas mientras realiza la instalación, llámenos. 1-800-359-5520 Estamos listos para ayudarlo.
  • Page 3 Does your TV weigh No — Perfect! more than 125 lb 125 lb (56.7 kg) including Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call (56.7 kg) accessories? 1-800-359-5520 to find a compatible mount. What is your Drywall with...
  • Page 4 STEP 1 Attach Bracket to TV Parts and Hardware for STEP 1 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
  • Page 5 TV Washers TV Screws M8 x 16 mm Spacers M8 x 25 mm M6 x 12mm 2.5mm 22 mm M6 x 20mm M8 x 35 mm Thumb Screws M8 x 50 mm M6 x 35 mm...
  • Page 6 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length Standard configurations are shown. For special If your TV has a flat back AND you want your TV closer to the applications, or if you Hand thread screws into the threaded inserts wall, use the shorter screws.
  • Page 7 1.3 Attach TV Brackets Slide TV bracket plate into upper TV bracket and loosely install using two thumb screws Slide the upper and lower TV brackets onto the ends of the vertical TV bracket...
  • Page 8 If your TV included Position the TV bracket assembly over your TV hole pattern, center horizontally and loosely install using the spacer, TV screw and washer combination (a) or (b) you inset spacers or selected for your TV. wall mount adapters, CAUTION: Avoid potential personal injury or property damage! The TV Bracket...
  • Page 9 Vertically center TV bracket Visually line up the locator hole in the lower TV bracket , with a hole in the vertical TV bracket and install using two thumb screws . Tighten the four thumb screws on the upper and lower TV brackets.
  • Page 10 Tighten the four TV screws (PAGE 8) on the upper and lower TV brackets. TV Screws...
  • Page 11 STEP 2 Attach Wall Plate to Wall Parts and Hardware for STEP 2 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
  • Page 12 STEP 2A Wood Stud Option Min. 1 1/2 in. (38 mm) CAUTION : Avoid potential personal injuries and property damage! ● Drywall covering the wall must not Min. 16 in. (406 mm) Min. 3 1/2 in. (89 mm) exceed 5/8 in. (16 mm) ●...
  • Page 13 Level the wall plate template and tape in place. NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com. IMPORTANT : Be sure you mark and drill into the center of the stud.
  • Page 14 Remove the wall plate template Slide the covers open on the wall plate to expose the mounting holes.
  • Page 15 Install the four lag bolts . Firmly tighten all four lag bolts until they are pulled flush against the wall plate NOTE: Hold the wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! All four lag bolts MUST BE firmly tightened to prevent unwanted...
  • Page 16 Level the wall plate template and mark the hole locations. NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com. Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
  • Page 17 Remove the wall plate template and insert four anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Slide the covers open on the wall plate to expose the mounting holes.
  • Page 18 Install the four lag bolts . Firmly tighten all four lag bolts until they are pulled flush against the wall plate NOTE: Hold the wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! All four lag bolts MUST BE firmly tightened to prevent unwanted...

  • Page 19: Step 3 Attach Tv To Wall Plate

    STEP 3 Attach TV to Wall Plate Part for STEP 3 WARNING: Before starting assembly, verify this part is undamaged. If damaged, contact Customer Service. Never use damaged parts! Arm Assembly...
  • Page 20 3.1 Attach Arm Assembly to Wall Plate CAUTION: Avoid potential personal injury or property damage! The arm assembly MUST BE installed with the lock lever oriented on the bottom as shown. Slide the lock lever to the unlock position. Unlock Lock...
  • Page 21 HEAVY ! You may need assistance with this step. Hang the top hook , of arm assembly , onto wall plate , then rest the arm assembly into place until you hear the lock click, securing the arm in place.
  • Page 22 CAUTION: Avoid potential personal injury or property damage! For concrete applications, the arm assembly must remain centered in the wall plate NOTE: For wood stud applications, the arm assembly can be slid anywhere along the wall plate for optimal positioning of your TV. Lock the arm assembly onto the wall plate by sliding the lock lever...
  • Page 23 3.2 Hang TV onto Arm Assembly HEAVY ! You may need assistance with this step. Position the arm assembly so the elbow is pressed against the wall. Hang the TV onto the arm assembly by first hooking the top support, then pressing the bottom of the TV into the arm assembly until the lock catches.

  • Page 24: Manage Cables

    Manage Cables Route your TV cables along the arm assembly and press into the channels in the arm as shown. Cables...
  • Page 25 Adjustments LEVEL TILT Loosen the two level screws , adjust your TV, Your TV should adjust easily when moved, then stay in place. then tighten the two level screws Adjust the tilt tension knob , by hand, if your TV naturally tilts up or down.
  • Page 26 TV LATERAL SHIFT HEAVY ! You may need assistance with this step. CAUTION : Avoid potential injuries or property damage! Do NOT adjust the arm position from center for concrete applications. Arm MUST remain centered in wall plate for all concrete applications! For wood stud applications ONLY: Slide the arm assembly along the wall plate...

  • Page 27: Removing The Tv

    REMOVING THE TV HEAVY ! You may need assistance with this step. Disconnect all cables from the TV. Loosen the lock knob on the vertical TV bracket Pull the release cord on the vertical TV bracket while pulling the bottom of TV from the arm assembly CAUTION: Avoid potential personal injury or property damage! To prevent breaking the locking latch: always pull and hold the release cord...
  • Page 28 Dimensions in. [mm] TV INTERFACE 23.6 15.7 15.7 11.8 19.7 27.6 WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 30.9 784 6.5° 24.0 610 16.0 406 25.0 13.0 330 12.1 50.0° 50.0° 22.5 29.2 13.5° FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED SIDE VIEW - RETRACTED 3.0°...
  • Page 29 THIS PAGE LEFT INTENTIONALLY BLANK...
  • Page 30 ¿Su televisor pesa No — ¡Perfecto! más de 56,7 kg 56,7 kg (125 lb), incluidos Sí — Este soporte NO es compatible. Visite MountFinder.Sanus.com o llame al (125 lb) los accesorios? 1-800-359-5520 para encontrar un soporte compatible. ¿Tabiques ¿Hormigón sólido ¿De qué...
  • Page 31 ESPAÑOL PASO 1 Colocar las placas de sujeción en el televisor Ver página 4 Piezas y elementos de sujeción para el PASO 1 ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. NOTA: No todos los accesorios Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones.
  • Page 32 ESPAÑOL PASO 2 Fijar el módulo del brazo o la placa mural a la pared Ver página 11 Piezas y elementos de sujeción para el PASO 2 ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones.
  • Page 33 NOTA: Si necesita ayuda para determinar la ubicación de la placa mural, utilice la herramienta HeightFinder disponible en sanus.com. IMPORTANTE : Asegúrese de marcar y perforar el centro del montante.
  • Page 34 Nivele la plantilla de la placa mural y marque la ubicación de los orificios. NOTA: Si necesita ayuda para determinar la ubicación de la placa mural, utilice la herramienta HeightFinder disponible en sanus.com.
  • Page 35 ESPAÑOL PASO 3 Fijar el televisor a la placa mural Ver página 19 ¡ELEMENTO PESADO ! Es posible que necesite ayuda en este paso. Piezas para el PASO 3 ADVERTENCIA: Antes de iniciar el ensamblaje, compruebe que esta pieza esté en buenas condiciones. Si está dañada, póngase en contacto con el servicio de atención al cliente.
  • Page 36 ESPAÑOL 3,2 Colgar el televisor en el módulo del brazo Coloque el módulo del brazo de modo que el codo quede presionado contra el muro. Cuelgue el televisor en el módulo del brazo ; para ello, primero enganche el soporte superior, luego presione la parte inferior del televisor hacia el módulo del brazo hasta que las presillas de queden bloqueadas.
  • Page 37 ESPAÑOL DESPLAZADOR LATERAL DEL TELEVISOR ¡ELEMENTO PESADO ! Es posible que necesite ayuda en este paso. PRECAUCIÓN : Evite el riesgo de lesiones y daños materiales. NO ajuste la posición del brazo desde la posición central para aplicaciones del hormigón. Brazo debe permanecer en la posición central en la placa mural para todas las aplicaciones del hormigón!
  • Page 38 Legrand AV Inc. and its a liated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.
  • Page 39 Learn ways to get the most out of your space. FACEBOOK.COM/SANUSSYSTEMS Find product updates and more. Learn installation tips, tricks and household know-hows. TWITTER.COM/SANUSSYSTEMS View step-by-step product videos to ease your install experiences. YOUTUBE.COM/SANUSSYSTEMS Find the latest news stories about your favorite SANUS products.
  • Page 40 If you ever have questions about your SANUS product, give us a call at 1-800-359-5520. We're ready to help! If you ever have questions about your SANUS product, give us a call at 1-800-359-5520. We're ready to help! ‘Monthly prize’...
