Installation Guide

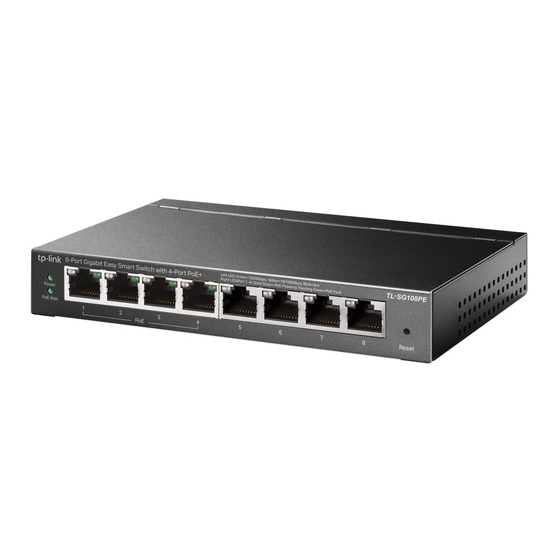

8-Port Gigabit Easy Smart Switch with 4-Port PoE
TL-SG108PE
Connection
PoE Ports (1-4)
IP Camera
Configuration
The switch is plug and play. To manage the switch, you can use the Web-based GUI
or the configuration utility.
The utility is provided on the resource CD and only supported on Windows now.
Using the Web-based GUI
Prepare your computer with a static IP address 192.168.0.x ("x" ranges from
1.
2 to 254), and a subnet mask 255.255.255.0.
2. Visit the Web-based GUI with the default IP address of the switch
http://192.168.0.1, and log in with
password.Then configure the switch on the GUI.
Using the con guration utility
Insert the resource CD into a computer connected to the switch.
1.
The resource CD home screen will appear. If not, double click
2.
the resource CD. Then click
home screen and follow the prompts to install the program.
PoE Devices
AP IP Phone
admin
as both user name and
AutoRun.exe
Install Easy Smart Con guration Utility
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. Maximum PoE power is 15.4W for each PoE port and 55W for all PoE ports.
3. Double click the icon
displays a list of TP-LINK Easy Smart Switches on the local network.
4. Make sure the switch that you want to manage is in the same subnet
as your computer. You can click
5. Double click the switch that you want to configure. Next enter the
username and password (both admin) for it. Then use the utility to
configure the switch.
on
on the For more details, see the User Guide and the Easy Smart Con guration
Utility User Guide on the resource CD.
7106506309
For more information, please visit our website: http://www.tp-link.com
DC Power Adapter
Ethernet Ports (1-8)
Router
LAN Port WAN Port
on the desktop, and the utility home page
to configure the switch IP address.
REV1.0.2
AC Power Cord
Internet
