TP-Link TL-SG105E Installation Manual

Installation Guide

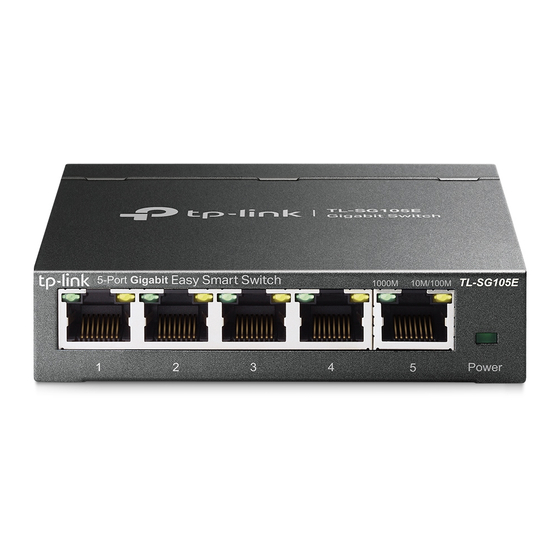

5/8-Port Gigabit Easy Smart Switch
TL-SG105E/TL-SG108E
Note: For simplicity, we will take TL-SG108E for example throughout this Guide.

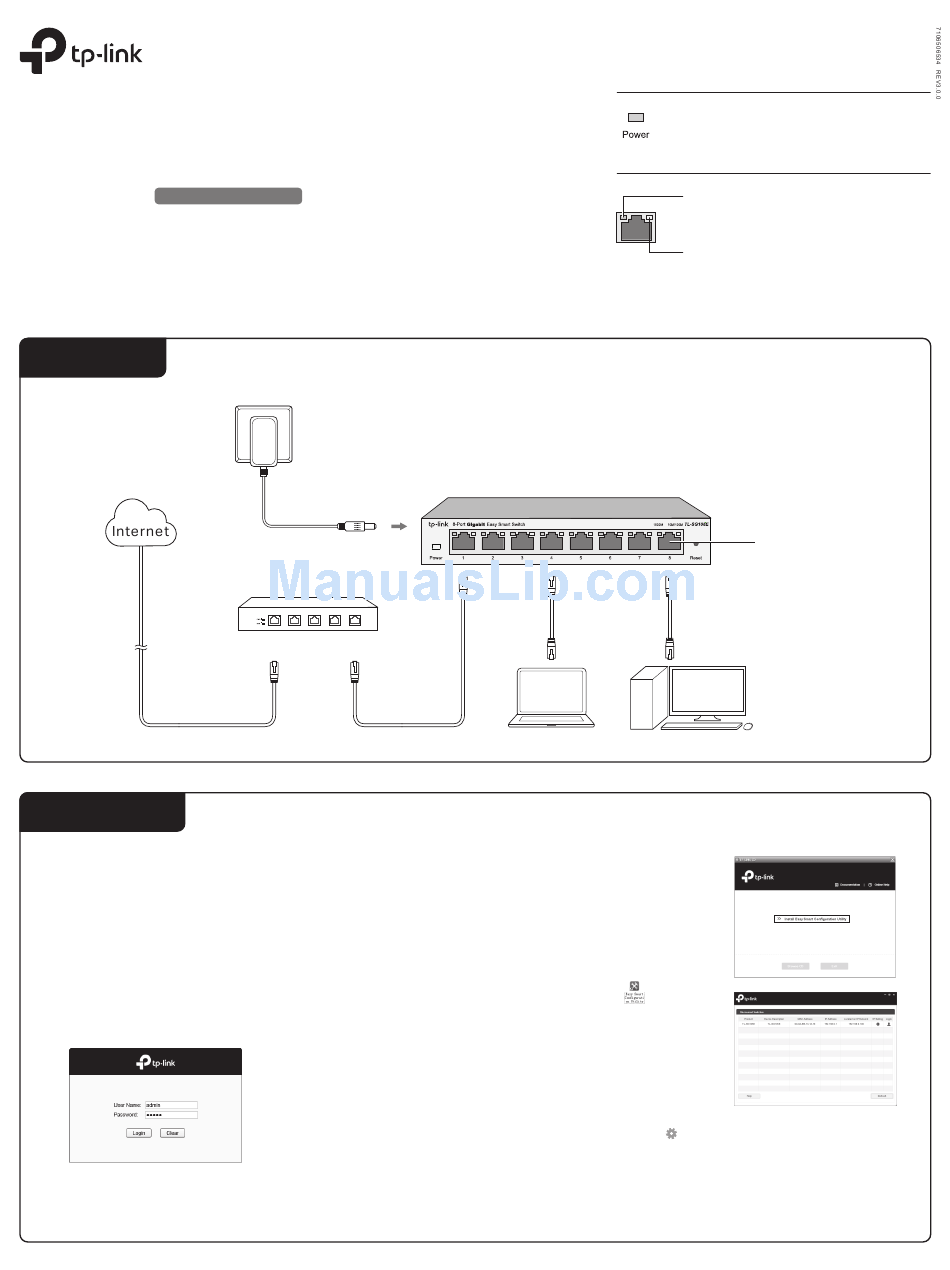

Connection
Configuration
The switch is plug and play. To manage the switch, you can use the
Web-based GUI or the configuration utility.
The utility is provided on the resource CD and only supported on
Windows now.
Using the Web-based GUI
1. Prepare your computer with a static IP address 192.168.0.x ("x" ranges
from 2 to 254), and a subnet mask 255.255.255.0.
2. Visit the Web-based GUI with the default IP address of the switch
http://192.168.0.1, and log in with
password. Then configure the switch on the GUI.
Using the configuration utility
1. Insert the resource CD into a computer connected to the switch.
Router
WAN Port LAN Port
admin as both user name and
LED Explanation
Power
Link/Act
TL-SG108E
PC
2. The resource CD home screen will
appear. If not, double click AutoRun.exe
on the resource CD. Then click
Easy Smart Configuration Utility
home screen and follow the prompts to
install the program.
3. Double click the icon on the
desktop, and the utility home page
displays a list of TP-LINK Easy Smart
Switches on the local network.
4. Make sure the switch that you want to manage is in the same subnet as
your computer. You can click
5. Double click the switch that you want to configure. Next enter the
username and password (both admin) for it. Then use the utility to
configure the switch.
For more details, see the User Guide
Utility User Guide on the resource CD.
On: Power on
Off: Power off
1000M (Green)
On: Running at 1000Mbps
Flashing: Transmitting/receiving data
10/100M (Yellow)
On: Running at 10/100Mbps
Flashing: Transmitting/receiving data
Ethernet Ports (1-8)
PC
Install
on the
to configure the switch IP address.
and the Easy Smart Configuration
