TP-Link TL-SG105MPE Installation Manual

Installation Guide
Gigabit Easy Smart PoE+ Switch

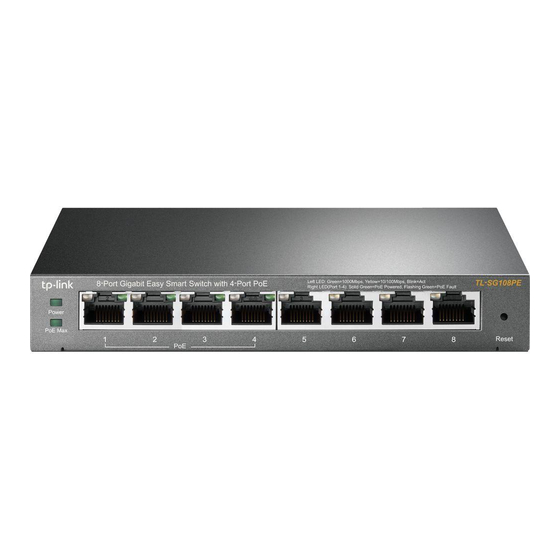

Note: For simplicity, we will take TL-SG108PE for example throughout this Guide.

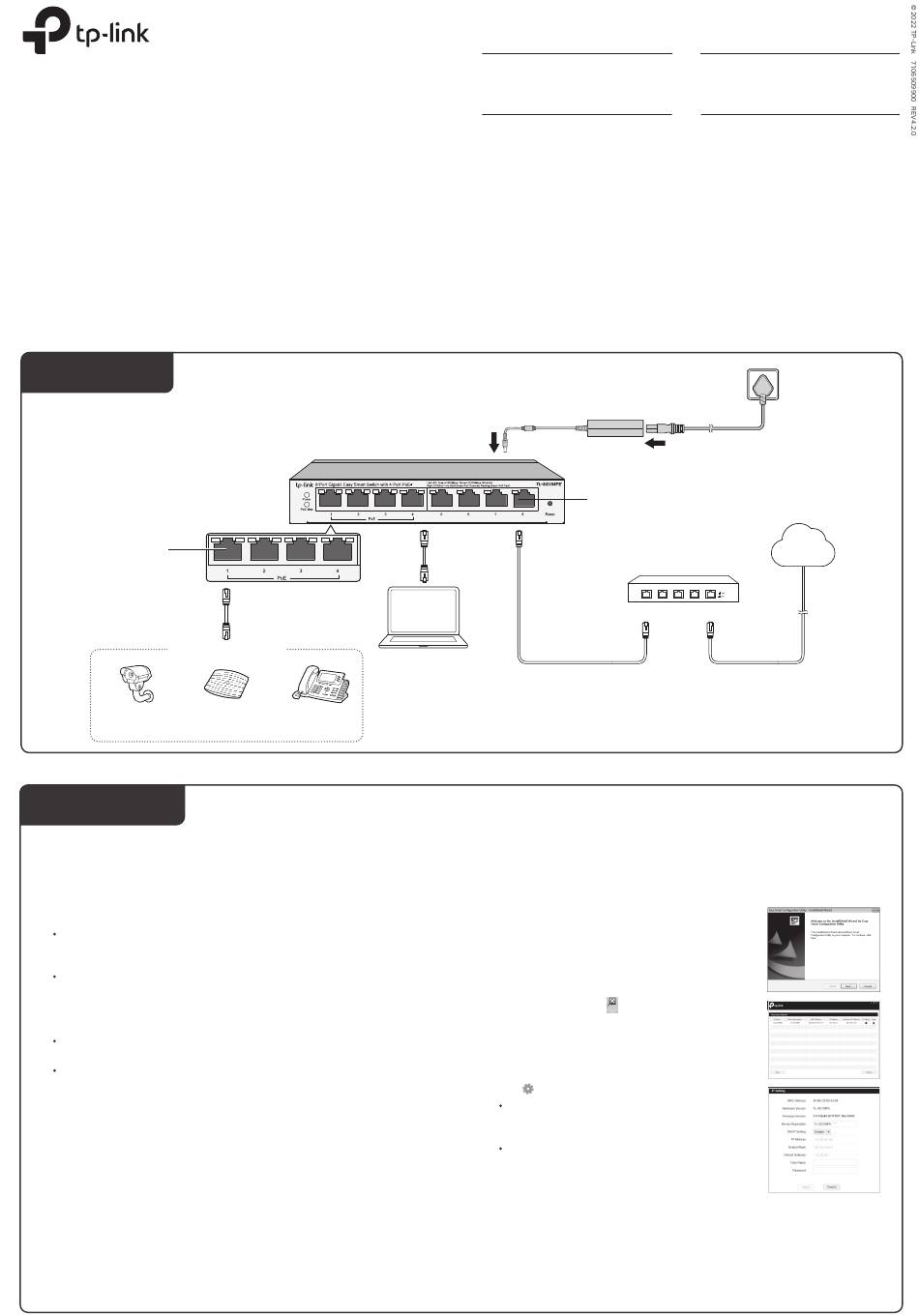

Connection
PoE Ports (1–4)
Powered Device (PD)
IP Camera
Configuration
The switch is plug and play. To configure the switch, you can use the Web-based
GUI or the configuration utility.
The utility is only supported on Windows now.
Using the Web-based GUI
1. Find out the IP address of the switch.
By default, the switch receives an IP addess from a DHCP server (typically a
router with DHCP function enabled) in your network. You can find out this IP
address on the DHCP server.
If the switch cannot receive an IP address from a DHCP server, it uses the
static IP address of 192.168.0.1, with a subnet mask of 255.255.255.0.
2. Configure IP address on your PC to make sure the switch and PC are in the
same subnet.
If the switch uses an IP address assigned by a DHCP server, set your PC to
obtain an IP address automatically from the DHCP server.
If the switch uses 192.168.0.1 as the IP address, configure your PC's IP
address as 192.168.0.x ("x" ranges from 2 to 254), and subnet mask as
255.255.255.0.
3. Launch a web browser on your PC, enter the IP address of the switch in the
address bar and press Enter. Log in with admin as both user name and
password.
Now you can configure the switch using the Web-based GUI. For further
information, refer to the User Guide.
Go to https://www.tp-link.com/support, search the model number of your switch,
and you can find this guide on the product Support web page.
Note: 1.
For certain devices, you may need to change the password the first time
you log in, which will better protect your network and devices.
2. If the switch gets a new IP address from the DHCP server, your
connection to the switch will be lost. Enter the new IP address in your
browser to access the switch again
AP IP Phone
.
LED Explanation
Power
On: Power on
Flashing: Working abnormally or resetting
Off: Power off
Link/Act; Uplink1, Uplink 2
Green On:
Running at 1000 Mbps, but no activity.
Green Flashing:
Running at 1000 Mbps and is transmitting or
receiving data.
Yellow On:
Running at 10/100 Mbps, but no activity.
Yellow Flashing:
Running at 10/100 Mbps and is transmitting
or receiving data.
Off:
No device is linked to the corresponding port.
DC Power Adapter
PC
Note:
PoE ports can also connect to non-PoE devices, but only transmit data.
Using the Configuration Utility
1. Go to https://www.tp-link.com/support and search the model number of your
switch. Download the Easy Smart Configuration Utility from the product
Support web page on your PC.
2. Decompress the downloaded file, run the
installation wizard and follow the prompts to install
the Easy Smart Configuration Utility.
3. Double click the icon
utility Home page will display a list of TP-Link
switches on the local network.
4. Click to find out IP parameters of the switch.
If the switch uses an IP address assigned by a
DHCP server, set your PC to obtain an IP
address automatically from the DHCP server.
If the switch uses 192.168.0.1 as the IP address,
configure your PC's IP address as 192.168.0.x
("x" ranges from 2 to 254), and subnet mask as
255.255.255.0.
5. Double click the switch that you want to configure. Log in with admin as both
user name and password.
Now you can configure the switch using the configuration utility. For further
information, refer to the Easy Smart Configuration Utility User Guide.
Go to https://www.tp-link.com/support, search the model number of your switch,
and you can find this guide on the product Support web page.
PoE Status
On: Providing PoE power
Flashing: PoE fault
Off: Not providing PoE power
PoE MAX
For TL-SG105PE:
On: 58W≤Total power supply < 65W
Flashing: Total power supply ≥ 65W
Off: Total power supply < 58W
For TL-SG105MPE:
On: 113W≤Total power supply < 120W
Flashing: Total power supply ≥ 120W
Off: Total power supply < 113W
For TL-SG108PE:
On: 57W≤Total power supply < 64W
Flashing: Total power supply ≥ 64W
Off: Total power supply < 57W
For TL-SG1210MPE:
On: 116W ≤Total power supply < 123W
Flashing: Total power supply ≥ 123W
Off: Total power supply < 116W
Ethernet Ports (1-8)
Router
LAN Port WAN Port
on the desktop, and the
AC Power Cord
Internet
