Panel Explanation

Power		Kensington Security Slot
	On: Power on Off: Power off		Secure the lock (not provided) into the slot to prevent the device from being stolen.
Port LED
	When one of the LED is on/flashing On: Connecting to a device but no activity Flashing: Transmitting or receiving data Left LED (2.5G) Green: Running at 2.5 Gbps Flashing: Transmitting or receiving data Right LED (1G/100M) Green: Running at 1 Gpbs Yellow: Running at 100 Mbps Flashing: Transmitting or receiving data

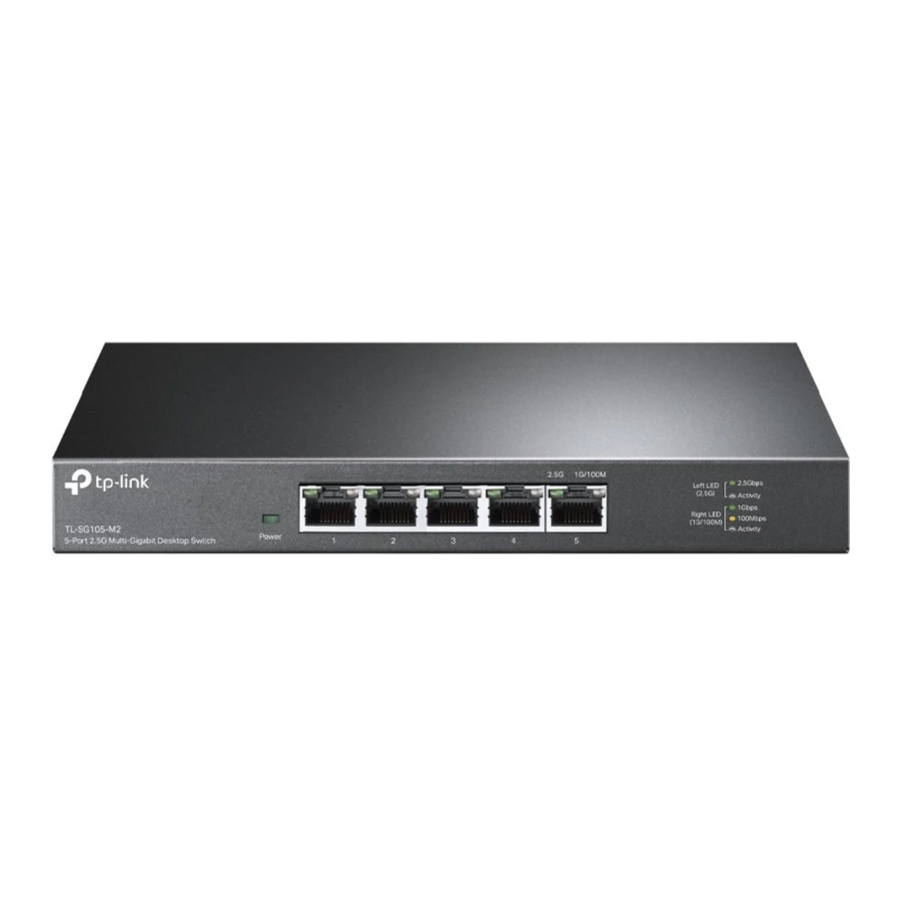

Note: For simplicity, we will take TL-SG105-M2 for example in this Guide.

Connection

Specifications

General Specifications

Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3x, IEEE802.1p
Protocol	CSMA/CD
Network Media (Cable)	100Base-TX: UTP category 5 cable or above (max. 100 m) 1000Base-T: UTP category 5e cable or above (max. 100 m) 2.5GBase-T: UTP category 5e cable or above (max. 100 m)
Interface	5/8 100 Mbps/1 Gbps/2.5 Gbps Auto-Negotiation RJ45 Ports
MAC Address Table	16K
Switching Capacity	TL-SG105-M2: 25 Gbps TL-SG108-M2: 40 Gbps
Transfer Method	Store-and-Forward
MAC Address Learning	Automatically learning, automatically aging
Advanced Features	QoS (802.1p/DSCP Priority), 802.3x flow control
Frame Forward Rate	100Base-TX: 148810pps/Port 1000Base-T: 1488095pps/Port 2.5GBase-T: 3720238pps/Port
Wall mountable	Yes
Distance bewteen mounting holes	150 mm

Environmental and Physical Specifications

Operating Temperature	0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature	-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

Frequently Asked Questions (FAQ)

The Power LED is not lit

The Power LED should be lit when the power system is working normally. If the Power LED is not lit, check as follows:
A1: Make sure the power adapter is connected to the switch with power source properly.
A2: Make sure the voltage of the power supply meets the requirements of the input voltage of the switch.
A3: Make sure the power source is ON.

The right and left LED are not lit when a device is connected to the corresponding port.
It is recommended that you check the following items:
A1: Make sure that the cable connectors are firmly plugged into the switch and the device.
A2: Make sure the connected device is turned on and works normally.
A3: The cable must be less than 100 meters long (328 feet).

To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome to email techwriter@tp-link.com.cn.

Safety Information

Keep the device away from water, fire, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
Place the device with its bottom surface downward.
The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
