Model AD2078
System Keyboard
Installation and Operating Instructions

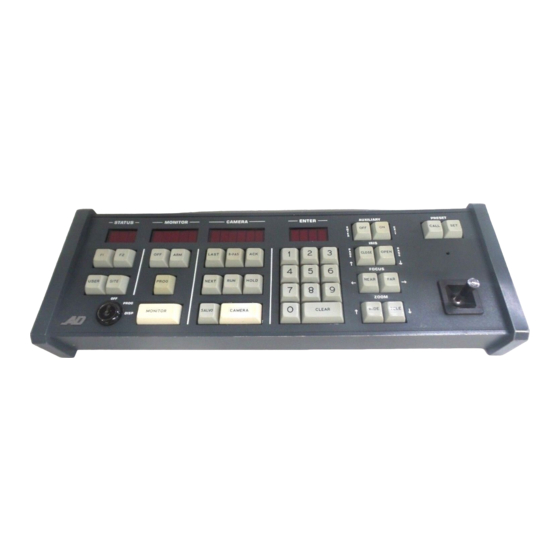

This manual describes the installation and operating procedures for the American Dynamics AD2078 System Keyboard.
AD2078 Series keyboards are used with American Dynamics Matrix Switching Systems for full system control and for
programming and setup functions. Two AD2078 System Keyboard models are available: AD2078, a desktop keyboard, and
AD2078R, a rack-mounted keyboard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD2078 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for American Dynamics AD2078

Summary of Contents for American Dynamics AD2078

  • Page 1 This manual describes the installation and operating procedures for the American Dynamics AD2078 System Keyboard. AD2078 Series keyboards are used with American Dynamics Matrix Switching Systems for full system control and for programming and setup functions. Two AD2078 System Keyboard models are available: AD2078, a desktop keyboard, and...
  • Page 2 The software/firmware furnished with this equipment is confidential to and is copyrighted by SENSORMATIC ELECTRONICS CORPORATION. It is not to be copied or disclosed in any manner without the express written consent of SENSORMATIC. The software/firmware is furnished to the purchaser under a license for use on a single system. Information furnished by SENSORMATIC is believed to be accurate and reliable.
  • Page 3 The installation of this product should be made by qualified service personnel and should conform to all local codes. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVERS (OR BACK) . NO USER-SERVICEABLE PARTS INSIDE.

  • Page 5: Table Of Contents

    Built-In Test ... A-2 TYPICAL SYSTEM CONNECTIONS AD2078 to AD1650B ... C-2 AD2078 to AD1996... C-4 AD2078 to AD2150/AD2350 ... C-6 AD2078 with AD1981 Port Expander... C-8 AD2078 Built-in Test... C-9 INDEX TROUBLESHOOTING ... Inside back cover SPECIFICATIONS ... Back cover...

  • Page 7: Description

    TP8082 or TP8129 (UL Listed) for 120VAC or part number TP8193 for 230VAC power source) and an interconnecting Terminal Box (part number HP0082). FEATURES The AD2078 keyboard provides direct operator control of the Matrix Switching Systems operations, including: USER AND SITE IDENTIFICATION MONITOR AND CAMERA SELECTION...

  • Page 8: Connections

    1000 feet, a link using asynchronous line drivers, short-haul modems, or dial-up modems is required. Power Connection The AD2078 is supplied with a wall transformer (TP8082 or TP8129 for 120VAC, TP8193 for 230VAC) which must be connected to the HP0082. Connect the output leads from the wall transformer to pins 1 and 8 on the J1 side of the Terminal Block.

  • Page 9: Setup

    AD2078 SETUP Communication Port Type The keyboard interface can be set for either RS-232, RS-422, or RS-485 communications, depending on the type used by the system controller. The communications type is set by a DIP switch, labeled "COMMUNICATIONS SWITCH", located on the bottom of the keyboard.

  • Page 10: Keyboard Layout

    B-PAS NEXT HOLD SALVO CAMERA Figure 3 - AD2078 Keyboard Layout ENTER DISPLAY - Displays numeric data entered NUMERIC KEYPAD - Enters numeric data for keyboard CLEAR - Clears data entered AUX/LENS SECTION / MENU PROGRAMMING OFF - Turns off a specified auxiliary...

  • Page 11: Displays

    AD2078 OPERATION The following information is for general use of the AD2078 keyboard. For use with a specific switching system, refer to that system's Operating Instructions manual. Keyboard control of switching system functions is, generally, "monitor oriented". A keyboard controls functions associated with the the monitor to which it is "called".

  • Page 12: Monitor Section

    RUN sequence or when in HOLD. When a camera is called, the picture on the monitor incorporates the system on-screen display; refer to the appropriate Operating Instructions manual for details on the on-screen displays. AD2078...

  • Page 13: Aux/Lens Section

    Operating Instructions manual for information regarding the setup and use of auxiliaries. The AUXILIARY ON and OFF buttons also control the speaker on the AD2078 keyboard. Refer to the appropriate switching system's Operating Instructions manual for specific instructions on speaker control.

  • Page 15: Appendix

    APPENDIX...

  • Page 17: Built-In Test

    CAUTION - This procedure exposes critical electrical components and should be performed by qualified service personnel only. The AD2078 keyboard has a built-in test capability to help identify possible faults with the keyboard's software or hardware. The built-in test has the following test procedures: 1.
  • Page 18 A software checksum of the ROM contents is calculated for a manual comparison with a known checksum value. The known checksum value is printed on a label on the AD2078 microprocessor, visible from the bottom of the unit, beside the TEST SWITCH button.

  • Page 19: Typical System Connections

    TYPICAL SYSTEM CONNECTIONS...

  • Page 21: Typical System Connections Ad2078 To Ad1650B

    Connection shown where distances between keyboard and AD1650B are less than seven feet AD2078 Jumper wires * XMIT Keyboard System JJ0007 Cable ** MONITOR Items supplied with AD2078 keyboard **Items supplied with AD1650B system HP0082 TERMINAL BLOCK * Wall Transformer * MONITOR MONITOR MONITOR...
  • Page 22 AD1650B are over seven feet AD2078 XMIT HP0082 TERMINAL BLOCK * JJ0007 Cable ** MONITOR Items supplied with AD2078 keyboard **Items supplied with AD1650B system AD2078 TO AD1650B 3-wire, shielded Belden 8770, or equivalent HP0047 TERMINAL BLOCK **...

  • Page 23: Ad2078 To Ad1996

    DATA LINE Connection shown where distances between keyboard and AD1996 controller are less than seven feet AD2078 XMIT Keyboard PORTS Items supplied with AD2078 keyboard **Items supplied with AD1996 system Jumper wires HP0082 TERMINAL BLOCK * System JJ0007 Cable **...
  • Page 24 AD2078 XMIT HP0082 TERMINAL BLOCK * JJ0007 Cable ** PORTS Items supplied with AD2078 keyboard **Items supplied with AD1996 system AD2078 TO AD1996 CPU Connection shown where distances between keyboard and AD1996 are over seven feet 3-wire, shielded Belden 8770,...

  • Page 25: Ad2078 To Ad2150/Ad2350

    JJ0007 Cable * CAMERAS Connection shown where distances between keyboard and AD2150/2350 are less than seven feet AD2078 XMIT Keyboard Items supplied with AD2078 keyboard **Items supplied with AD2150/2350 system Jumper wires HP0082 TERMINAL BLOCK * System JJ0007 Cable **...
  • Page 26 Connection shown where distances between keyboard and AD2150/2350 are over seven feet AD2078 XMIT HP0082 TERMINAL BLOCK * Items supplied with AD2078 keyboard **Items supplied with AD2150/2350 system AD2078 TO AD2150/2350 3-wire, shielded Belden 8770, or equivalent HP0047 TERMINAL BLOCK **...

  • Page 27: Ad2078 With Ad1981 Port Expander

    TYPICAL SYSTEM CONNECTIONS AD2078 with AD1981 Port Expander JJ0007 J1 J2 DATA LINE NOTE: AD1996 shown for illustration, any controller with RS-232 ports can be controlled from AD2078 via AD1981 Port Expander AD2078 HP0082 PORTS AD2078 JJ0007 HP0082 J1 J2...

  • Page 28: Built-In Test Connection

    JJ0007 Cable TYPICAL SYSTEM CONNECTIONS Built-in Test Connection AD2078 Self-Test Jumper Connection XMIT HP0082 TERMINAL Keyboard BLOCK Wall Transformer...

  • Page 29: Index

    INDEX...
  • Page 31 Keyboard Layout ......4 Operation (see also OPERATION - STATUS) ..5 TROUBLESHOOTING ... . . Inside Back Cover AD2078...

  • Page 33: Troubleshooting

    AD2078 PROBLEM No power to keyboard Keyboard has power but does not respond to any buttons pressed Keyboard responds to some, but not all buttons Cannot access alternate (menu) functions of AUX/LENS Section buttons Keyboard LEDs not visible No sound from keyboard speaker...

  • Page 35: Declaration Of Conformity

    Declaration of Conformity Manufacturer: Sensormatic CCTV Systems Division Manufacturer’s Address: Sensormatic CCTV Systems Division 1 Blue Hill Plaza Pearl River, New York, 10965 USA Sensormatic Electronics Corporation State Rd. 110 Km 5.8 Poblado San Antonio Aguadilla P.R. 00690 Declares, that the product(s) listed below: Name/Type: Model Number: The system keyboard is provided with external power supply, Model TP8193...

  • Page 36: Specifications

    Weight: 5.5 lbs (2.55 kg) OP2078F November, 1996 9 VAC, 50/60 Hz. 5 W 9 VAC, 50/60 Hz, 5 W An American Dynamics Product Designed and built by Sensormatic CCTV Systems Division One Blue Hill Plaza Pearl River, New York, 10965...
