Apollo XP95 Quick Start Manual

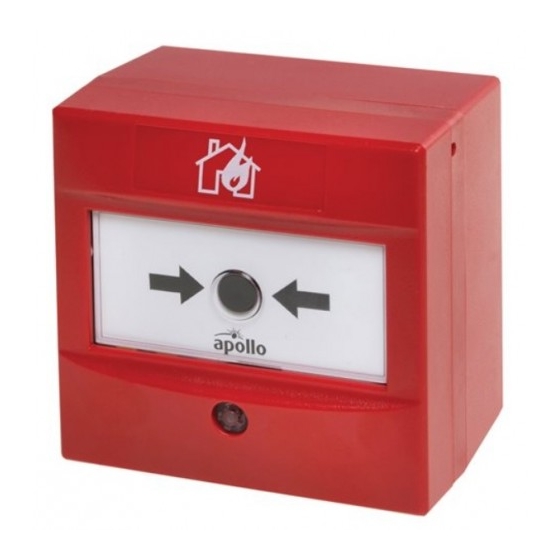

XP95 Manual Call Point
®
FUNCTION
The XP95 Manual Call point has been designed to
operate on a loop of intelligent fire detection devices
and when activated interrupts the polling cycle for
a very fast response.
The XP95 Manual Call Point is intended for indoor
applications and is available in two versions, with
and without isolator.
FEATURES
The XP95 Manual Call Points come complete with
the following key features:
• Resettable element
• Easy access, front reset mechanism
• Front facing addressing
• E-Z fit connector system for installation
• Ergonomic reset key and keyring hole
• EN54-11 Approved
• 180° viewable LED
• Continunity link for cable insulation testing
PROTOCOL COMPATIBILITY
The XP95 Manual Call Point will operate only with
control equipment using the Apollo digital protocol.
MANAGEMENT
SYSTEMS
Assessed to ISO 9001:2008 Certificate No. 010
LPCB Cert No. 010 See www.RedBookLive.com
36 Brookside Road, Havant,
Hampshire, PO9 1JR, UK.
MANAGEMENT
SYSTEMS
Overseas offices: America China Germany
Assessed to ISO 14001:2004
Certificate number EMS 010
XP95 Manual Call Point with Isolator
XP95 Manual Call Point
ELECTRICAL CONSIDERATION
The XP95 Manual Call Point is loop powered and
operates at 17-28V DC for all variants.
MECHANICAL CONSTRUCTION
The component parts of the call point are moulded
in a robust fire retardant polycarbonate.
OPERATING PRINCIPLES
The address of each call point is set at the
commissioning stage by means of a seven-segment
DIL switch. The address switch is accessible without
removing the call point from the mounting surface.
Tel: +44 (0)23 9249 2412
Fax: +44 (0)23 9249 2754
PP2453/2013/Issue 1
55200-908
55200-905
0832
Email: sales@apollo-fire.com
Web: www.apollo-fire.co.uk
