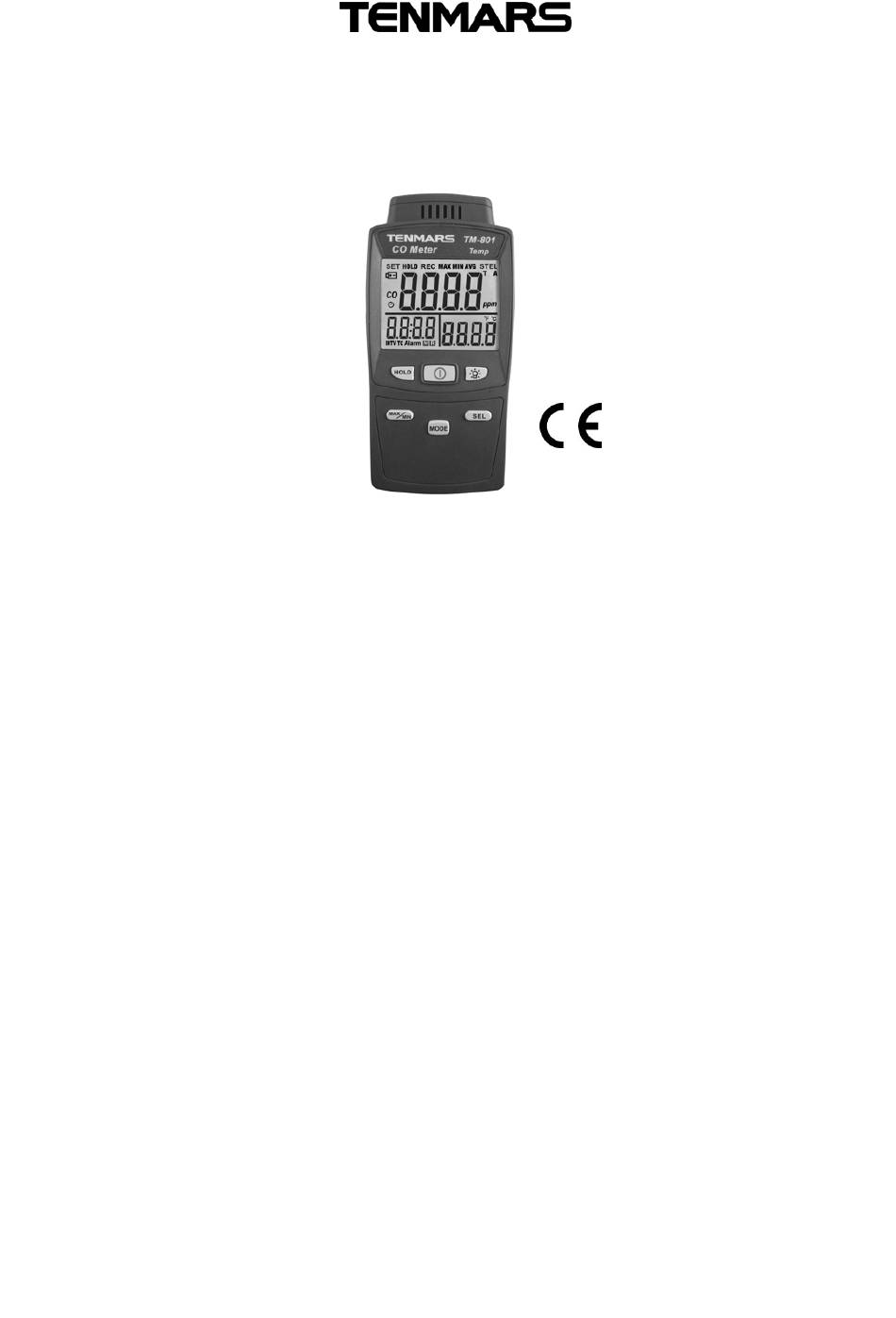

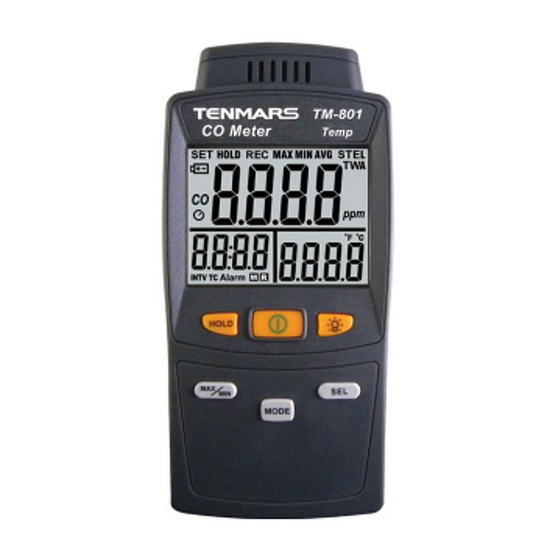

- Page 1 Carbon Monoxide Meter TM-801 / TM-802 User’s Manual HB2TM8010002 TENMARS ELECTRONICS CO., LTD...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE ............1 GENERAL DESCRIPTION ........ 1 TECHNICAL SPECIFICATIONS......2 CO LEVELS AND STANDARDS......4 INSTRUMENT DESCRIPTION......6 LCD DESCRIPTION .......... 7 POWER ON/OFF..........8 AUTO POWER OFF .......... 8 BACKLIGHT ............8 CHANGE THE TEMP UNIT ....... 8 DATA HOLD ............ -
Page 4: Preface
TM-801/TM-802 1. PREFACE Thank you for purchasing our product. Please, read the operating instructions in details before you use this CO meter, so you will operate the meter correctly. This meter can be operated in industry and home. WARNING Non-compliance warning and/or... -
Page 5: Technical Specifications
TM-801/TM-802 reading.(TM-802) Choose the recording interval.(TM-802) 3. TECHNICAL SPECIFICATIONS 3.1. Characteristics Accuracy is indicated as [% of reading +ppm]. It is referred to the following reference conditions: 23°C ± 5°C with RH <75%. ※ Carbon monoxide Range 0 ~ 1000ppm Resolution ±1ppm... - Page 6 TM-801/TM-802 3.2. General data 4 dgt LCD with maximum 1000 counts. 60mm(W)x 47mm(L) monochrome LCD and backlight. Sample rate:1 times/second Dimension: 156×73×35mm(LxWxH). Weight: approx 250g (Batteries not included). Power Supply : UM-4(AAA)1.5V× 6 PCS or AC100~240V DC9V/0.5A(9mm) Adaptor.
-
Page 7: Co Levels And Standards
TM-801/TM-802 EMC : This test was designed in accordance with EMC Standards in force and its compatibility has been tested in accordance with EN61326-1(2006). 4. CO LEVELS AND STANDARDS Carbon monoxide Inspiration Symptoms and applicable content in the air... - Page 8 TM-801/TM-802 Headache, dizziness, 0.32%(3200 ppm) 5~10 min vomiting and will be dead in 30 minutes. Headache, dizziness and 0.64%(6400 ppm) 1~2 min will be dead within 10 to 15 minutes 1.28%(12800 ppm) 1~3 min Will die.
-
Page 9: Instrument Description
TM-801/TM-802 5. INSTRUMENT DESCRIPTION 1. HOLD Button 10. CO SENSOR 2. Power Button 11. USB 3. MAX/MIN/AVG 12. DC POWER Button 4. MODE Button 13. HOLDER 5. Backlight Button 14. Battery Holder 6. SEL Button 15. Battery Cover 7. LCD 8. -
Page 10: Lcd Description
TM-801/TM-802 6. LCD DESCRIPTION 1. SET symbol 11. Temperature unit 2. HOLD symbol 12. Temperature Reading 3. REC symbol 13. Reading symbol 4. MAX symbol 14. Memory symbol 5. MIN symbol 15. Alarm symbol 6. AVG symbol 16. Time constant symbol 7. -
Page 11: Power On/Off
TM-801/TM-802 7. POWER ON/OFF Press button to turn on or turn off the meter. It will be unable to turn off under setting up alarm, and correction. 8. AUTO POWER OFF The duration of auto power off time is 15 minutes. -
Page 12: Data Hold
TM-801/TM-802 11. DATA HOLD Freezes the reading present on the LCD screen at the moment the button is pressed. 12. CO ALARM SETTING Hold and press button for more than 2 seconds to enter into the alarm setting mode, press button to choose and press button to turn on(A-on) or turn off(A-oF) the alarm. -
Page 13: Maximum/Minimum/Average
TM-801/TM-802 13. MAXIMUM/MINIMUM/AVERAGE Press button simultaneously Lockup data maximum and minimum and average value of measuring data. Press the “ ” button for more than 2 seconds to disable this feature. 14. CHANGE SETL OR TWA(TM-802) ※ ※ Press button to change SETL or TWA values. -
Page 14: Calibration
TM-801/TM-802 button to exit the logger storage interval setting mode. The Down-left LCD will display “L-on” or “L-oF”. Logger enable/disable setting: Press button to enable or disable logger(L-on or L-oF), press button to exit logger setting . Start logging if logger mode is on, the... - Page 15 TM-801/TM-802 ※ In the calibration, must away from the environment or equipment with electromagnetic waves. 0 ppm Calibration The meter is running 0 ppm calibration as default. Put the meter in an area free of CO and enter the calibration mode. It calibrates automatically.
-
Page 16: Precautions
TM-801/TM-802 ※ Check if the reading meets calibration value. If it does, the calibration is not, repeat the procedure. 17. PRECAUTIONS Keep the meter away from electromagnetic interference (EMI) which may cause erratic readings. Recovering time is required when meter exposed to high level CO. -
Page 17: External Dc Power
TM-801/TM-802 20. EXTERNAL DC POWER External AC to DC adapter : Voltage 9 V (8~14 Max). Socket :Pin positive, Ground casing negative. External Diameter 5.5mm ;Internal Diameter 2.1mm. 21. SAFETY AND MAINTENANCE STANDARDS Do not put this device in direct sunlight or where it is hot and/or damp. -
Page 18: Battery Replacement
TM-801/TM-802 22. BATTERY REPLACEMENT WARNING If the LCD displays “ ”symbol, please replace the battery immediately. Turn off the power and unplug all cables, remove the battery and replace into the new battery. Please use the correct specification of the battery, and correctly installed in the battery holder. - Page 19 TM-801/TM-802...
- Page 20 Solar power meter, Radiation meter, Clamp meter, Multimeter, Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com http: //www.tenmars.com...
