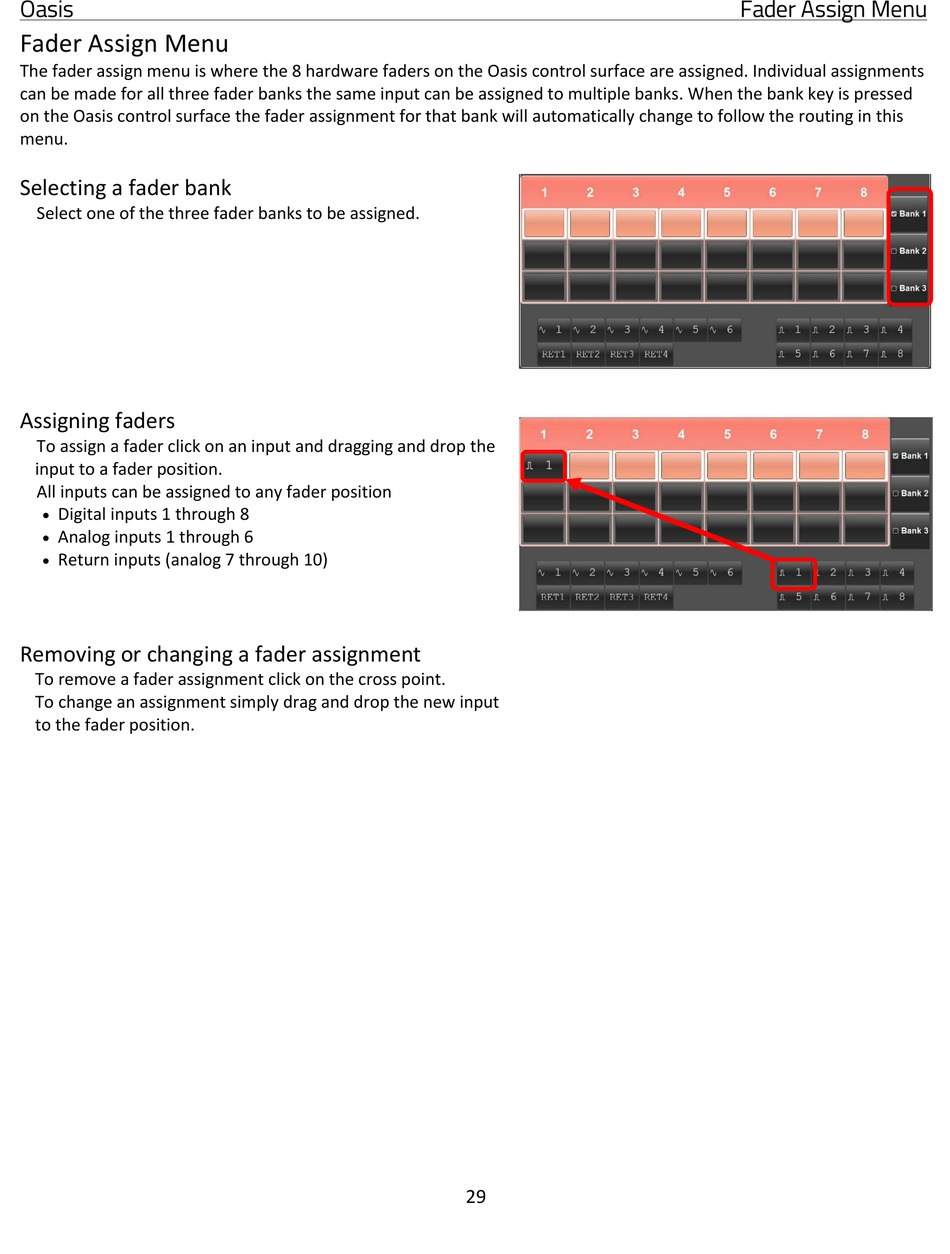

Fader Assign Menu

The fader assign menu is where the 8 hardware faders on the Oasis control surface are assigned. Individual assignments
can be made for all three fader banks the same input can be assigned to multiple banks. When the bank key is pressed
on the Oasis control surface the fader assignment for that bank will automatically change to follow the routing in this
menu.

Selecting a fader bank

Select one of the three fader banks to be assigned.

Assigning faders

To assign a fader click on an input and dragging and drop the
input to a fader position.
All inputs can be assigned to any fader position

Digital inputs 1 through 8

Analog inputs 1 through 6

Return inputs (analog 7 through 10)

Removing or changing a fader assignment

To remove a fader assignment click on the cross point.
To change an assignment simply drag and drop the new input
to the fader position.
