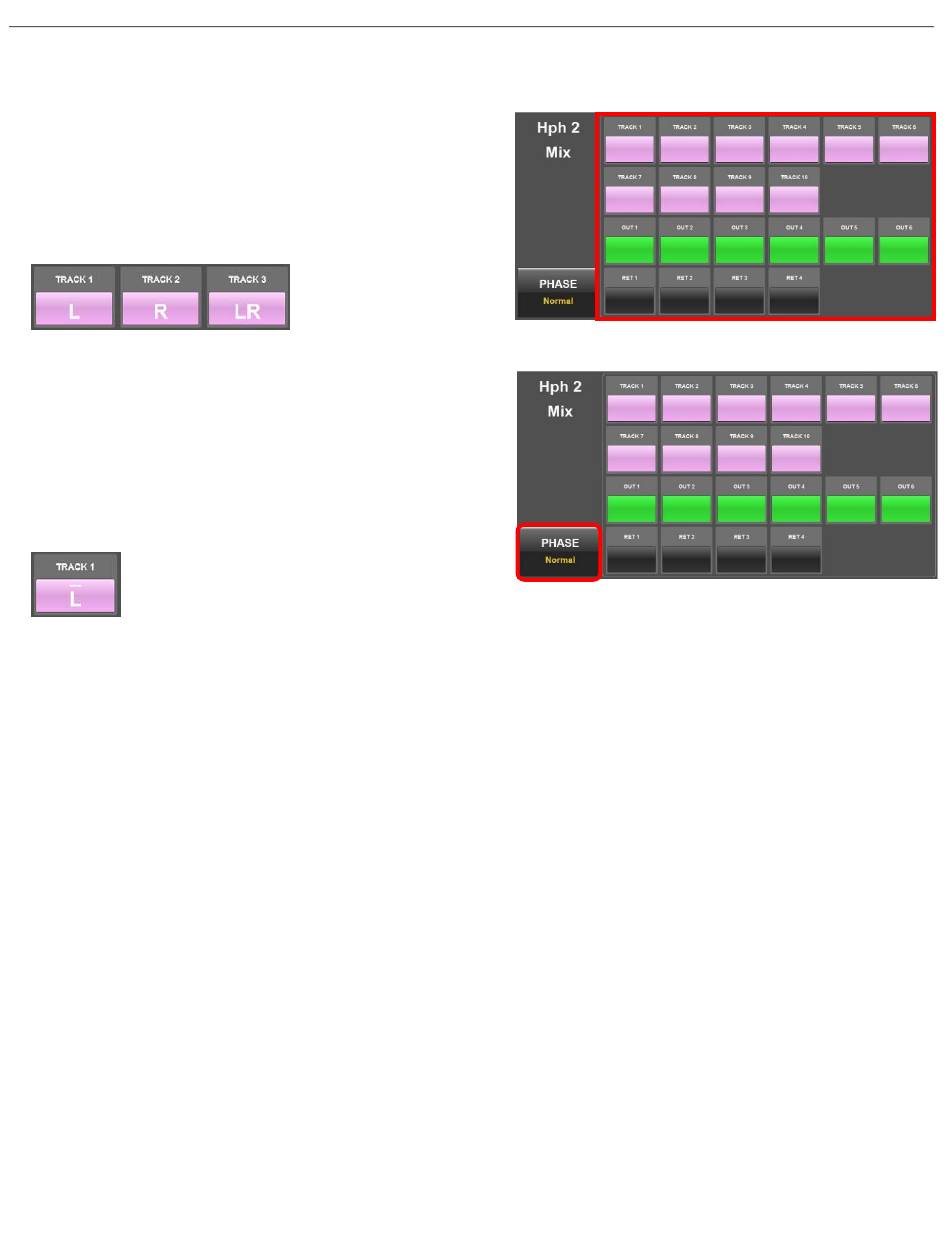

Headphone 2 Mix Menu

The headphone mix menu assigns what is routed to the headphone 2 output.

Assigning audio to headphone 2

Choose which card tracks, output buses, return inputs to
assign to the headphone 2 output. Clicking on the selection
will cycle through and assign it to L (left ear), R (right ear),
LR (both left and right ear). Multiple items can be routed
simultaneously.

Inverting phase

Select the key to toggle between normal and inverted
PHASE
phase. When a source is select its phase is set to follow the
phase key setting. So if the phase is set to normal all sources
selected will have normal phase and if the phase is set to
inverted all sources selected will have its phase inverted.
When the phase is inverted on a white line will be displayed
across top of the source.
