Summary of Contents for Devine Onyx 15SXA

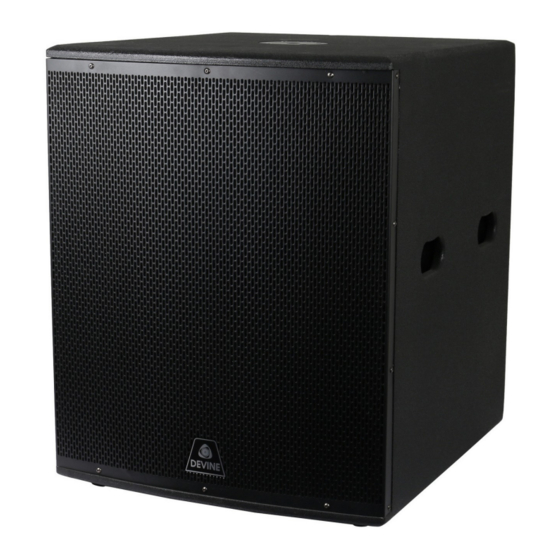

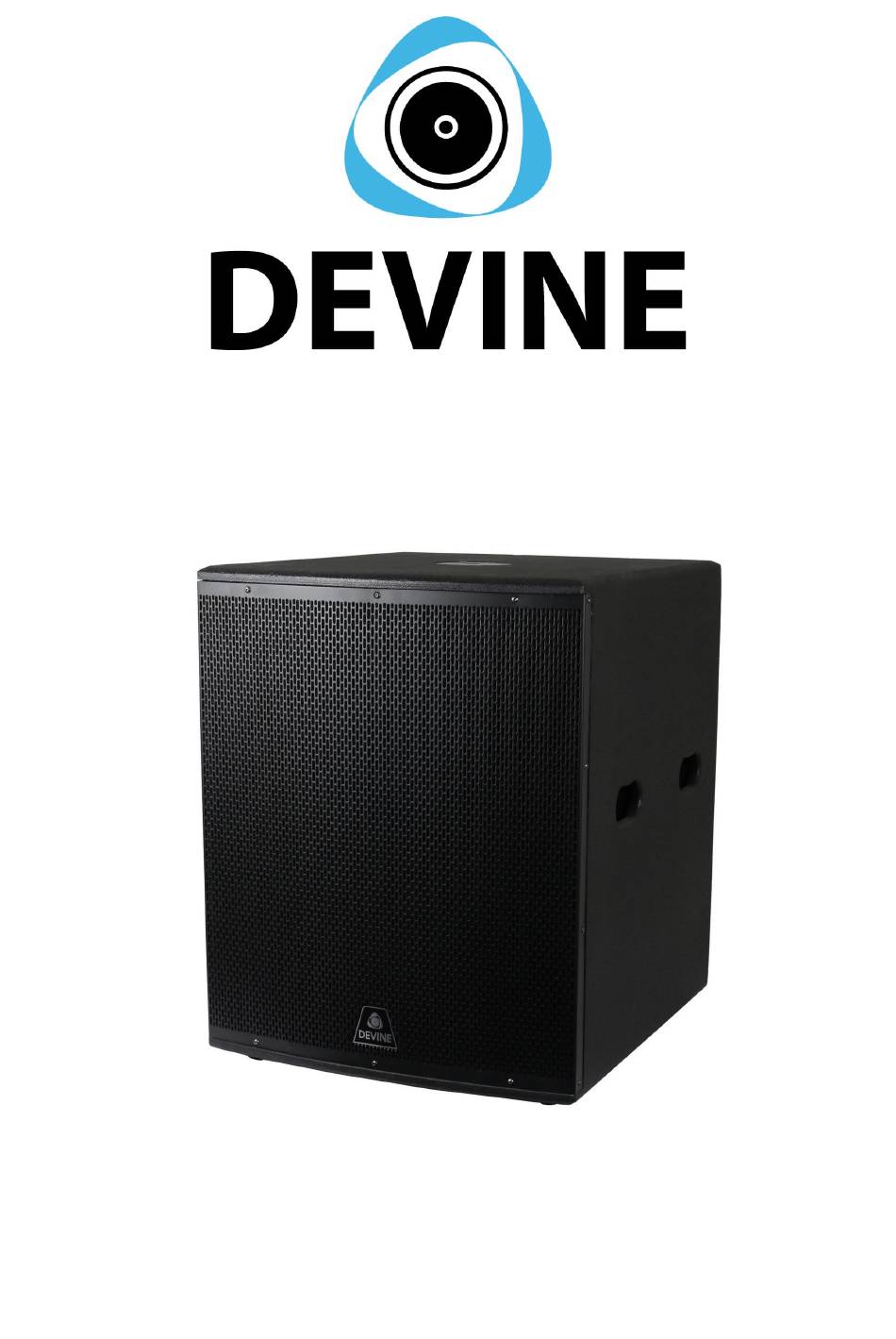

- Page 1 Onyx 15SXA / 18SXA Active Subwoofer with Passive Outputs User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:11-01-2020 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine Onyx SXA active subwoofer. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the parts and accessories listed below under 'box contents' are included in the package.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Overview and Operation of the Device Devine Onyx 15SXA/18SXA 1. Left and right volume control with peak indicator 2. Line combo inputs (6.35mm TRS jack / 3-pin XLR) 3. Link outputs (balanced 3-pin XLR) 4. Subwoofer volume control with peak-indicator 5.
-
Page 6: Operating The Device
Use these units with care and keep the volume at a reasonable level when possible. The volume should ideally be set to a comfortable level when listening to music. Devine cannot be held liable for any injuries or damage resulting from the use of this product. General Use Housing This Onyx subwoofer has a housing made of wood that’s reinforced with bracing on the inside for an overall... -
Page 7: Audio Technology
Devine Onyx subwoofers are fitted with a flange with an M20 screw thread into which a distance rod can be securely screwed to form a stable base on which a full-range speaker (satellite speaker) can be mounted. Using this kind of set-up saves the space that a normal speaker stand would take up. Since the weight of a subwoofer is usually greater than that of a standard speaker and has a larger top surface, it provides a more stable base than a stand. - Page 8 needed. Microphones are usually directionally sensitive and as such, will not pick up any sound that’s directed at its sides or from behind. Never hold a microphone in front of the speakers since this will cause a feedback loop and result in a very high and piercing tone.
- Page 9 Subwoofer Troubleshooting Guide If you have a problem with your subwoofer, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common subwoofer problems, but it does not and cannot cover every eventuality.
- Page 10 Connected device is transferring a Check if any of the connected distorted signal source devices are transferring a distorted signal and turn down the volume on the offending device if necessary. Volume control is too loud Turn the volume down The tone controls for treble and/or Turn the tone controls back to 12 bass are too high or too low.
-
Page 11: Specifications
Connections Mixer Section: – combo line inputs (6.35mm TRS jack and 3P XLR) – link outputs via balanced 3P XLR Technical specifications per model: Model Onyx 15SXA Onyx 18SXA Frequency Range 40 Hz – 250 Hz 30 Hz – 250 Hz...
