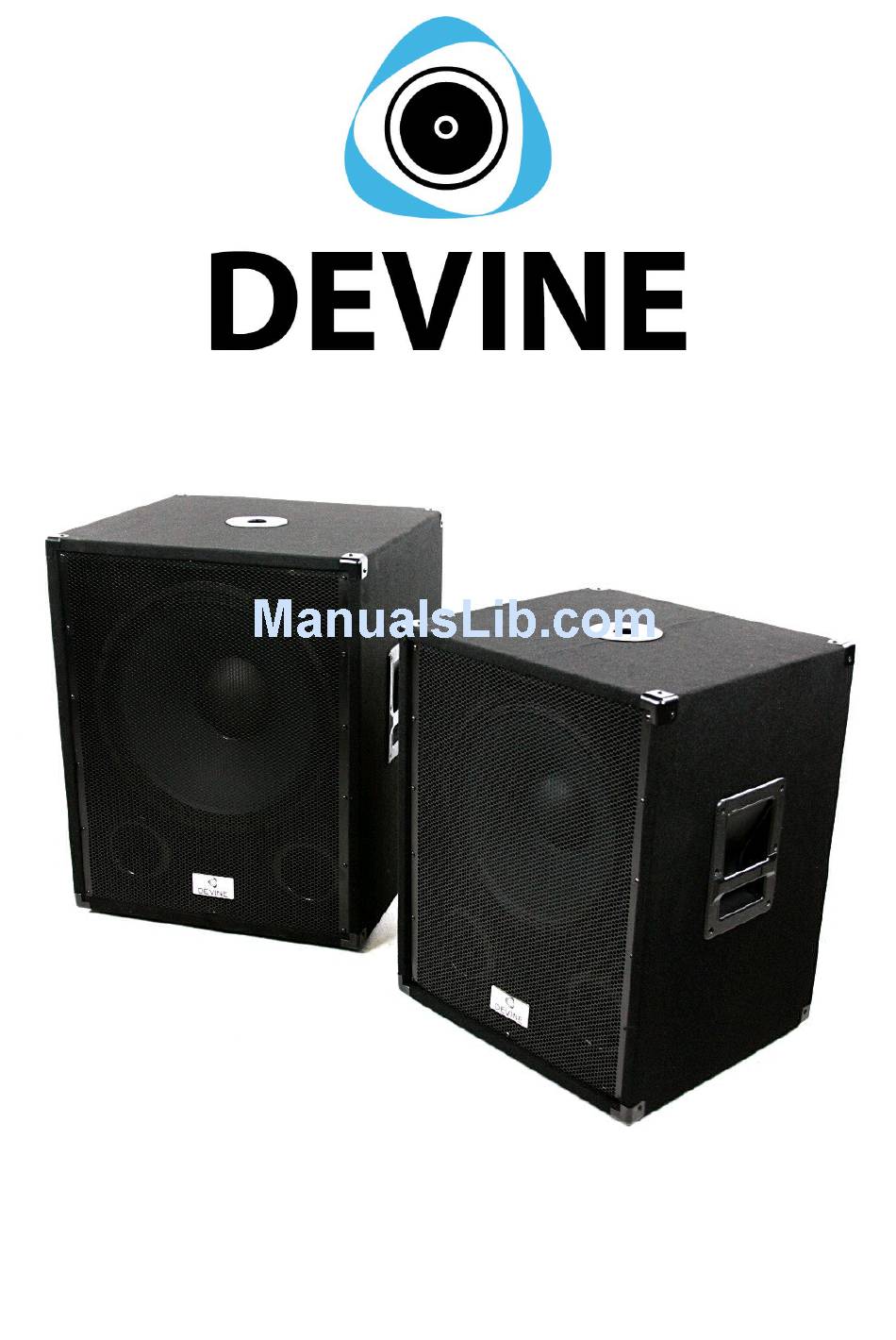

B-series powered subwoofers (B115A / B118A) User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 04-12-2013 RV Revision date + author initials: 25-02-2014 RV... -
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable items. - Always disconnect the device when it is not in use for a longer period of time, when servicing is needed or when the device needs cleaning.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartiment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 04-12-2013 RV Revision date + author initials: 25-02-2014 RV...
- Page 5 Guidelines for speakers WARNING! This loudspeaker is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels for a longer period of time.

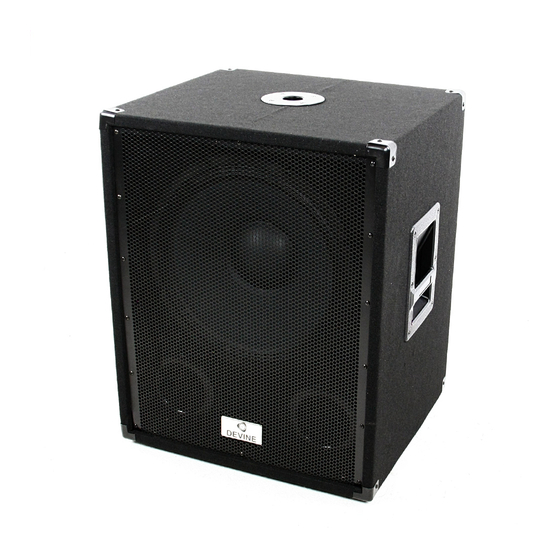

- Page 6 Introduction Thank you for purchasing this powered Devine B-series subwoofer. To make sure you use this loudspeaker as intended and for optimal performance and protection of this speaker, Devine recommends you read this user manual. Box contents: 1x B-series active subwoofer (B115A, B118A)
- Page 7 Both the B115A and the B118A subwoofers are perfect for producing low frequencies, also known as bass. The B115A produces a sound that accentuates kicks and gives a bass-punch, while the B118A has a larger woofer and is more capable of reproducing the lowest bass sounds, providing a deep, warm bass. The B- series subwoofers are equipped with their own amplifier module, which eliminates the need of an external amplifier.
- Page 8 Power amplifier module section The built-in amplifier module, plus the several connections and controls, are situated at the rear of the subwoofer. The controls and connections are defined below: 1. Main volume control 8. Satellite powered output L 2. Subwoofer volume control 9.
- Page 9 - The signal inputs (XLR and 6.35mm jack) are linked directly. This means that the non-used inputs can be used as signal through-outputs. Therefore it is possible to send the signal to an extra Devine B115A and B118 subwoofer without losing the stereo signal distribution. Devine does not recommend linking more than two subwoofers at once, as this might have bad influence on the line signal quality.
- Page 10 Speaker set-up possibilities and compability The Devine B-series subwoofers are developed in addition to the Trono-series. These loudspeakers are a perfect match for the B-series subwoofers. Devine recommends: B115A subwoofer match – 2x Devine Trono 10 or Devine Trono 12 satellites (or any passive 10 or 12 inch passive satellite speakers with a minimum impedance of 8 Ohms) B118A subwoofer match –...
- Page 11 Set-up examples: (Devine Trono speakers and cables not included) Devine setup 1 Devine setup 2 (2x Trono 10/12/15, 1x B115A/B118A) (4x Trono 10/12/15, 2x B115A/B118A) Devine setup 3 Devine setup 4 (2x Trono 10/12/15, 2x B115A/B118A) (2x Trono 10/12/15, 4x B115A/B118A) Any information and illustrations shown in this user manual are subject to change without further notice.
-
Page 12: Technical Specifications
- robust, lightweight construction - bass-reflex cabinet - protective grill - 15 inch woofer with 3 inch voice coil and 80oz magnet (B115A), 18 inch woofer with 4 inch voice coil and 100oz magnet (B118A) - handles on the sides...
